Strategic Overview: MT190EN02 V.Y in the 2026 Industrial Automation Landscape
The Innolux MT190EN02 V.Y — a 19-inch SXGA (1280×1024) industrial-grade TFT LCD panel — has firmly established itself as a go-to display solution for HMI terminals, CNC operator stations, process control monitors, and factory-floor visualization systems in 2026. As manufacturing enterprises accelerate their IT/OT convergence roadmaps, the reliability and optical performance of display sub-components directly impact operator efficiency, downtime reduction, and overall equipment effectiveness (OEE).
With 50,000-hour lamp life, a matte anti-glare surface optimized for harsh industrial lighting, and a proven Innolux supply chain, this panel delivers a compelling total cost of ownership (TCO) for system integrators and maintenance teams managing fleets of legacy SXGA displays. In the 2026 context — where predictive maintenance frameworks now routinely ingest display backlight health metrics — the MT190EN02 V.Y's stable luminance decay curve makes it a predictable, model-friendly asset.
Technical Specifications & Benchmarking
The MT190EN02 V.Y belongs to Innolux's mature 19-inch industrial product line. Below, we benchmark its core specifications against the broader 2026 industrial display ecosystem, highlighting where it excels and where next-generation alternatives may challenge it.
| Parameter | MT190EN02 V.Y | Legacy 19" CCFL Panel (2018) | 2026 Industrial Benchmark (19") |
|---|---|---|---|
| Diagonal Size | 19.0 inch | 19.0 inch | 19.0 ~ 21.5 inch |
| Resolution | 1280 × 1024 (SXGA) | 1280 × 1024 | 1280×1024 ~ 1920×1080 |
| Brightness | 250 cd/m² Matte | 250 ~ 300 cd/m² | 300 ~ 400 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) | 700:1 ~ 1000:1 | 1000:1 ~ 3000:1 |
| Viewing Angle | 85°/85°/80°/80° (L/R/U/D) | 70°/70°/60°/70° | ≥ 85° all directions |
| Color Depth | 16.7M (8-bit) | 16.2M (6-bit+FRC) | 16.7M (True 8-bit) |
| Backlight Type | CCFL (4 tubes) | CCFL | LED (dominant) |
| Lamp Life | 50,000 hrs (min.) | 30,000 ~ 40,000 hrs | 50,000 ~ 70,000 hrs |
| Outline Dimensions | 396 × 324 × 16.5 mm | 396 × 324 × 17~18 mm | Slim bezel ≤ 15 mm |
| Panel Weight | 2.30 kg (max.) | 2.60 kg | 1.8 ~ 2.5 kg |
| Signal Interface | LVDS (2 ch, 8-bit) | LVDS / TMDS | LVDS / eDP |
| Input Voltage | 5.0V (Typ.) | 5.0V / 12V | 3.3V ~ 12V |
| Operating Temp. | 0°C ~ +50°C | 0°C ~ +50°C | -10°C ~ +60°C |
2026 IT/OT Convergence & Integration Context
HMI Modernization Without Full Obsolescence
As factories deploy OPC UA, MQTT Sparkplug, and edge-to-cloud telemetry across their shop floors, the physical HMI display remains the last tactile meter of operator trust. The MT190EN02 V.Y slots into existing 19" SXGA cutouts and LVDS signal chains — enabling visual modernization without mechanical re-engineering. This is a critical cost lever for F&B, pharmaceutical, and heavy machining verticals where enclosure recertification is otherwise required.
Predictive Maintenance Readiness
In 2026, leading CMMS platforms (SAP PM, IBM Maximo, Fiix) ingest backlight runtime hours and luminance degradation curves to forecast panel replacement windows. The MT190EN02 V.Y's well-characterized CCFL decay profile — approximately 15–20% brightness loss at 40,000 hours — allows maintenance planners to batch replacements during scheduled PM events rather than reacting to operator-reported dimming. This shifts the panel from a reactive consumable to a planned-maintenance asset.

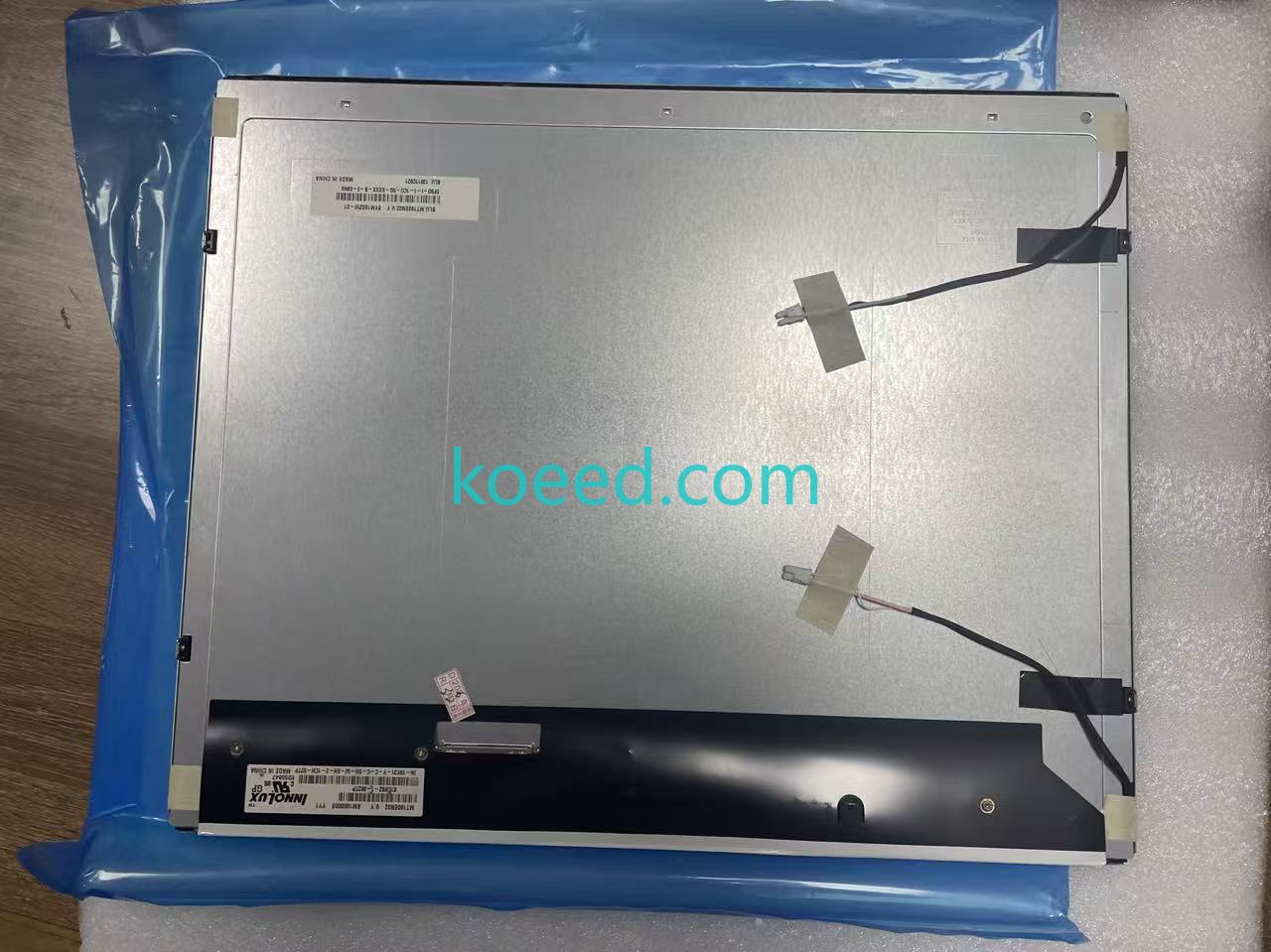

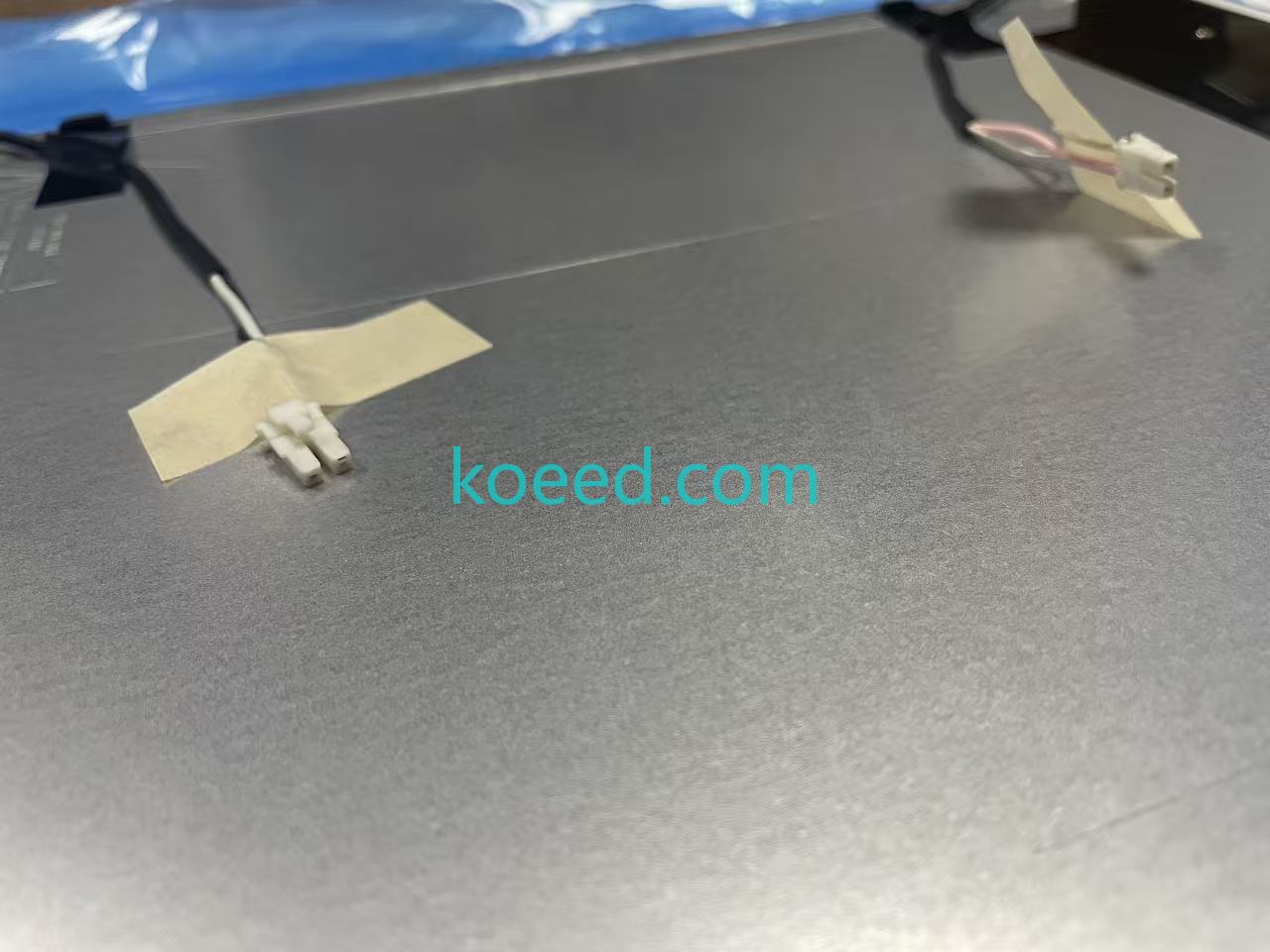

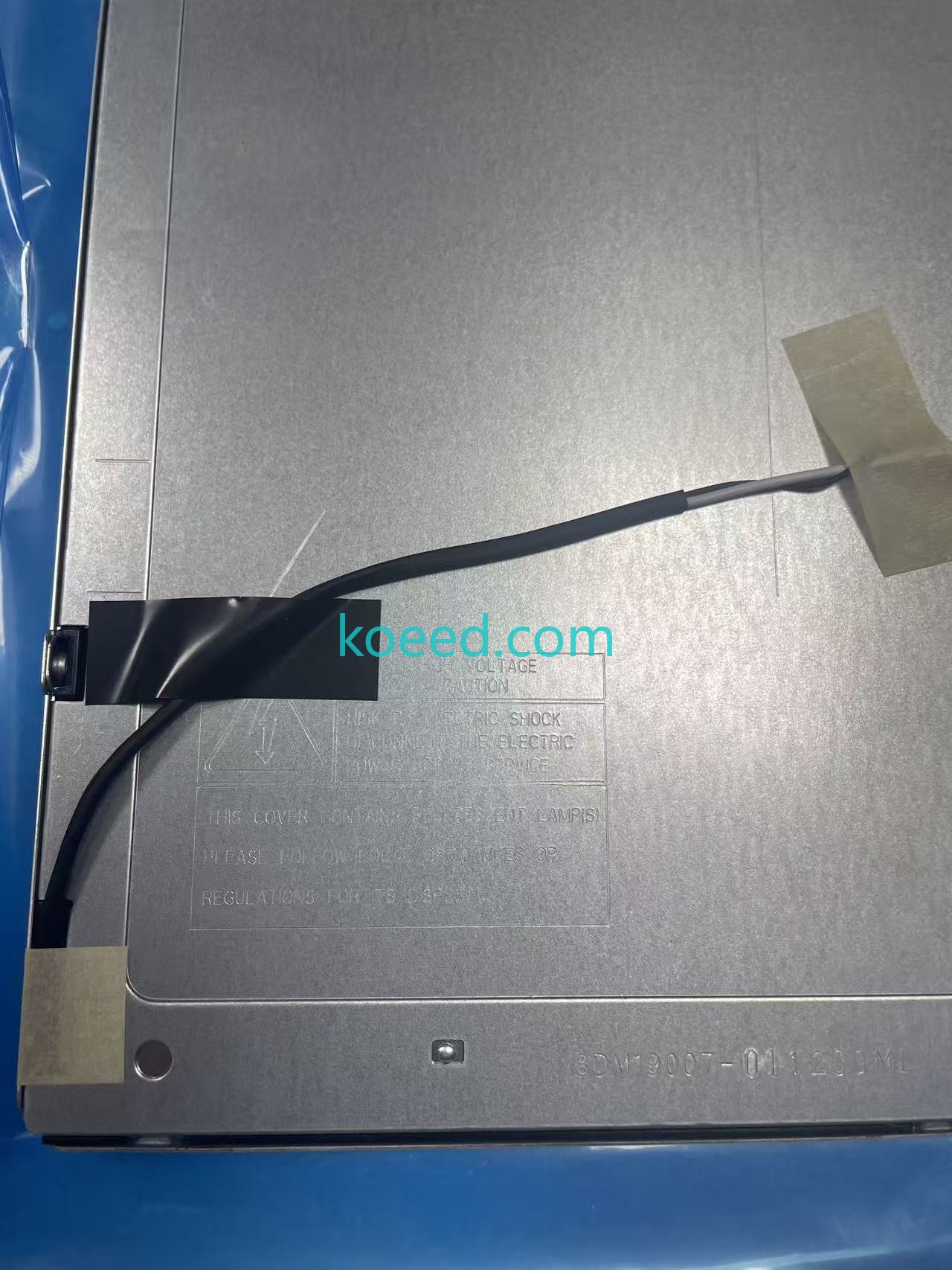

Visual Inspection Gallery — MT190EN02 V.Y

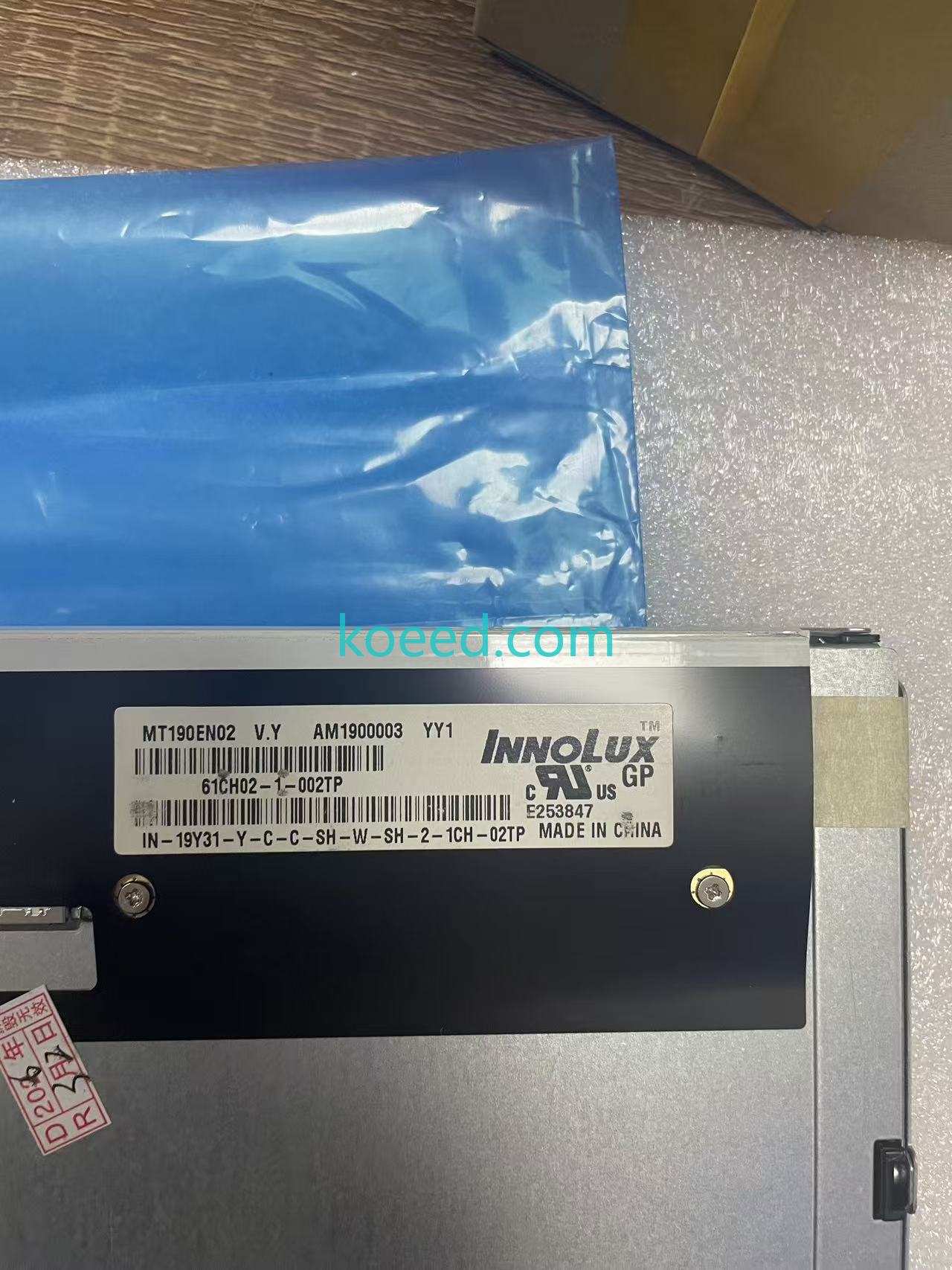

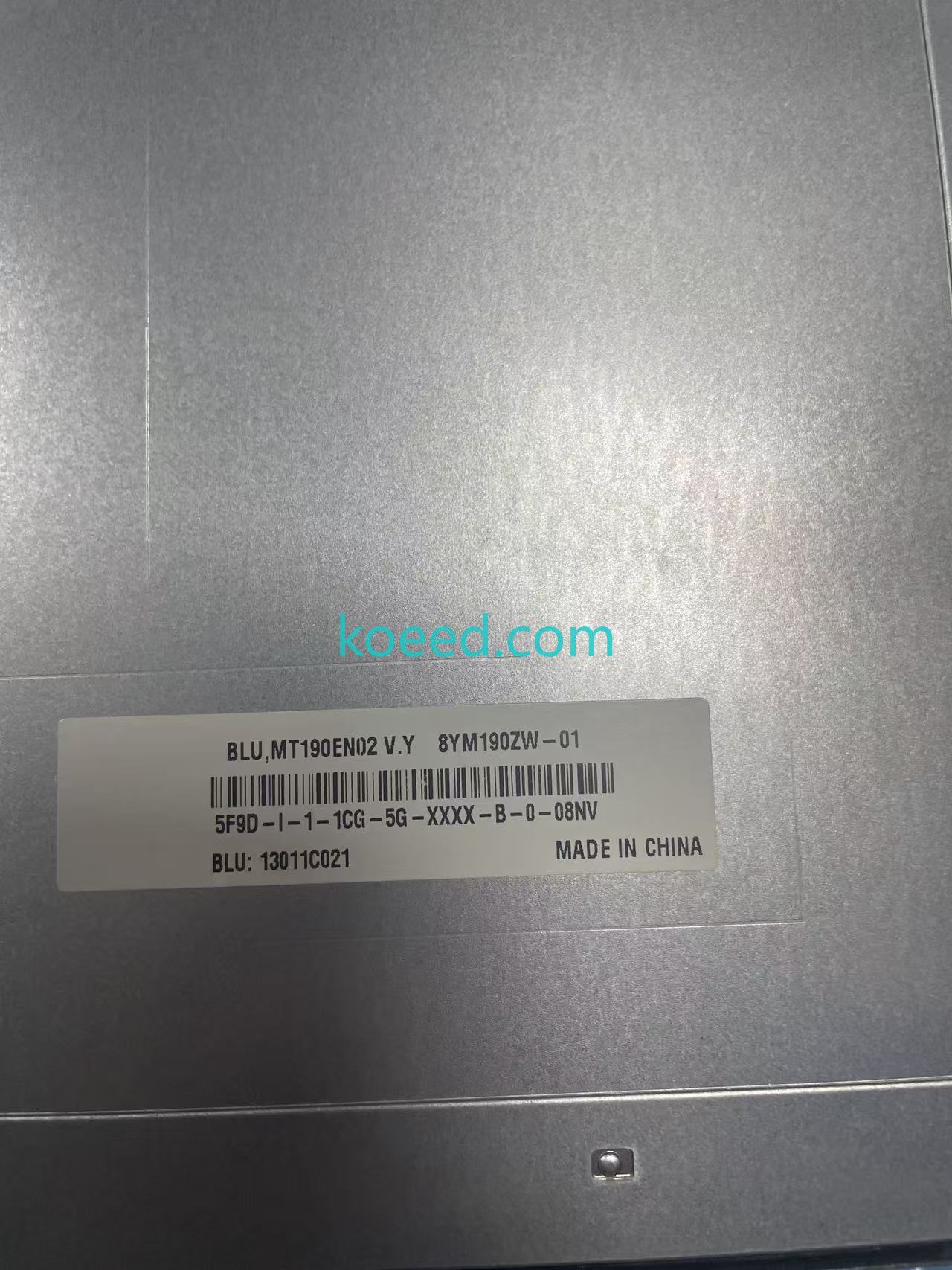

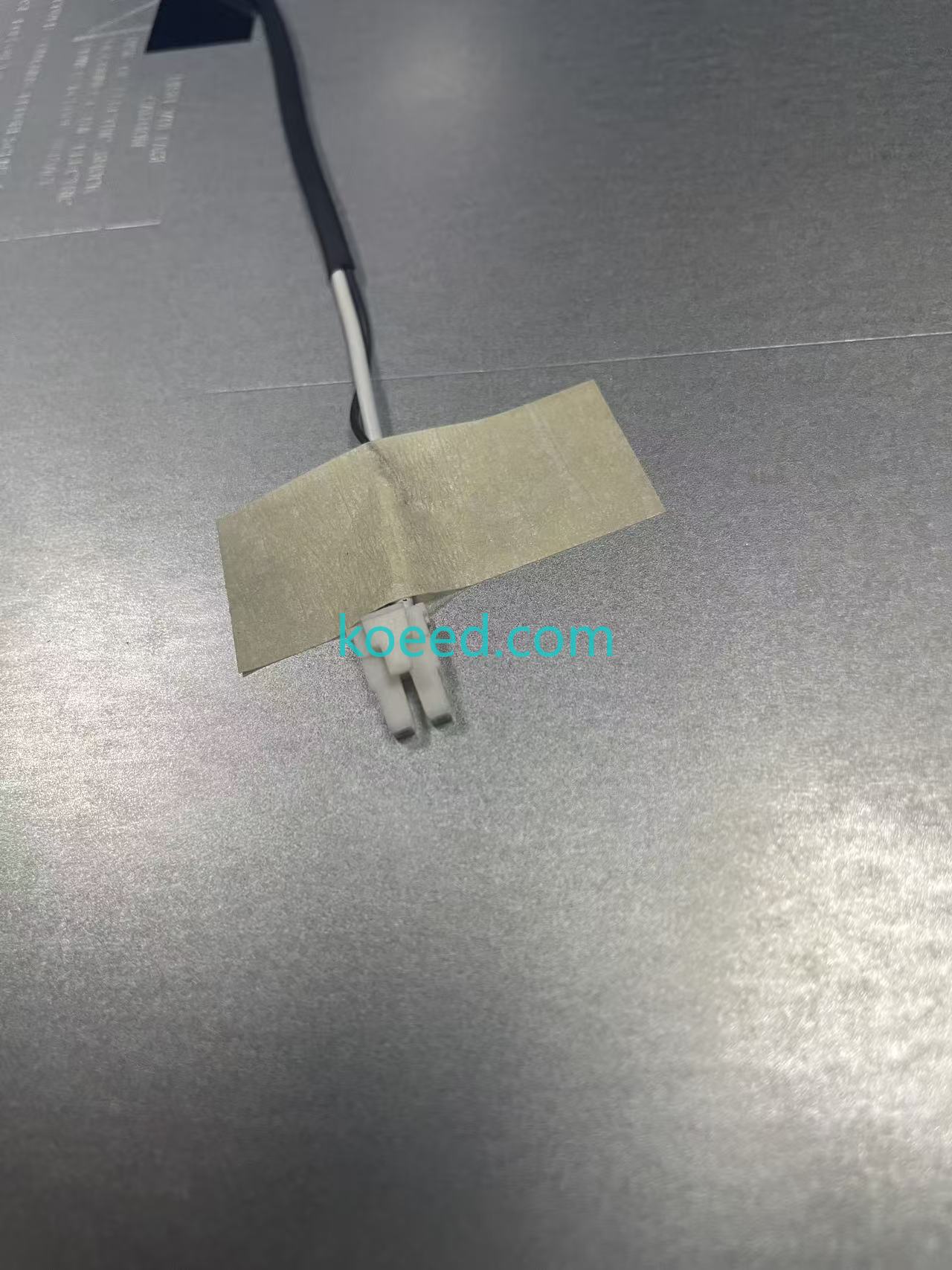

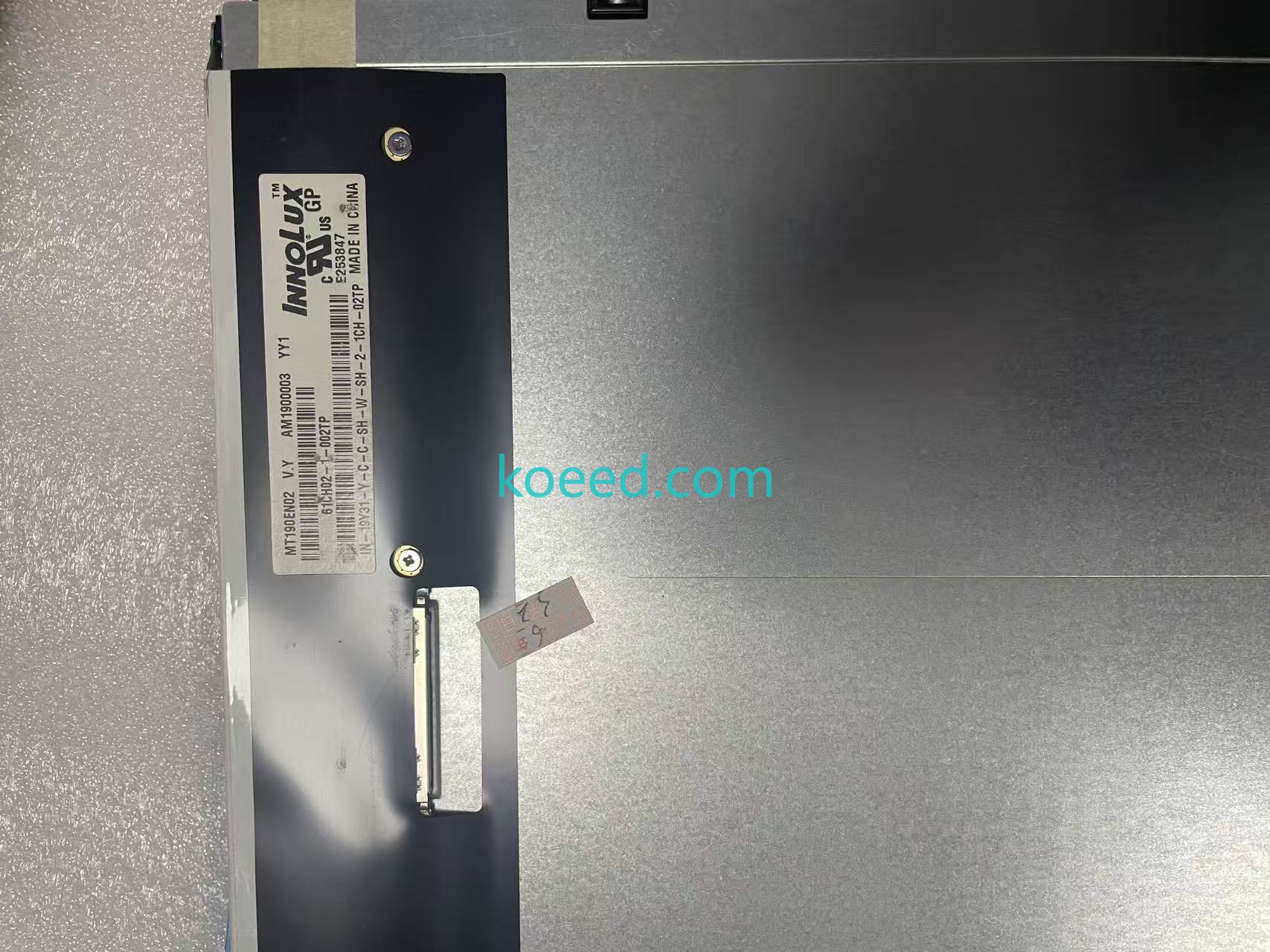

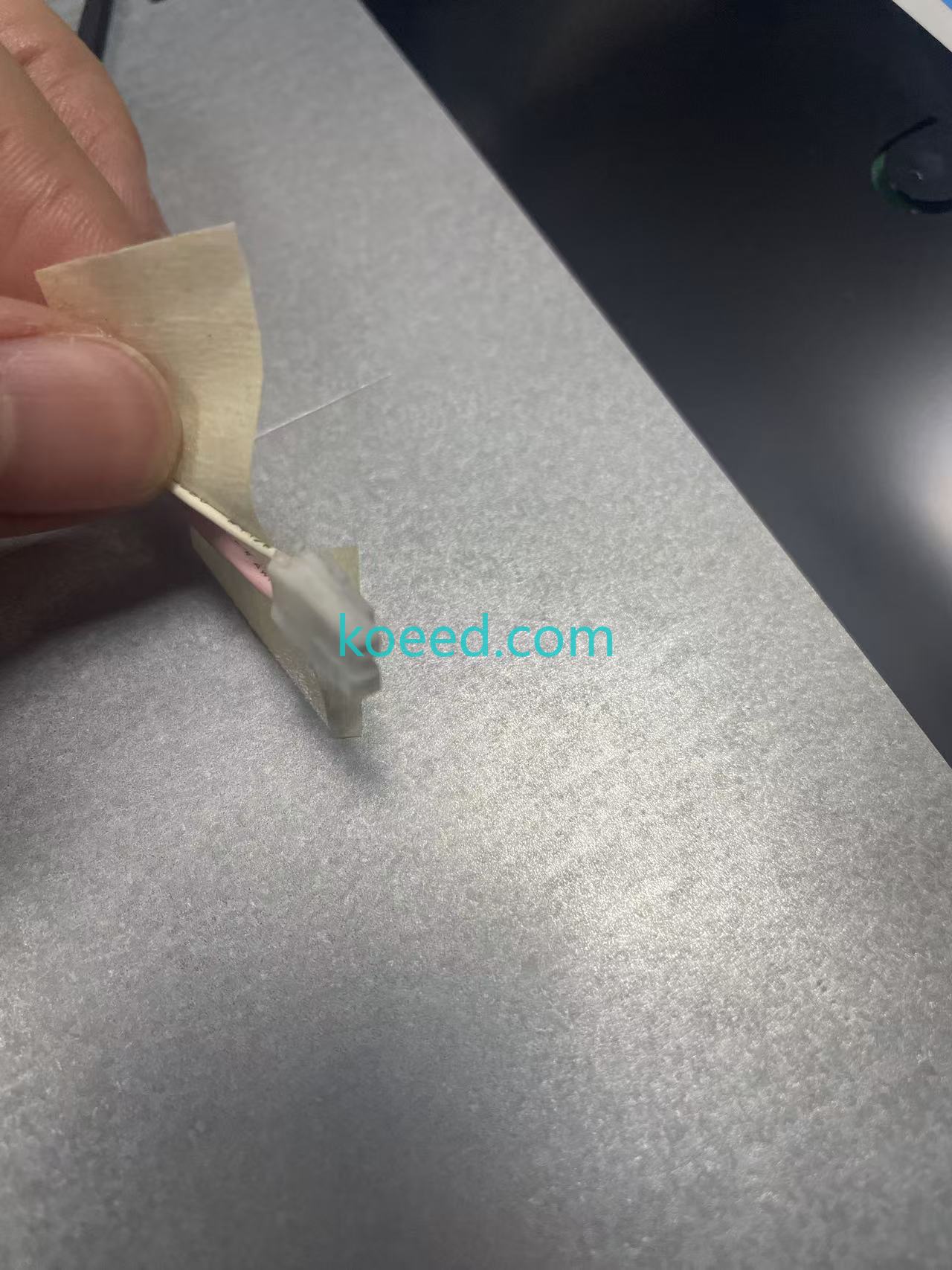

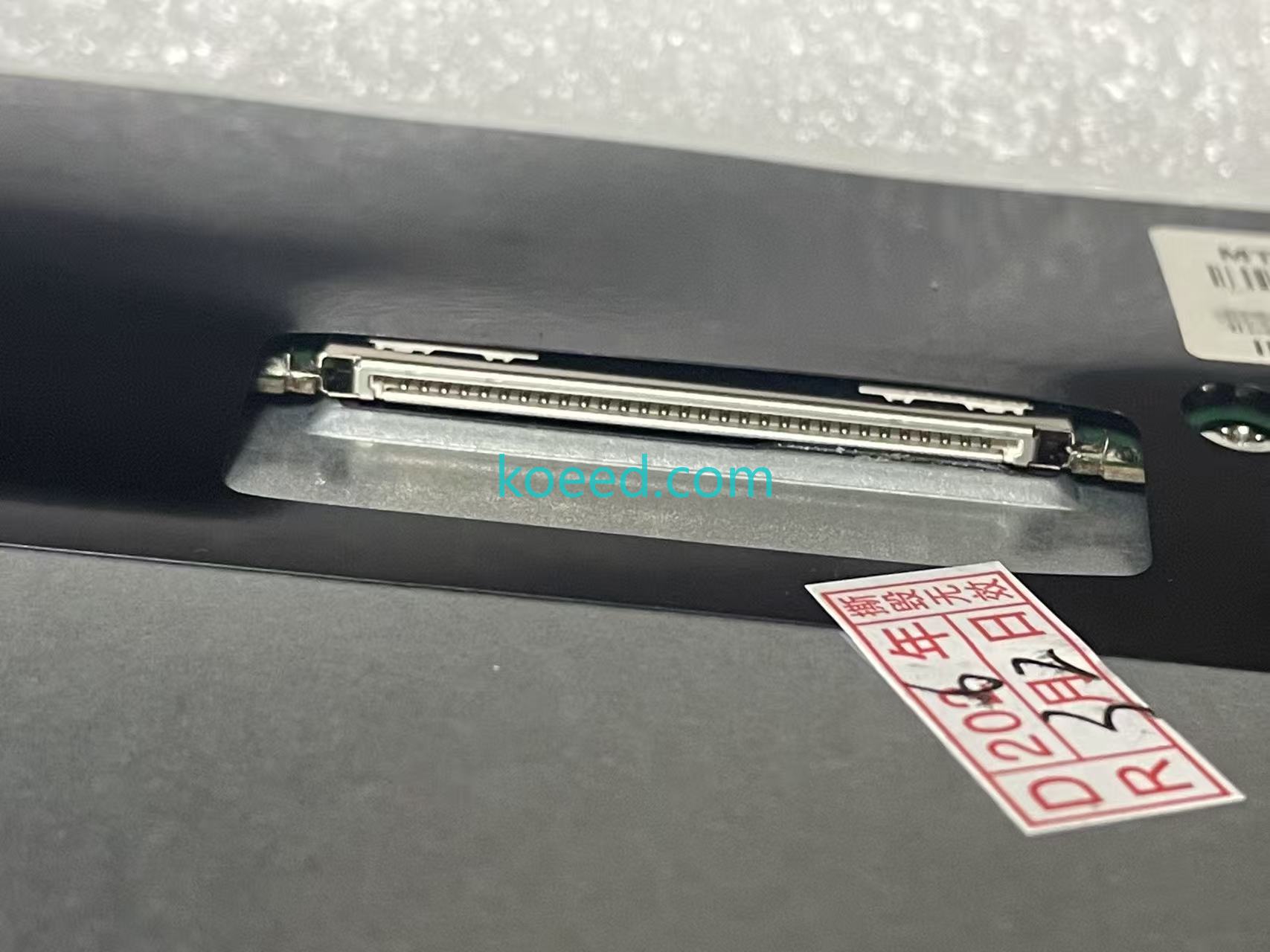

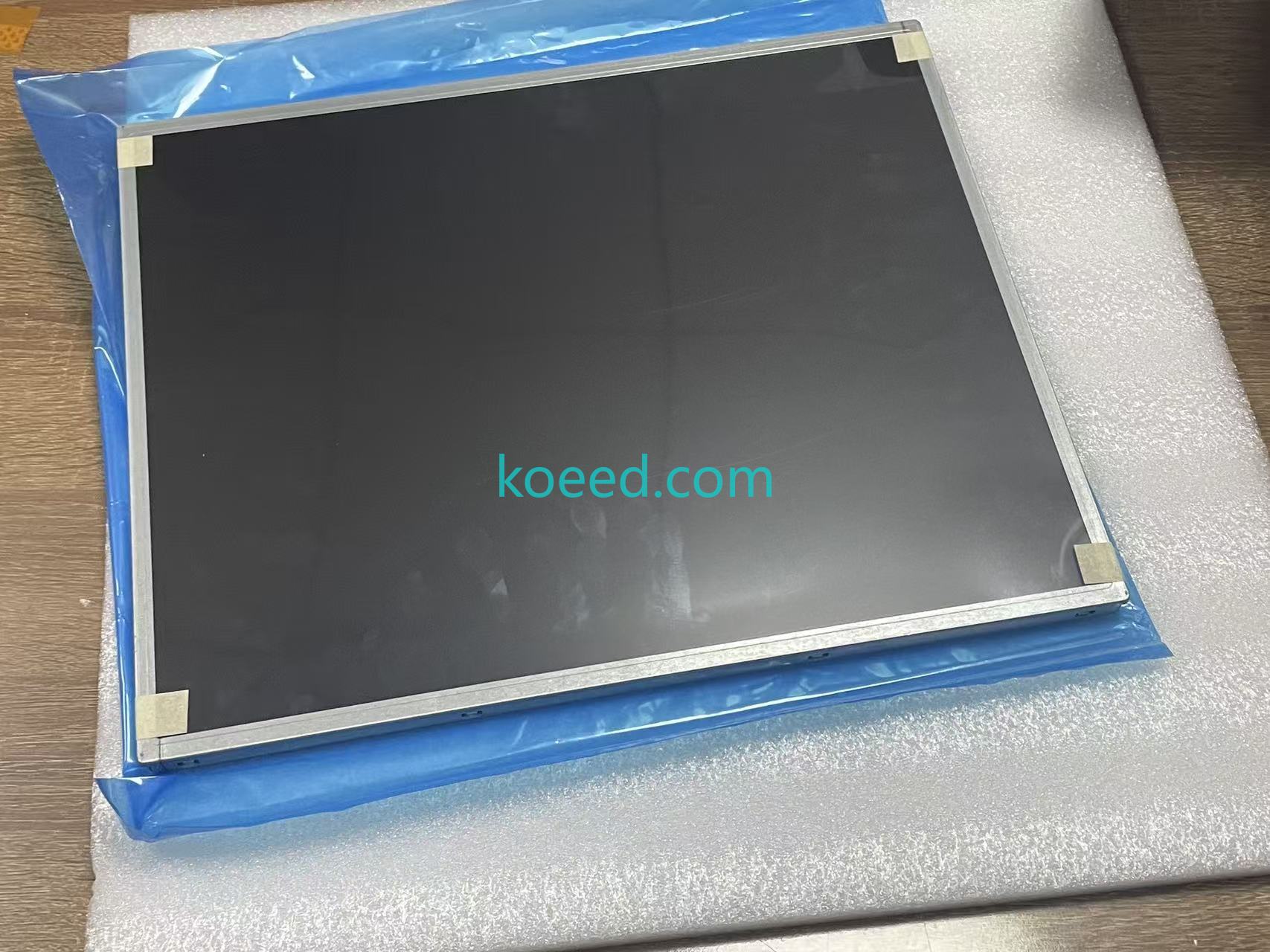

Below is a comprehensive visual reference of the MT190EN02 V.Y panel, covering front/back views, connector detail, label identification, packaging, and operational state. Use these images to verify physical compatibility with your existing mounting frames and LVDS harnesses.
Operational Video Reference
Watch the MT190EN02 V.Y powered and cycling through test patterns — invaluable for verifying timing controller (T-CON) behavior and backlight uniformity before integration:
Maintenance, Troubleshooting & Prolonging Panel Life
Common Failure Modes & Resolutions (2026 Field Data)
| Symptom | Likely Root Cause | Recommended Action |
|---|---|---|
| Screen dim / uneven brightness | CCFL tube aging beyond 40,000 hrs; inverter output degradation | Measure inverter output with high-voltage probe. If below 650Vrms (starting), replace inverter board. If CCFL tubes are blackened at ends, replace panel. |
| No display (backlight ON) | LVDS signal loss; loose FFC cable; T-CON failure | Reseat LVDS cable at both ends. Check 5V supply on pin 1–2 of LVDS connector. If signal present, suspect T-CON board — replaceable separately on some revisions. |
| Flickering / horizontal lines | Poor LVDS grounding; EMI ingress; failing T-CON | Verify chassis ground continuity. Add ferrite bead on LVDS cable. Replace T-CON if pattern is static. |
| Stuck or dead pixels | Manufacturing defect or mechanical shock | Innolux spec allows ≤ 5 sub-pixel defects. If exceeding, RMA. For single stuck pixels, gentle thermal cycling (5°C→45°C over 2 hours) sometimes recovers. |
| Intermittent power cycling | 5V rail instability on controller board | Scope the 5V rail for ripple > 100mV. Replace electrolytic capacitors on controller PSU if bulging. |
Sustainability & Energy Efficiency Note
While CCFL-backlit panels are not as energy-efficient as modern LED equivalents, the MT190EN02 V.Y's 50,000-hour lifespan significantly reduces e-waste frequency compared to shorter-lived alternatives. For 24/7 operations, this translates to approximately 5.7 years of continuous service before replacement — a meaningful sustainability metric when calculating Scope 3 downstream waste in your ESG reports. The panel's fully serviceable design (replaceable inverter, separable T-CON) further extends its circular-economy viability.
Frequently Asked Questions
Is the MT190EN02 V.Y a drop-in replacement for the older MT190EN02 V.3?
Yes, with high confidence. The MT190EN02 V.Y and V.3 share identical outline dimensions (396×324 mm), the same LVDS 2-channel 8-bit interface pinout, and the same 5V input rail. The primary difference is a reduced panel weight (2.30 kg vs. 2.60 kg) and minor T-CON firmware refinements. Always verify your inverter board compatibility — Koeed can cross-reference your existing inverter part number at time of quote.
What is the lead time for MT190EN02 V.Y in 2026?
Koeed maintains buffer stock of the MT190EN02 V.Y for rapid fulfillment. Typical lead times are 3–7 business days for quantities under 50 units. For larger OEM volumes (100+), Innolux factory allocation lead times range from 4–8 weeks depending on quarterly production schedules. Contact our sales team with your target quantity for a confirmed delivery date.
Can this panel be upgraded to LED backlight?
Technically feasible but not recommended as a field modification. LED retrofits require a custom driver board, mechanical bracket adaptation, and optical diffuser recalibration to avoid hot-spotting. The engineering cost ($180–$400 per unit in labor) typically exceeds the cost of simply stocking replacement CCFL panels. For new designs requiring LED, Koeed recommends the Innolux G190EG01 or equivalent LED-native models — ask our team for a cross-reference.
What warranty does Koeed provide on the MT190EN02 V.Y?
Koeed provides a 12-month standard warranty on all MT190EN02 V.Y panels, covering manufacturing defects, backlight failure (excluding physical damage), and T-CON malfunction. Extended 24-month and 36-month warranties are available for OEM volume contracts. All panels undergo a 100% pixel-defect inspection and 8-hour burn-in before shipment.
Does the MT190EN02 V.Y support 1920×1080 input signals?
The panel's native resolution is 1280×1024 (SXGA). Some third-party listings reference 1920×1080 support, but this refers to the controller board's input scaling capability, not the panel itself. When driven by a compatible scaler board, a 1080p signal can be downscaled to SXGA — but the panel's physical pixel matrix remains 1280×1024. For true 1080p industrial displays, consult Koeed's 21.5" FHD panel inventory.
ROI & Total Cost of Ownership (TCO) Analysis
2026 Cost-Benefit Snapshot
| TCO Factor | MT190EN02 V.Y | Generic Aftermarket Panel |
|---|---|---|
| Unit Cost (OEM Volume) | Contact Koeed for 2026 pricing | 15–30% lower upfront |
| Mean Time Between Failures | ≥ 50,000 hrs (backlight rated) | Often 20,000–30,000 hrs (unverified) |
| Downtime Cost per Replacement | Planned PM window (~2 hrs) | Unplanned outage (4–8 hrs typical) |
| Warranty Coverage | 12–36 months (Koeed-backed) | Often 90 days; limited recourse |
| 5-Year TCO (Single Unit, 24/7) | 1 replacement cycle (at ~5.7 yrs) | 2–3 replacement cycles |
Procurement & Next Steps
The MT190EN02 V.Y remains a strategically relevant industrial display panel in 2026 — particularly for brownfield HMI retrofits, CNC console refreshes, and process-control stations where mechanical compatibility and validated reliability trump chasing the latest LED specifications. Koeed's rigorous incoming inspection protocol, buffer inventory, and engineering support ensure that your procurement is not just a transaction, but a reliability partnership.
