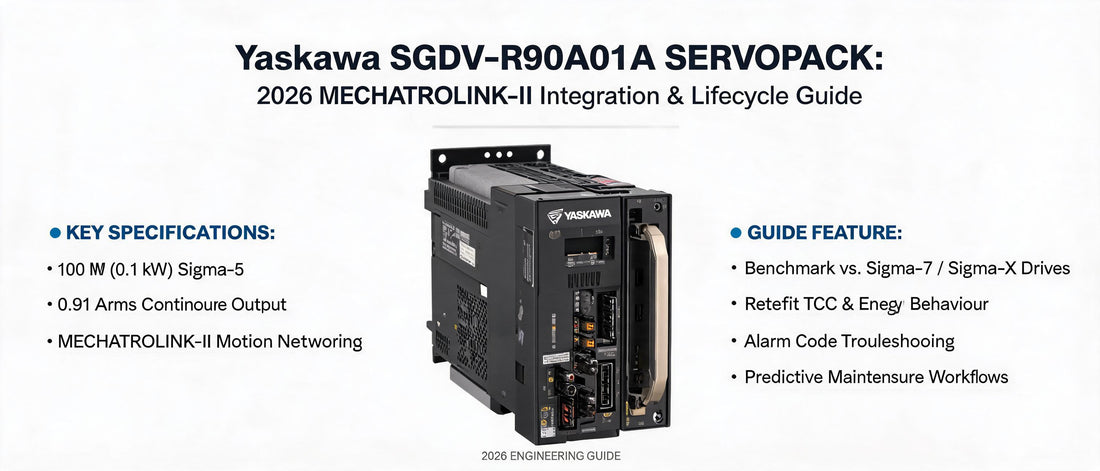

Yaskawa SGDV-R90A01A SERVOPACK: 2026 MECHATROLINK-II Integration & Lifecycle Guide

1. Strategic Overview: Why the SGDV-R90A01A Still Matters in 2026

By 2026 the majority of brownfield automation budgets are no longer allocated to greenfield line builds. They are allocated to asset continuity. A large share of servo-driven machines now in service across Asia, Europe and the Americas were commissioned on Yaskawa's Sigma-V (Sigma-5) platform, and the SGDV-R90A01A — the 0.1 kW, single-phase MECHATROLINK-II variant — is one of the highest-population drives in that installed base. It feeds small-axis applications where positioning accuracy, not raw torque, is the constraint: semiconductor load ports, lab automation gantries, packaging indexers, dispensing heads, vision-stage XY tables and rotary tool changers.

The 2026 engineering reality is that these axes remain capable of another decade of duty — provided the drive is sourced from a verified channel, tuned with the correct toolchain, and instrumented for predictive maintenance. That is precisely where a documented, tested supply of the Yaskawa SGDV-R90A01A SERVOPACK (1 pc, DHL/FedEx expedited) becomes a strategic spare rather than a commodity part.

Decoding the Model Number: SGDV-R90A01A

2. Technical Benchmarking: Legacy Sigma-5 vs. 2026-Era Drives

The table below places the SGDV-R90A01A on a like-for-like footing with the current Yaskawa generations. The headline finding is deliberate: on a 100 W axis the performance delta is small enough to be irrelevant to most motion profiles, while the integration delta is large. That asymmetry drives the replacement decision.

Where the Old Drive Is Still the Rational Choice

• Parameter portability: Sigma-5 parameter sets and MECHATROLINK-II register maps transfer directly into a like-for-like replacement — a 15-minute swap instead of a two-day engineering task.
• Mechanical and electrical fit: identical footprint, identical single-phase wiring, identical CN1/CN2/CN3/CN5 connectors. No panel re-drilling, no new power distribution.
• Motor pairing: pre-matched to SGMJV/SGMPH-class 100 W motors — no torque-curve re-validation required.
• Spares harmonisation: plants running multiple identical axes keep one SKU on the shelf instead of managing a mixed fleet.

3. IT/OT Convergence: Instrumenting a Legacy SERVOPACK for 2026 Data Flows

A MECHATROLINK-II drive does not have to be a data island. The 2026 pattern for integrating the SGDV-R90A01A into a modern IT stack is a three-layer architecture.

Layer 1 — Bus Level (OT)

The SERVOPACK exchanges motion commands with the machine controller (MP2x00 series machine controller or a third-party MECHATROLINK-II master) at 10 Mbps with up to 30 stations on the segment. Keep the segment length within specification and use properly terminated shielded cable — the most common network faults on these drives are still cable-related, not silicon-related.

Layer 2 — Edge Gateway (OT to IT Bridge)

Position a protocol gateway or edge controller between the MECHATROLINK-II segment and the plant network. Map the register set that matters for business KPIs:

• Alarm codes and alarm history → maintenance ticket auto-generation
• Torque reference and effective load ratio (%) → mechanical degradation trending
• Regenerative energy and DC bus behaviour → energy accounting
• Positioning complete and in-position counts → cycle-time analytics
• Operating hours counter → component life budget

Layer 3 — Enterprise Semantics (IT)

Expose those tags to MES/ERP via OPC UA or MQTT. Once torque load and in-position time are time-series data, the servo axis stops being a black box and becomes a monitored asset — the foundation of any credible predictive-maintenance programme in 2026.

4. Field Troubleshooting: Alarm Codes and Diagnostic Workflow

The 7-segment display on the SERVOPACK front panel is the fastest diagnostic surface. The codes below account for the overwhelming majority of field interventions on this model.

Goods-In Inspection Checklist

• Confirm the nameplate reads SGDV-R90A01A with the MECHATROLINK-II option designator.
• Inspect the 7-segment display for a clean power-on sequence (no stored alarm latched at display).
• Verify terminal screws are untouched or correctly torqued and that no corrosion is present.
• Check the option-board slot cover and connector for correct seating and absence of bent pins.
• Record the serial number and photograph the unit for warranty traceability.

5. Predictive Maintenance and Life Extension Strategy

Once the drive is commissioned, three measurable signals give the earliest warning of degradation. First, the effective torque ratio trend: a slow upward creep over weeks indicates rising mechanical friction, belt tension loss or lubrication breakdown. Second, the in-position settling time: lengthening settling points to gain margin erosion or coupling backlash. Third, the DC bus ripple and regeneration frequency: increasing values point to capacitor ageing or abnormal load inertia.

Record these values at the same machine condition each week and store them in the same historian that carries the alarm log. The result is that the replacement SERVOPACK is staged before the failure, not after the line stops.

6. Frequently Asked Questions

7. Sourcing and Supply-Chain Considerations

Because the housing and connector layout are shared across option variants, counterfeit and mislabelled units are a real risk in the secondary market. The controls that matter are: a traceable product page showing the exact nameplate, a stated test protocol before dispatch, and a shipping option that protects the unit in transit. For line-critical spares, expedited air freight with tracking is standard practice.

The SGDV-R90A01A product page documents the exact unit, rating label and connector set, and ships as a single-piece order via DHL or FedEx for fast deployment into existing panels.
