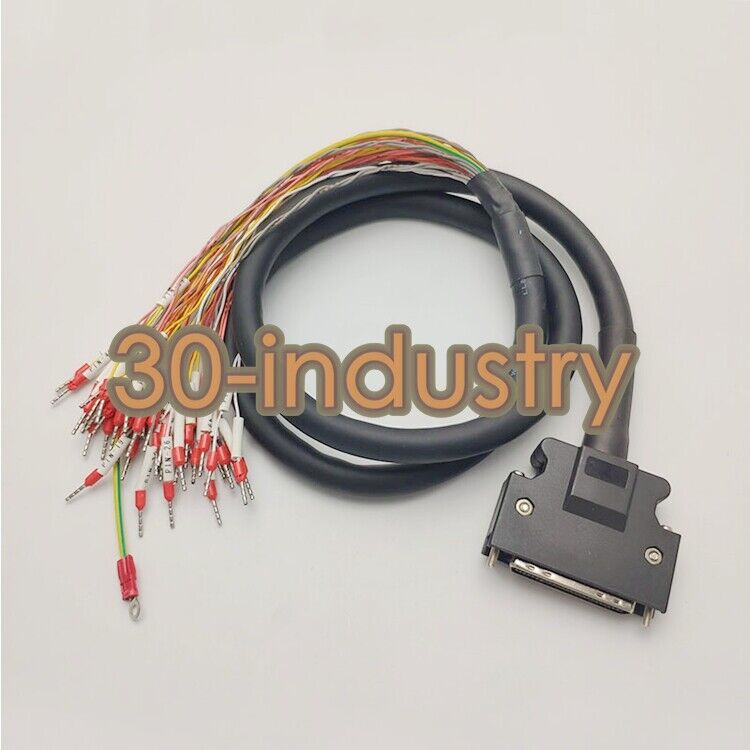

JZSP-CKI01-03 Servo Driver Cable — 3 m Encoder / Signal Lead for Yaskawa Servo Systems

Yaskawa-Designated Servo Cable · 3 m Length · Flexible PVC / Oil-Resistant Jacket

The JZSP-CKI01-03 is a 3-metre Yaskawa-designated servo driver cable used to wire the encoder / signal side of a Yaskawa servo motor to a matching SERVOPACK (drive). The "-03" suffix in the JZSP part-numbering scheme denotes the cable length (3 m), while the "CKI01" body identifies the cable family and the connectors on each end. The cable is engineered for continuous-flex, oil-resistant service inside cable carriers (energy chains / drag chains) on machine-tool and pick-and-place axes, and it carries the encoder signals and the motor thermal sensor back to the drive over shielded twisted pairs.

At koeed.com we list the JZSP-CKI01-03 as a servo signal cable. It is one of the most common wear items on a Yaskawa Σ-series (Sigma) servo line — drag-chain duty, oil ingress, and mechanical impact are the typical failure modes. We hold the standard 3 m, 5 m, 10 m, and 20 m lengths of the CKI01 family in EU/US stock so a cable failure can be turned around in days.

Key Specifications

Datasheet Highlights

• 3 m length covers the most common machine-tool and pick-and-place axis layouts — the cable family also comes in 5 m / 10 m / 20 m suffixes for longer cable-carrier runs.
• Shielded twisted pairs preserve the high-resolution encoder signal integrity (the Σ-series absolute encoders run in the multi-MHz range) — third-party cable substitutions are the leading cause of intermittent position errors.
• Factory-terminated connectors on both ends eliminate field-crimping errors and ensure the IP67 seal on the motor side is intact.
• Oil-resistant jacket survives coolant splash and lubricating oil in machine-tool and packaging environments.
• Cable-carrier rated for the bending radius defined by Yaskawa — using the cable outside that envelope is a common root cause of copper fatigue and shield breakage.
• Pinout is fixed and matched to the Σ-series SERVOPACK CN2 encoder port — no firmware change is needed when the cable is replaced like-for-like.

Typical Applications

• Yaskawa Σ-series servo lines: encoder / signal wiring for SGM7J / SGM7G / SGMJV / SGMAV servo motors on Σ-7 / Σ-V SERVOPACKs.
• Machine-tool axes: X / Y / Z slides, tool changers, and pallet changers on CNC lathes, mills, and grinders that use Yaskawa servo systems.
• Pick-and-place & packaging: gantry axes, conveyor motors, and labelling heads on packaging lines where a flex-rated cable is required for high-acceleration moves.
• Semiconductor & electronics assembly: cleanroom-rated cells where the cable runs inside an energy chain between the SERVOPACK cabinet and the axis.
• Robotics & automation cells: ancillary axes on FANUC or Yaskawa robot cells, sequenced by a Keyence or Mitsubishi cell PLC.
• Service & refurbishment: third-party repair shops that rebuild retired Yaskawa systems for resale, and need a like-for-like cable source.

Related Modules & Cross-Reference

A servo cable swap is a good time to inspect the matching power cable (JZSP-CKM / CKP family), the SERVOPACK itself, and the cell PLC. KOEED can ship the JZSP-CKI01-03 with the wider Yaskawa servo stack in one consignment:

Browse the KOEED servo cables & power leads and servo drives & motors collections to bundle a full cable-and-drive rebuild.

Warranty & Authenticity

Each JZSP-CKI01-03 is supplied as a brand-new, factory-terminated Yaskawa-designated cable. KOEED sources from authorised Japanese and EU distribution; counterfeits and field-terminated assemblies are rejected at incoming inspection because they cause most of the intermittent Σ-series faults we see. A 12-month limited warranty covers manufacturing defects including shield continuity and connector pin-out; KOEED handles return shipping and replacement from EU/US stock at no charge.

Cross-reference: JZSP-CKI01-03 · JZSP-CKI01-3 · Yaskawa Σ-series encoder cable · 3 m servo signal lead · B2B industrial automation spares. KOEED Automation — independent distributor of industrial automation spare parts, including Allen-Bradley, Siemens, Mitsubishi, Omron, Schneider Electric, FANUC, Yaskawa, Panasonic, and Keyence.
