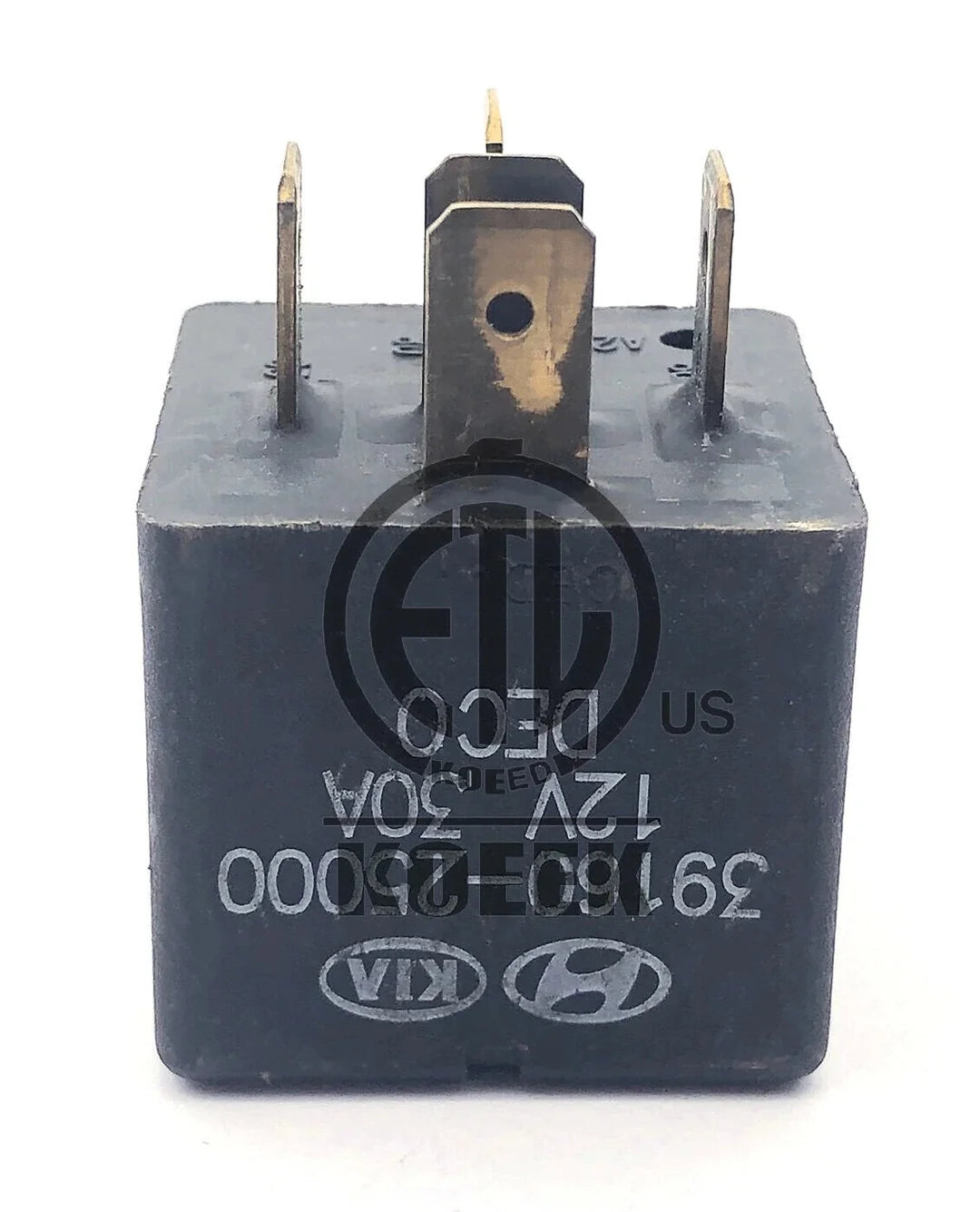

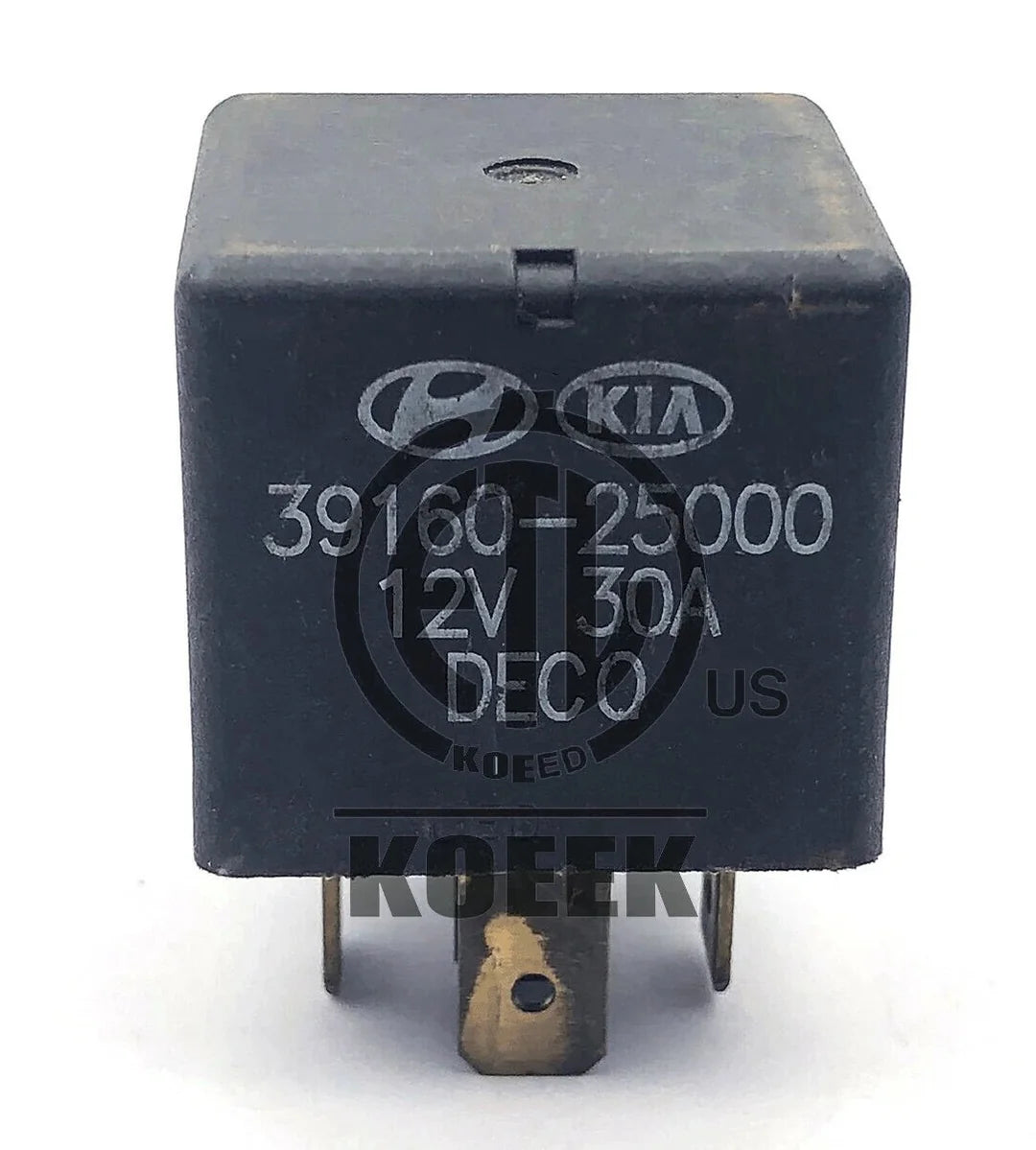

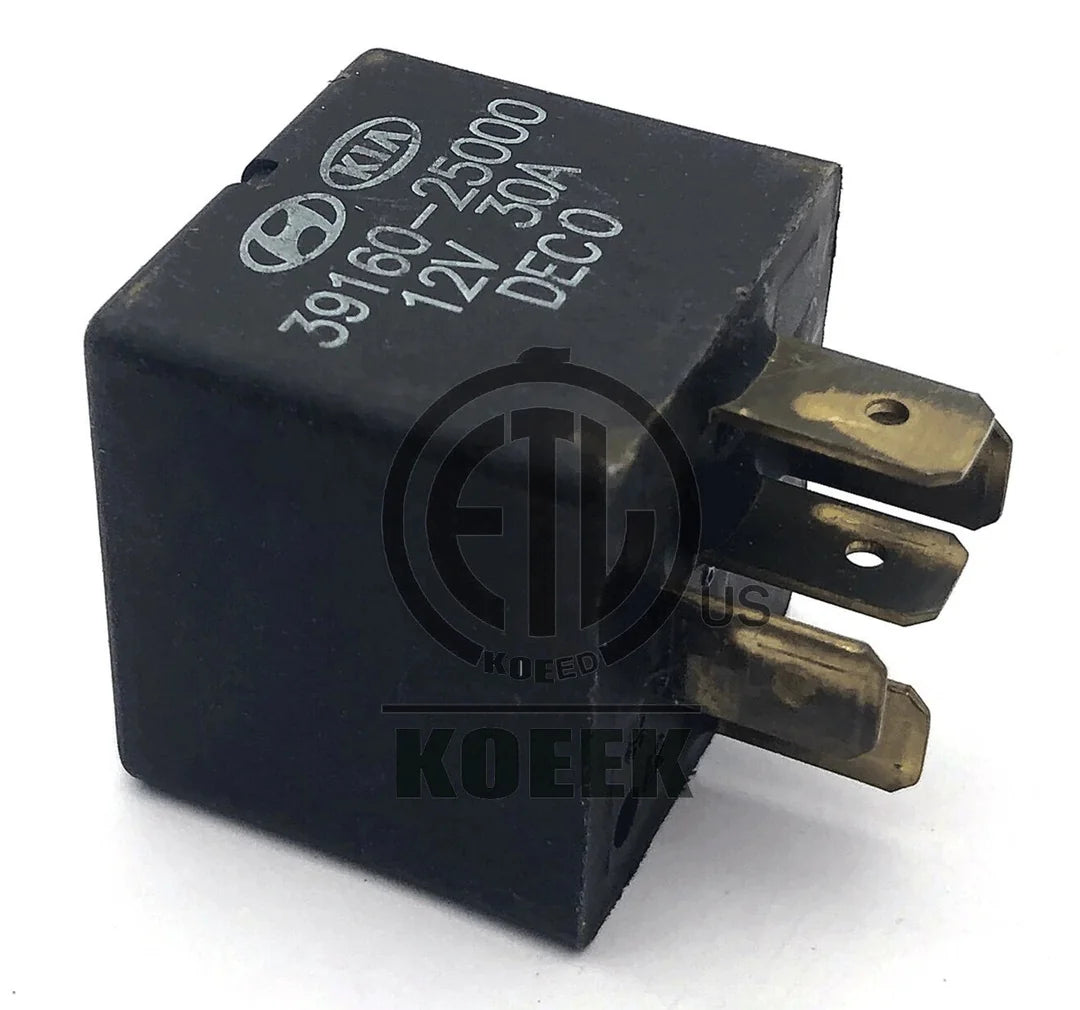

DECO 39160-25000 5-Pin Automotive Relay — 12V 30A SPDT (Form C)

DECO · 5-Pin SPDT · 12VDC Coil · 30A Contact · Plug-in Automotive Base

The DECO 39160-25000 is a 5-pin SPDT (Form C) automotive relay engineered for 12V DC systems. With a 12VDC coil, 30A contact rating at 12VDC, and the standard 5-pin plug-in footprint, it drops directly into horn, lighting, fan-motor, fuel-pump, A/C clutch, and accessory circuits on passenger cars, light trucks, motorcycles, ATVs, golf carts, utility vehicles, marine 12V systems, and trailer wiring harnesses. It is the same form factor that has been used as a direct replacement in production-line test fixtures and aftermarket service kits for decades. Sourcing hard-to-find automotive relays alongside industrial control parts is a daily task at KOEED, where multi-brand components are kept in stock for engineers who can no longer wait on the original channel.

1. Key Technical Specifications & Overview

The 39160-25000 sits in DECO's 12V 30A SPDT relay family — a workhorse class used throughout automotive electrical systems. The 5-pin (Form C) contact arrangement gives you one common (COM), one normally open (NO), and one normally closed (NC) contact, all switched by a single low-current 12VDC coil. That lets the same relay handle standard "switch on" loads (NO) and "default-on" or interlock logic (NC) with one device — a common requirement in body-control and accessory wiring. For engineers comparing it to the control-side components they already stock from Allen-Bradley, Siemens, Mitsubishi, Omron and Panasonic, note that this is an electromechanical power relay, not a logic relay — the coil and contact ratings below are the headline numbers.

2. Application Scenarios — Where It Fits

The DECO 39160-25000 is a 12V 30A general-purpose automotive relay, so it shows up wherever a low-current control signal has to switch a heavier 12V load. The most common deployment is the classic horn circuit — steering-wheel switch energizes the 12VDC coil, the SPDT contact closes, and the horn draws its full current through the relay instead of the dashboard switch. The same topology is used for the fuel-pump relay, where the ECU pulls the coil low to power the pump, and for the A/C compressor clutch, where a body-control or HVAC module commands the clutch on. Lighting is another major use: high/low beam headlamp relays, fog-lamp relays, and auxiliary light-bar relays all use this exact 5-pin SPDT form factor so the same base, socket, and harness pin-out can be carried across model years.

Beyond the car, the 39160-25000 also fits several adjacent platforms. On motorcycles and ATVs it switches headlights, starter solenoids, and accessory power. On EV golf carts, utility vehicles, floor-cleaners, and material-handling carts running 12V accessory buses, it sits between the controller and the higher-current motor or lamp load. In marine 12V systems (small boats, pontoons, dock accessories) the SPDT arrangement is useful for navigation-light change-over (red/green) and bilge-pump control. Trailer wiring — brakes, turn signals, and marker lights — is yet another sweet spot because the relay can be mounted near the trailer connector and triggered from the tow-vehicle harness. Engineers who normally work with Fanuc, Schneider, Yaskawa and KEYENCE systems on the machine side will recognize the 5-pin plug-in relay as the equivalent of a panel-mount ice-cube relay on a 24VDC DIN rail — same SPDT logic, different mechanical world.

• Automotive horn, fuel-pump, and A/C compressor clutch circuits
• Headlight high/low beam, fog lamp, and driving-light relays
• Cooling-fan motor and heater-blower relays
• Trailer brake, turn-signal, and marker-light harnesses
• Motorcycle, ATV, UTV, and 12V golf-cart / utility-vehicle accessories
• Marine 12V systems: nav-light change-over, bilge-pump, accessory
• Production-line test fixtures, EOL test racks, and aftermarket service kits

3. Integration & Wiring Notes

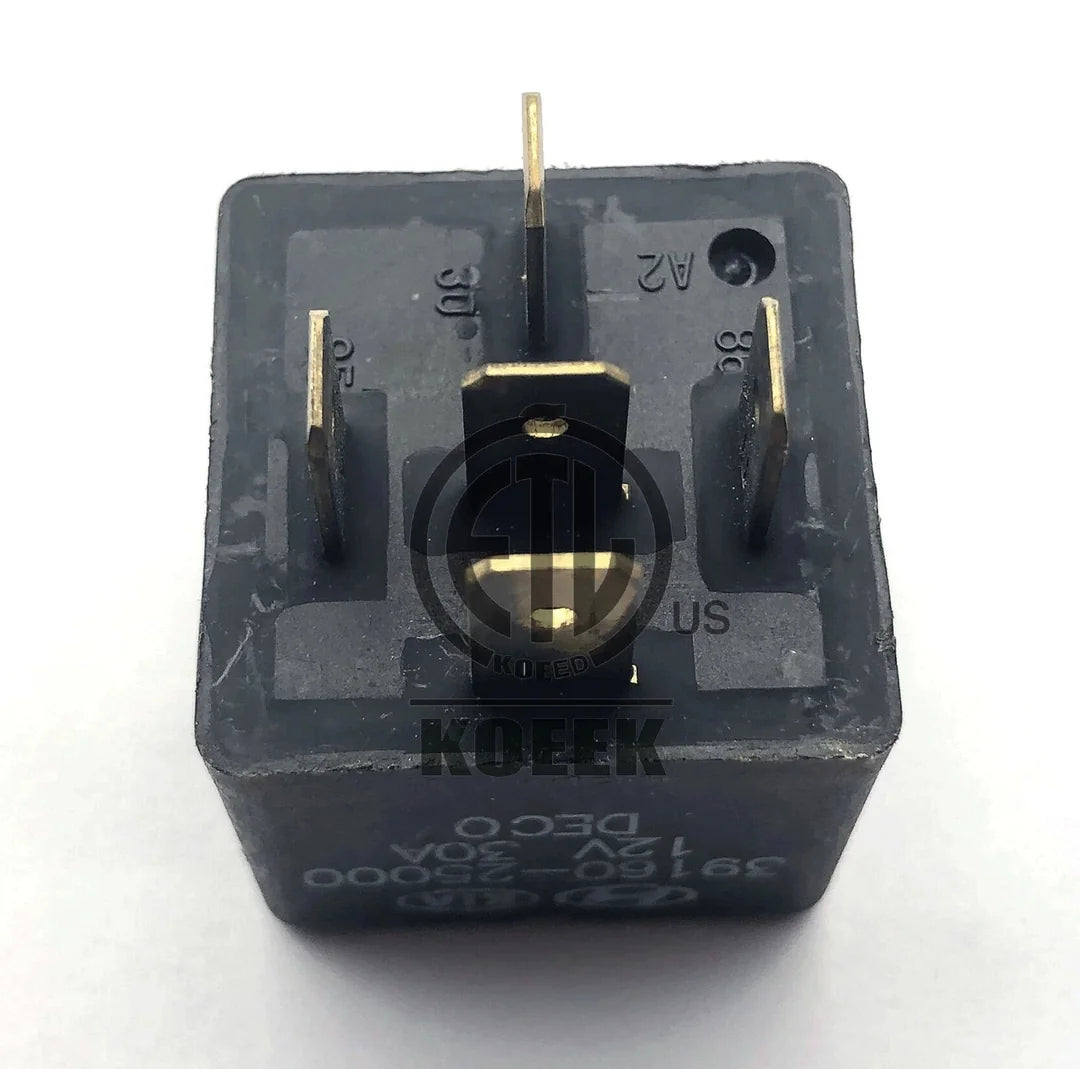

The 5-pin automotive socket has a fixed, industry-standard pin-out: pins 85 and 86 are the 12VDC coil, pin 30 is the common (COM) contact tied to the load supply, pin 87 is normally open (NO), and pin 87a is normally closed (NC). The COM pin carries the full 30A contact current, so the harness lead on pin 30 should be sized for the load — typically 12 AWG for a 30A continuous run, with a fuse rated just above the steady-state load but below the wire's ampacity. The coil side (85 / 86) is polarity-insensitive on most automotive relays of this class, but always confirm with the supplier's datasheet for the specific lot. Trigger current on a 12VDC coil of this size typically lands in the 100–200 mA range, so it can be driven directly from a low-side MOSFET output on a body-control module or from a small Omron or Mitsubishi PLC output card without an interposing relay.

For a 30A inductive load (motors, solenoids, A/C clutch), add a flyback / snubber network across the coil (a 1N4007 reverse-biased across 85/86, or an RC snubber at the contact). Without it, the inductive kick can both radiate EMI back onto the 12V bus and erode the contact life. If the relay is being mounted near a high-vibration source (engine bay, near a motor contactor, or adjacent to a Siemens SIMATIC or Allen-Bradley control cabinet), use a relay socket with a secondary lock or a tie-wrap to keep the relay from walking out of its base. The IP54 rating only holds when the relay is fully seated and the wire exit on the socket is sealed, so plan the harness layout accordingly.

If the 39160-25000 is being integrated into a machine-control cabinet alongside Schneider Modicon or Yaskawa Σ-7 servo gear, the relay coil should be suppressed with a freewheeling diode to keep PLC digital-input noise and servo-encoder noise separate from the 12V rail. For the signal-level cross-checks and register math that often happen in parallel with relay commissioning, the PLC Hex to Float Converter and Modbus CRC Calculator are useful on the bench.

4. Installation & Commissioning Tips

Start with a visual inspection: confirm the relay housing is crack-free, the pins are straight, and the base clip is intact. Push the relay firmly into its socket until the secondary lock (if present) clicks — a partially seated relay will read intermittent continuity, especially under thermal cycling. With the battery / 12V supply disconnected, ring out the harness: pin 30 (COM) should show battery voltage with the fuse installed, pins 85 and 86 should be the control side, and pins 87 / 87a should be the load side. A quick continuity test on the de-energized relay shows 87a (NC) closed to 30 and 87 (NO) open to 30 — this is the easiest way to spot a mis-wired socket before applying power.

Once powered, measure the coil voltage at the relay pins, not just at the upstream connector — a 1V drop on a marginal harness is enough to keep a 12VDC relay from pulling in cleanly, especially in cold weather. Energize the coil and listen for the single, decisive "click" of the contacts; a chattering relay means the coil voltage is on the edge of the pull-in spec. With the coil held energized, verify the load voltage on pin 87 (or 87a if that is the intended path) and check contact-side current with a clamp meter. For a 30A relay, derate the steady-state current to roughly 80% (≈ 24A) for continuous duty — pushing 30A continuously will shorten the contact life well below the 100,000-operation spec.

On the documentation side, log the relay location, harness part number, and the upstream fuse rating in the machine's electrical drawing so the next service event doesn't end in a mis-replacement. Engineers maintaining a fleet of mixed-brand machines (a CNC with Fanuc control, a robot with Yaskawa servos, a vision station with KEYENCE) often standardize on a single 12V 30A SPDT relay for body-control and lighting — the 39160-25000 is a reasonable choice for that role. For unusual fault patterns, the PLC Error Code Database and the 24/7 AI Diagnostic Tool can help narrow down whether a "dead" relay is actually a control-side issue.

5. Procurement, Warranty & Lead Time

KOEED quotes the DECO 39160-25000 against current factory and channel stock. Pricing is RFQ-driven — send your required quantity, target delivery window, and any compliance documents (PPAP, RoHS, REACH, automotive PPAP-level traceability) to Moritta@KOEED.COM and we will return availability, lead time, and a quote on the same business day. Standard warranty terms follow KOEED's published policy (see the Return Policy page) — every relay ships with a clean traceability record and a documented test for contact resistance, pull-in voltage, and dielectric withstand. Worldwide shipping is available via DHL, FedEx, and UPS, with DDP / DAP terms quoted on request.

For larger projects, KOEED can hold buffer stock of the 39160-25000 (and pin-compatible 12V 30A 5-pin relays) under a scheduled-release blanket order, so production lines do not stop because a single commodity relay is back-ordered. If the DECO 39160-25000 itself is constrained, we will cross-reference to a pin-compatible alternate (e.g. other 12V 30A 5-pin Form C relays) and confirm the substitution against your harness pin-out before shipping. Engineers who already buy PLC and drive spares from us — whether Allen-Bradley ControlLogix, Siemens SIMATIC, Omron SYSMAC, Mitsubishi MELSEC, or Panasonic FP — can fold the 39160-25000 into the same BOM and the same Create a Quote form for a single combined shipment.
