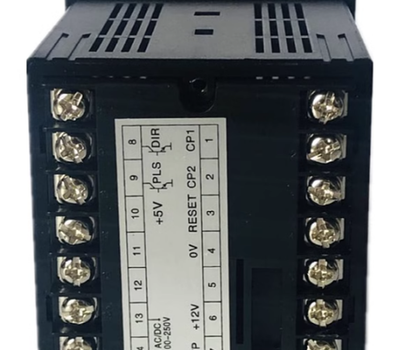

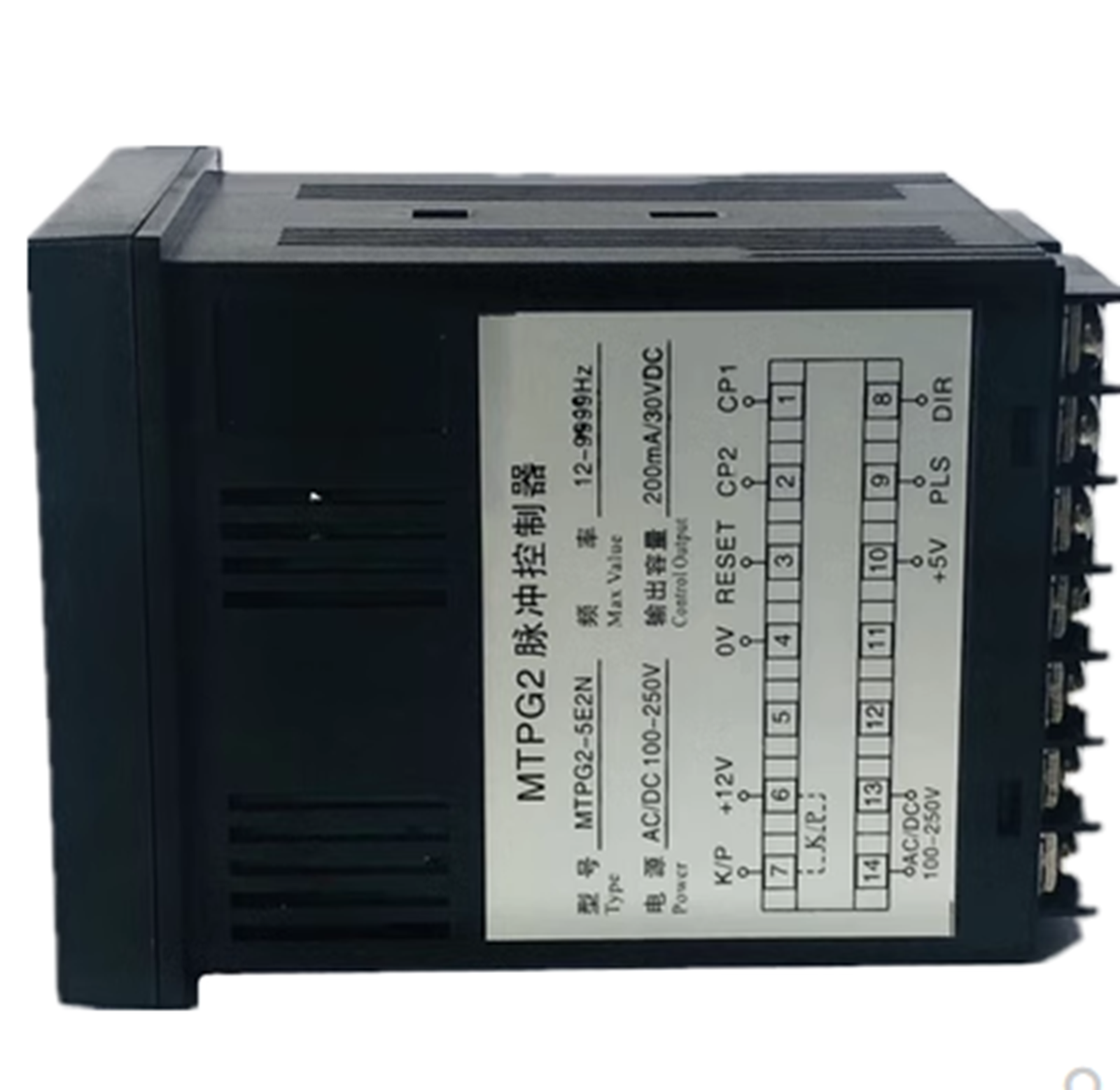

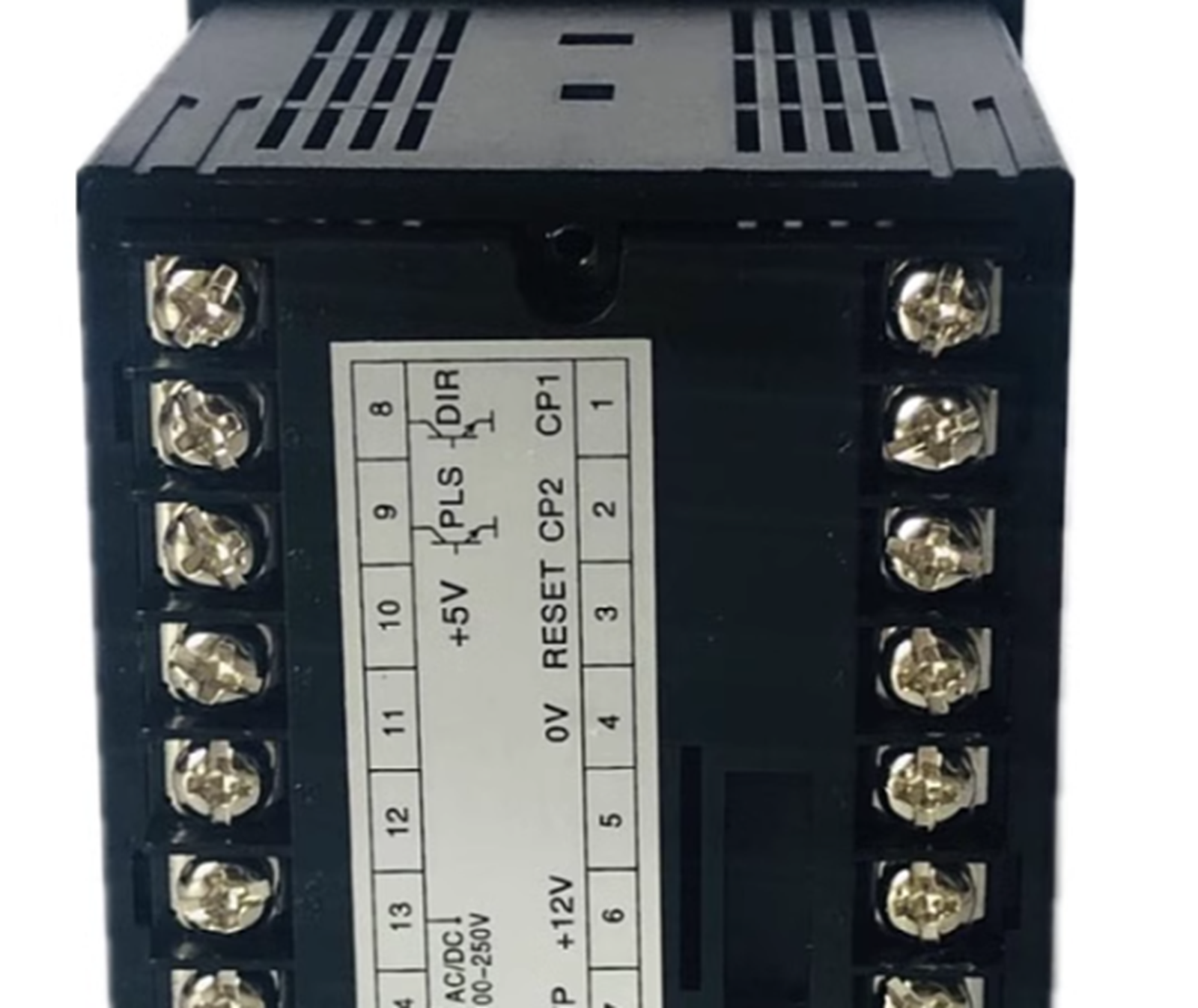

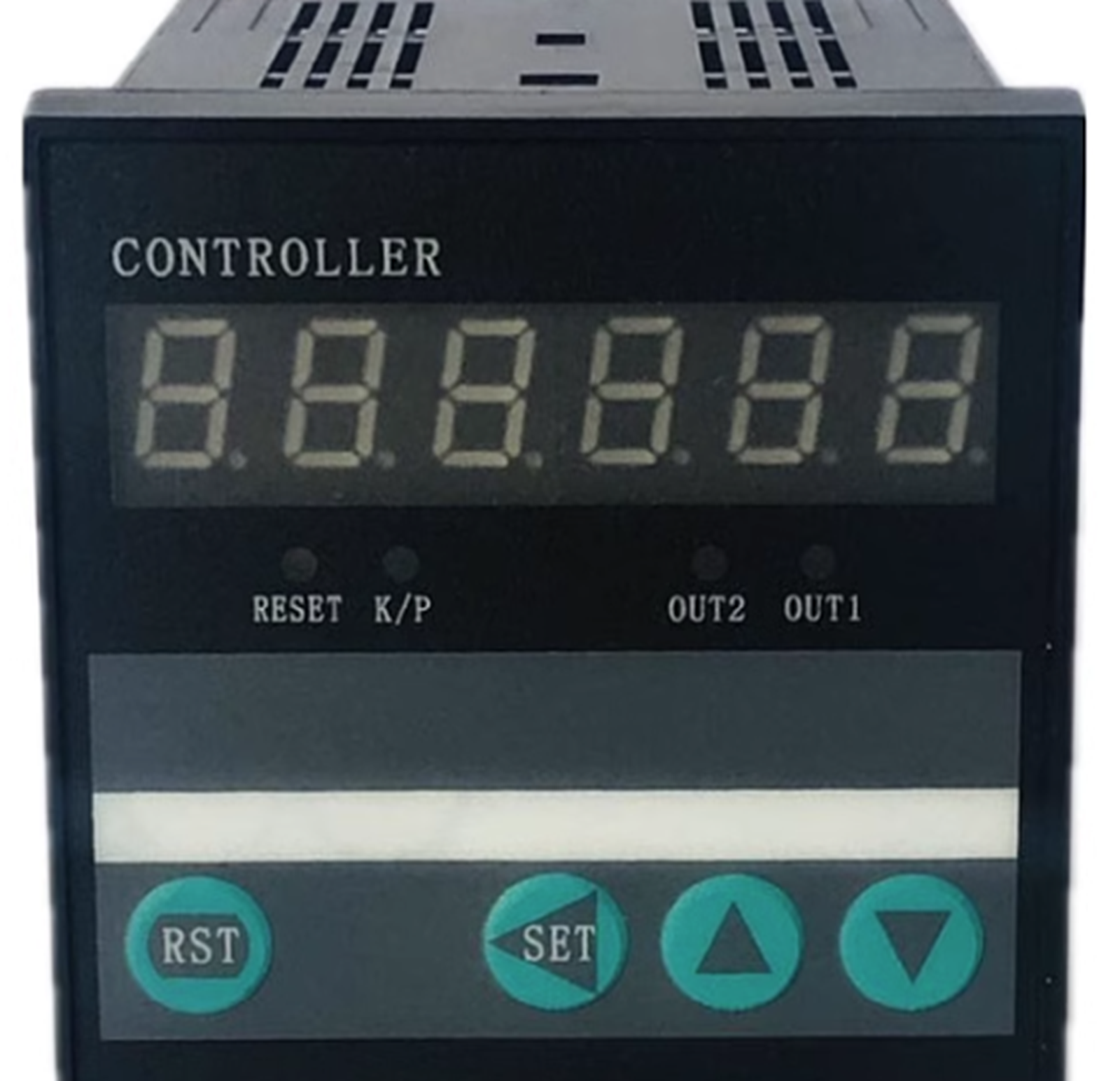

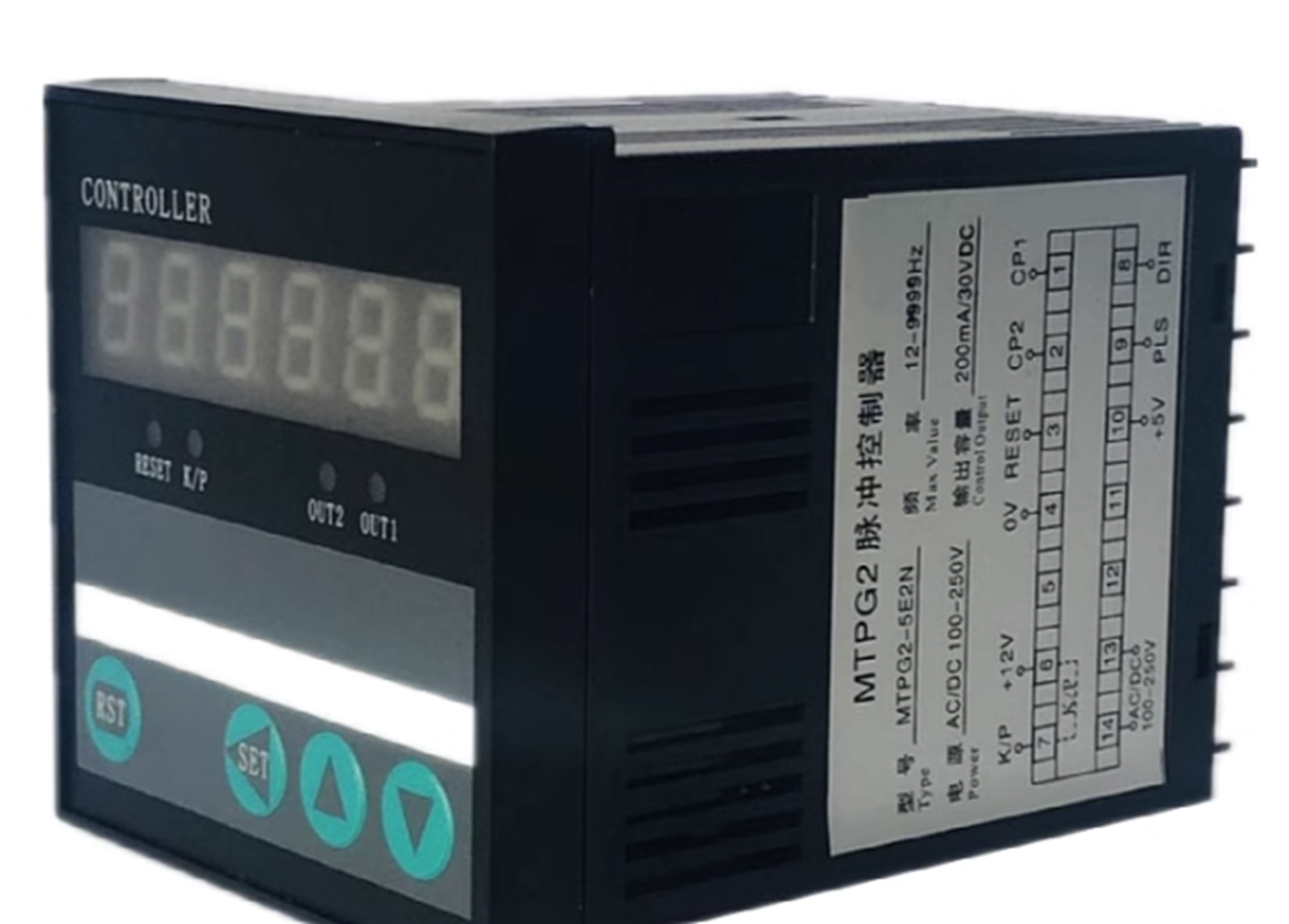

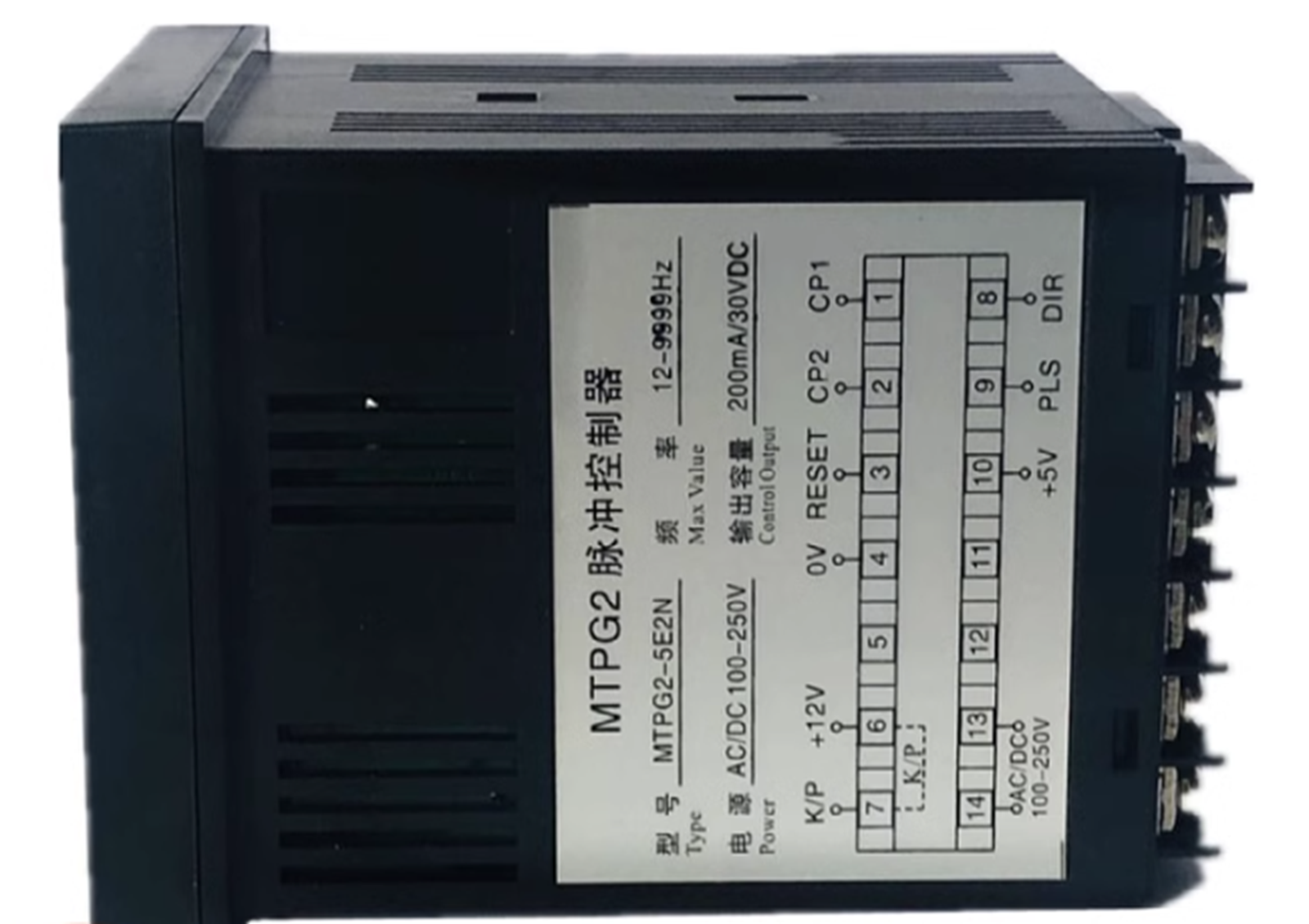

MTPG2-5E2N Stepper Motor Controller Pulse Generator - High-Quality Precision Motion Control

MTPG2-5E2N Stepper Motor Controller Pulse Generator - High-Quality Precision Motion Control

$137.24 USD
$137.24 USD $137.24 USD
Sleva Vyprodáno
Poštovné se vypočítá na pokladně.
Condition new
MPN MTPG2-5E2N
control interface Digital I/O and PWM
max step frequency Up to 500,000 steps per hour
pulse output frequency 100 kHz
model MTPG2-5E2N
drive voltage Up to 24 V
Chat on WhatsApp
Zobrazit veškeré podrobnosti

  • step 1: Quote Or Shop Now

    You can place an order directly or contact us via email and whatsapp for a quote

  • step 2: Confirmation and delivery

    After placing an order, we will contact you by email or WhatsApp within three days to provide photos and videos of the product for confirmation and then ship it.

Customers are saying

4.99 ★ (1084)
Verified

Description


MTPG2-5E2N Stepper Motor Controller Pulse Generator - High-Quality Precision Motion Control

The MTPG2-5E2N Stepper Motor Controller Pulse Generator delivers high-precision motion control with exceptional reliability and performance.

The MTPG2-5E2N Stepper Motor Controller Pulse Generator is a high-performance solution designed for precise motion control applications. It features high-resolution pulse generation, robust digital control, and compatibility with various motor drive systems. This compact and reliable device ensures accurate positioning and efficient operation in industrial and automation environments. The MTPG2-5E2N Stepper Motor Controller Pulse Generator is ideal for applications requiring high speed and precision.

MTPG2-5E2N High-Precision Stepper Motor Pulse Generator

The MTPG2-5E2N is a professional-grade pulse signal generator engineered for independent control of stepper motor drivers. Ideal for systems where a PLC is not required, this controller provides stable, high-frequency square wave signals for precision motion control. With integrated speed regulation, direction switching, and multiple operation modes, the MTPG2-5E2N is the ultimate solution for simplifying motorized setups in conveyor systems, labeling machines, and automated laboratory equipment.

  • Keywords: Stepper Motor Controller, Pulse Generator, MTPG2-5E2N, Speed Controller, Motion Pulse Unit.

Technical Specifications

Parameter Specification Detail
Model MTPG2-5E2N
Power Input DC 12V - 24V
Frequency Range Low: 10Hz - 1kHz | High: 1kHz - 20kHz
Output Type Pulse (PUL) / Direction (DIR) / Enable (EN)
Logic Compatibility 5V / 24V Signal Level Support

Industrial Application & Reliability

The MTPG2-5E2N is built for 24/7 industrial reliability. Its optocoupler-isolated outputs prevent back-EMF and electrical noise from interfering with sensitive electronics. Whether used for positioning tasks in CNC feeders or constant speed control in winding machines, this controller ensures jitter-free pulse delivery. The rugged DIN-rail compatible design allows for quick integration into standard industrial cabinets.

http://googleusercontent.com/image_content/282

Koeed Interactive: Stepper Speed & Frequency Calculator

Convert your target RPM into the required Pulse Frequency (Hz) for the MTPG2-5E2N.

Field Troubleshooting FAQ

Q1: The motor hums but does not rotate when the pulse is triggered.
A: This is often a phase wiring issue or the frequency is too high for the motor's starting torque. Lower the starting frequency and check if the motor driver is in an 'Enabled' state. Ensure the logic voltage (5V vs 24V) matches the driver's input specs.

Q2: The motor rotation is unstable or skips steps at high speed.
A: Ensure you are using shielded twisted-pair cables for the PUL and DIR signals. High-frequency pulses are susceptible to EMI. Also, check if your power supply can handle the peak current draw during acceleration.

Q3: How to switch between Common Anode and Common Cathode wiring?
A: For Common Anode, connect all PUL+, DIR+, and EN+ to the controller's VCC (+). For Common Cathode, connect all PUL-, DIR-, and EN- to the controller's GND (-). Use a 1k-2kΩ resistor if using a 24V signal with a 5V driver input.
