DC 12V 30A Timer Delay Relay Module Timing on/off Relay Switch 0~60minutes

Control Module · Timer Relay · 12V 30A · 0-60 Minutes · In stock

What Is the 12V 30A Timer Delay Relay Module?

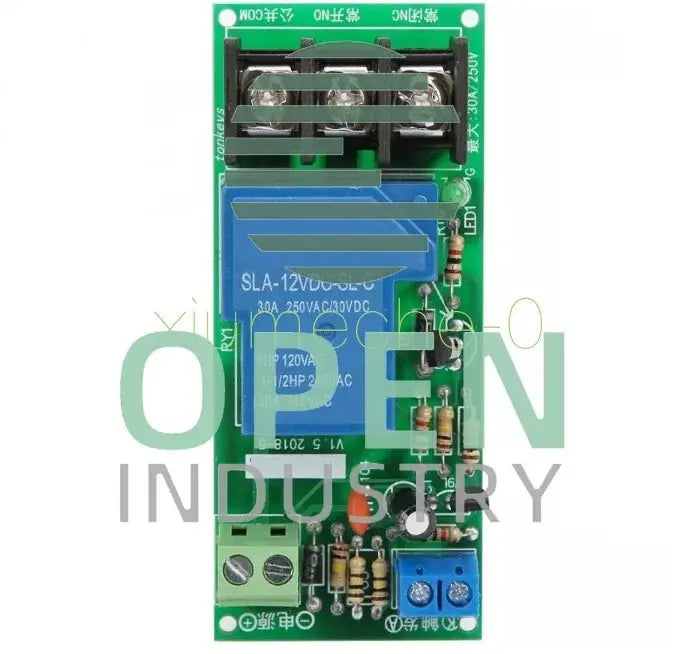

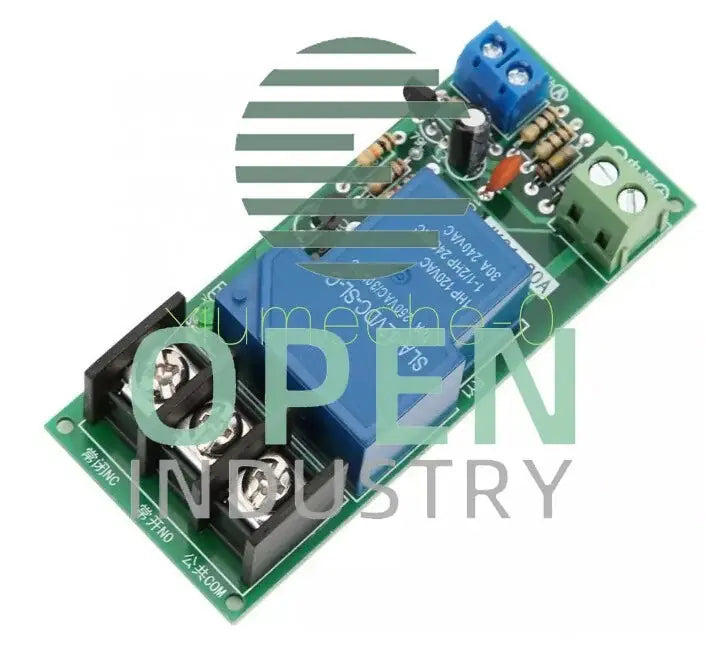

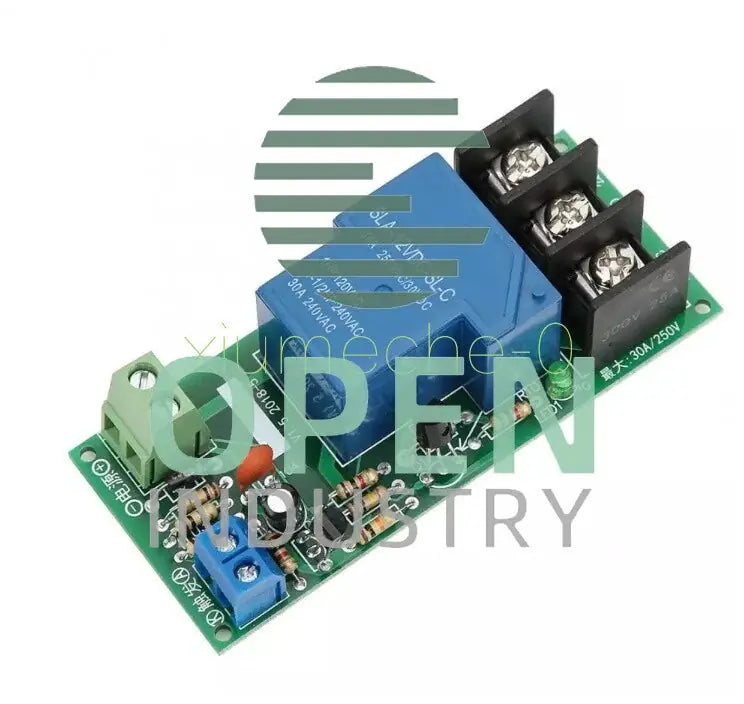

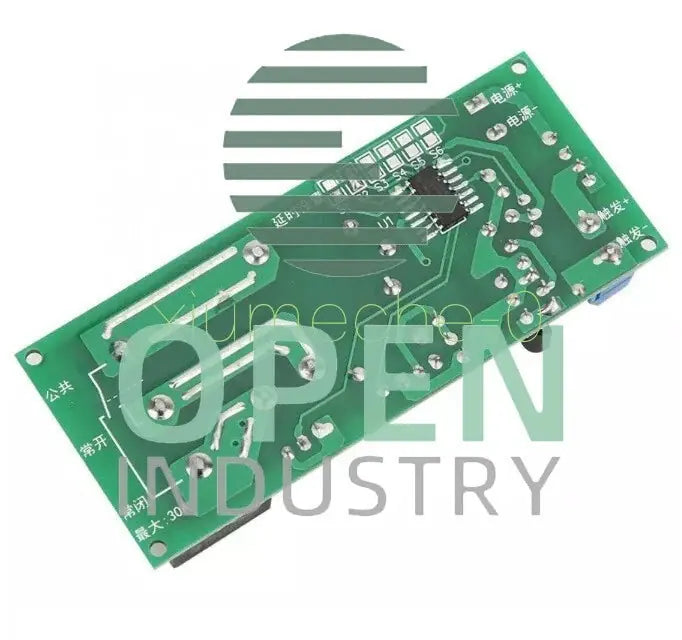

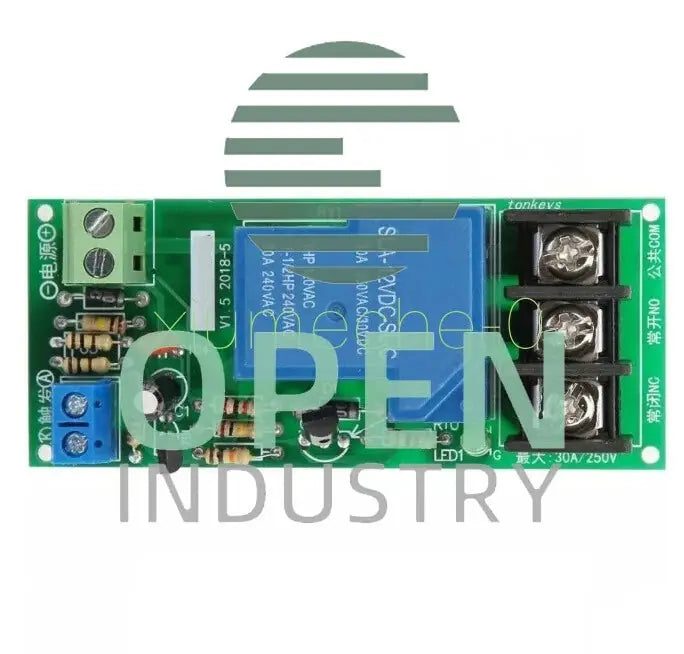

The DC 12V 30A Timer Delay Relay Module is a programmable timing control board that switches a high-current (30A) relay on and off according to user-set time intervals. It operates on a 12V DC power supply and provides an adjustable timing range of 0 to 60 minutes. The module functions as an automated on/off switch — you set how long the relay stays energized before turning off (or vice versa), and the onboard microcontroller handles the timing. This is a versatile building block for automating lights, pumps, motors, heaters, fans, solenoid valves, and any other 12V-powered or relay-switched equipment that needs timed operation.

In short: This is a programmable timer module that switches a 30-amp relay on a user-defined schedule from 0 to 60 minutes. If you need any 12V device to turn on or off automatically on a timer — a pump that runs for 10 minutes every hour, a light that shuts off after 30 minutes, a fan that cycles on periodically — this board provides the timing logic and the switching muscle in one package.

Operating Modes and Configuration

Timer relay modules of this type typically support multiple operating modes, selectable via onboard jumpers, DIP switches, or button combinations. The exact modes available depend on the specific firmware on the module, but common modes include:

• Delay-On (ON-delay): When triggered or powered, the relay waits for the set time, then energizes. Useful for sequencing — start a cooling fan 30 seconds after the heater turns on.
• Delay-Off (OFF-delay): The relay energizes immediately when triggered, then de-energizes after the set time. Useful for bathroom exhaust fans that continue running for 15 minutes after being switched off.
• Cyclic (auto-repeat): The relay cycles on and off repeatedly — ON for X minutes, OFF for Y minutes. Useful for intermittent pump operation, periodic flushing, or cycling aeration.
• One-shot (monostable): A trigger pulse causes the relay to energize for the set time once, then wait for the next trigger. Useful for controlling a solenoid or dispenser that needs to activate for a precise duration per event.

Key Specifications

Frequently Asked Questions

How do I set the timing interval on this module?

The timing is typically adjusted using a potentiometer (rotary knob) on the board, sometimes in combination with a range-selection jumper. Turn the knob clockwise to increase time, counter-clockwise to decrease. The scale may be linear or logarithmic — for precise timing, use a stopwatch to calibrate the knob position against actual measured time on your specific unit, as potentiometer-based timers have unit-to-unit variation. Some modules also support digital setting via push-buttons and a small LED or LCD display — check your module's documentation.

Can I use this timer to control a 120V or 240V AC device?

The relay contacts can switch AC loads up to the contact rating (typically 250VAC). However, the module itself — the timer logic board — requires 12V DC power. So the complete setup would be: a 12V DC power supply powers the timer module, and the timer's relay contacts switch the 120V/240V AC load. Ensure all AC wiring is properly insulated, enclosed, and complies with your local electrical code. If you are not experienced with mains-voltage wiring, consult a qualified electrician.

How accurate is the timing?

For a potentiometer-based timer module, expect accuracy within approximately 5-10% of the set value, with some unit-to-unit variation. The timing capacitor and resistor tolerance, temperature drift, and potentiometer linearity all contribute to timing uncertainty. This module is suitable for general-purpose timing applications where second-level precision is not required. For applications demanding precise timing (such as laboratory protocols or production processes with tight tolerances), consider a digital timer module with a crystal oscillator time base.
