Omron G3B-205S Solid State Relay
High-Performance Photocoupled Solid State Relay for Industrial Automation Applications
Product Overview
The Omron G3B-205S is a premium solid-state relay (SSR) designed for industrial automation applications requiring reliable switching of AC loads. As part of Omron's renowned G3B series, this photocoupled SSR offers superior performance, durability, and safety features for demanding industrial environments.

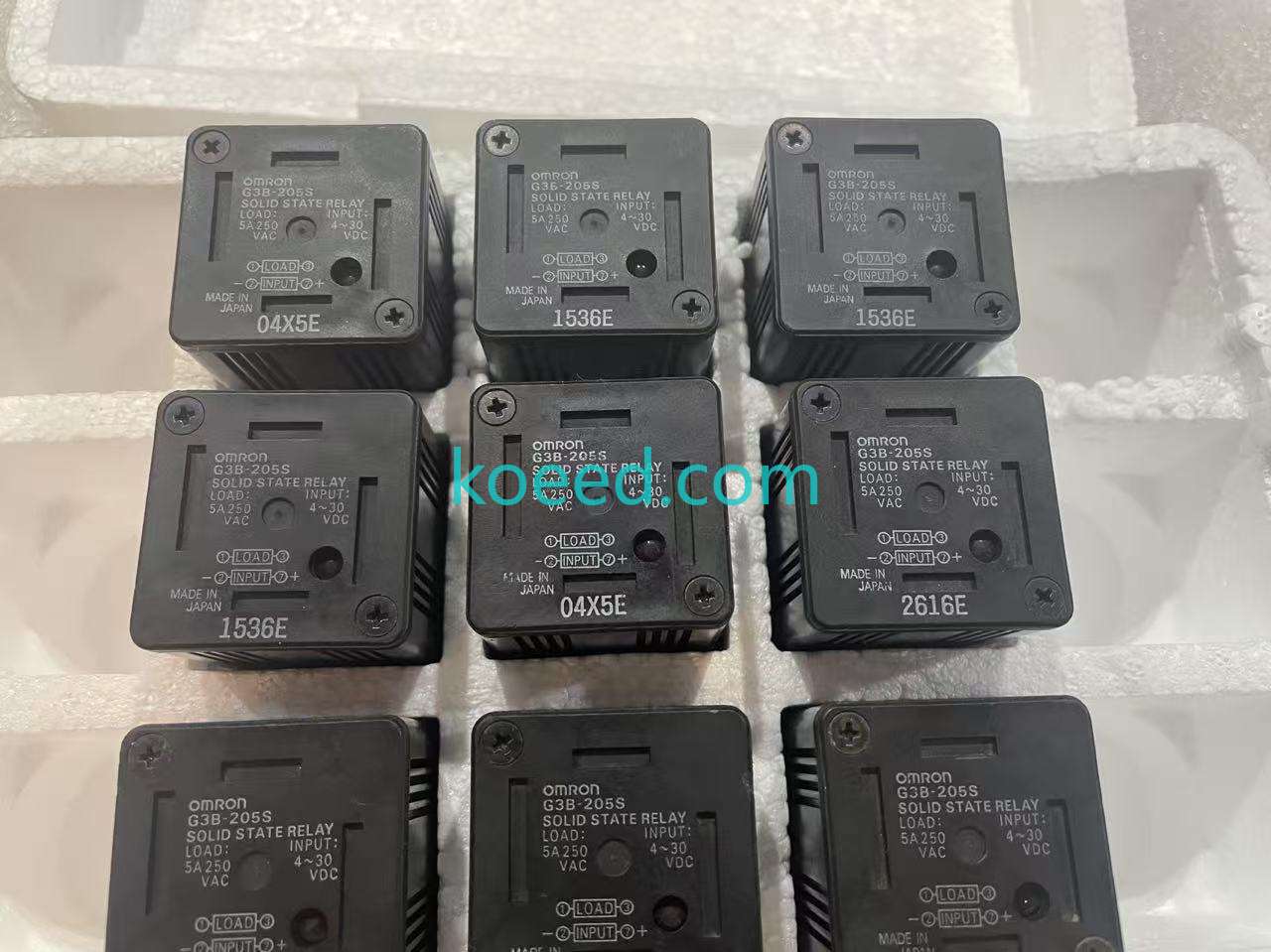

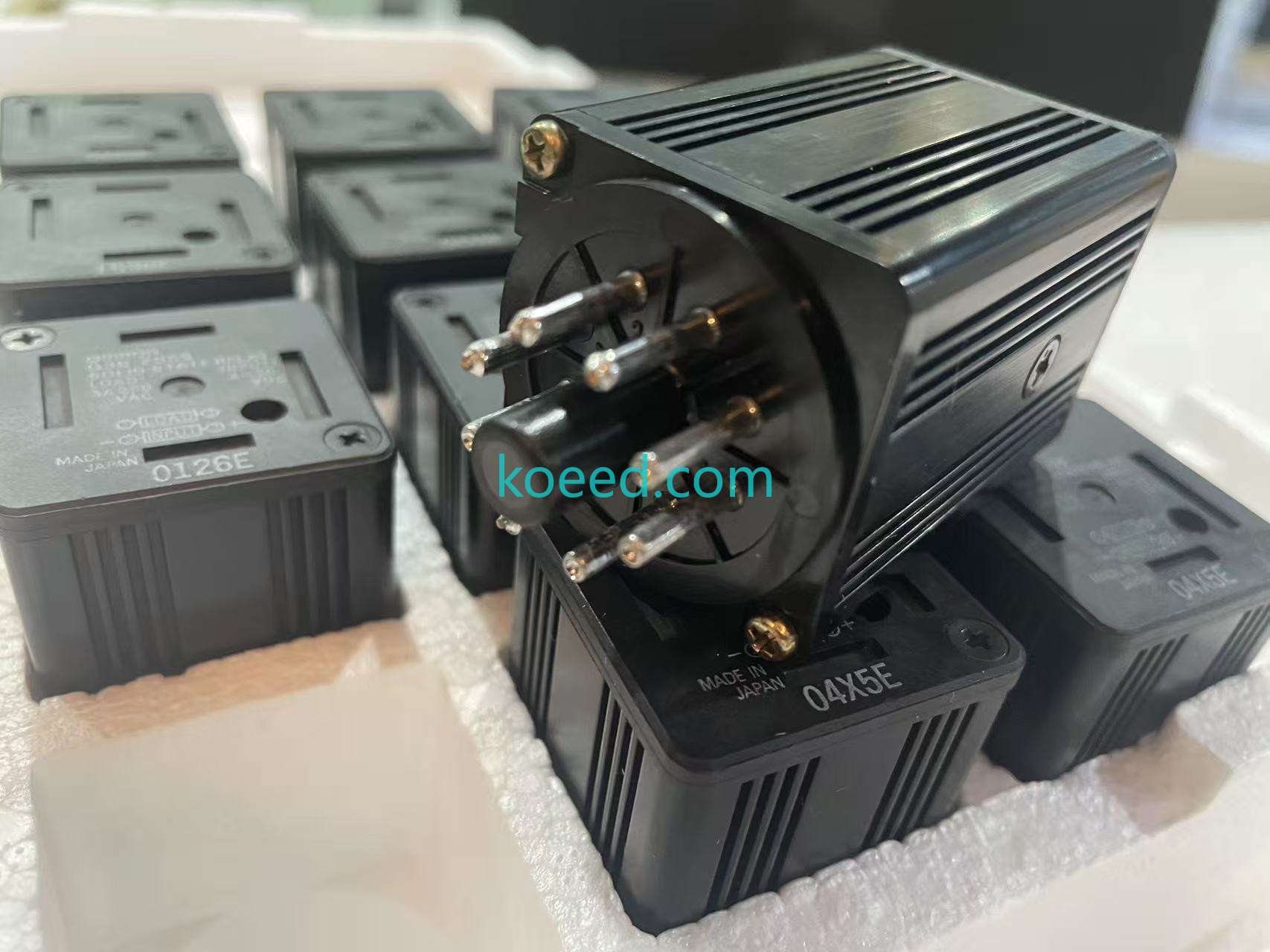

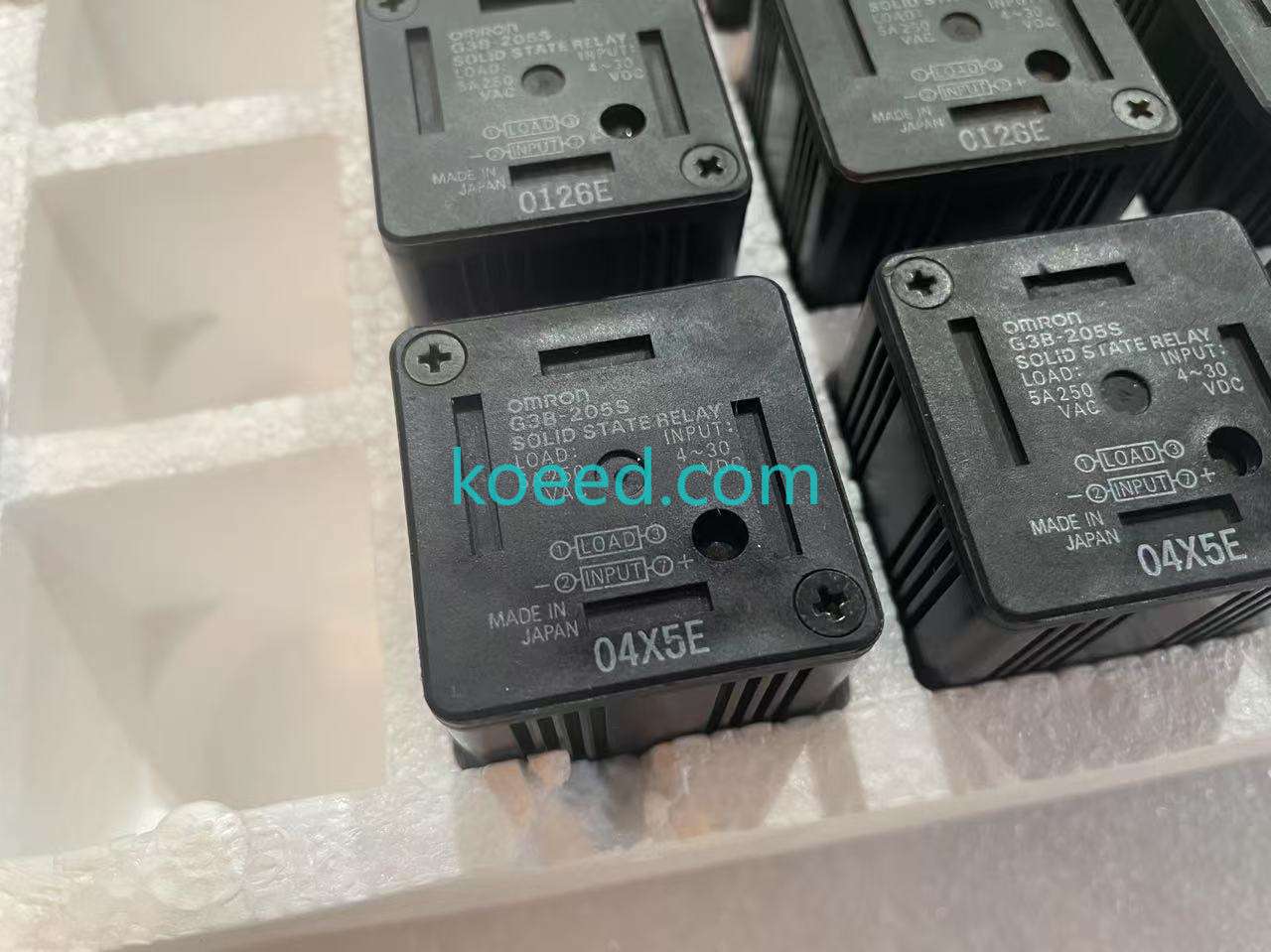

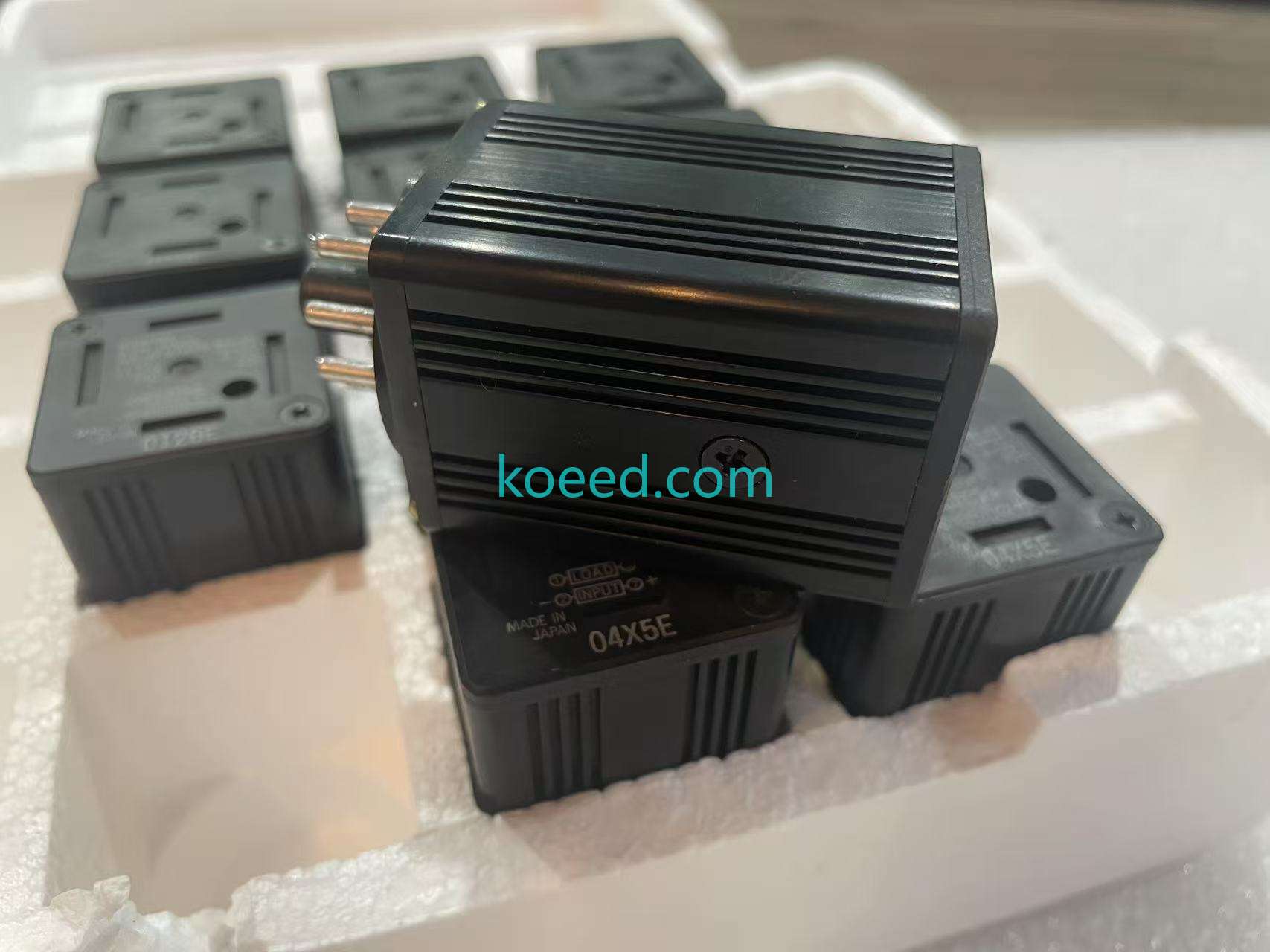

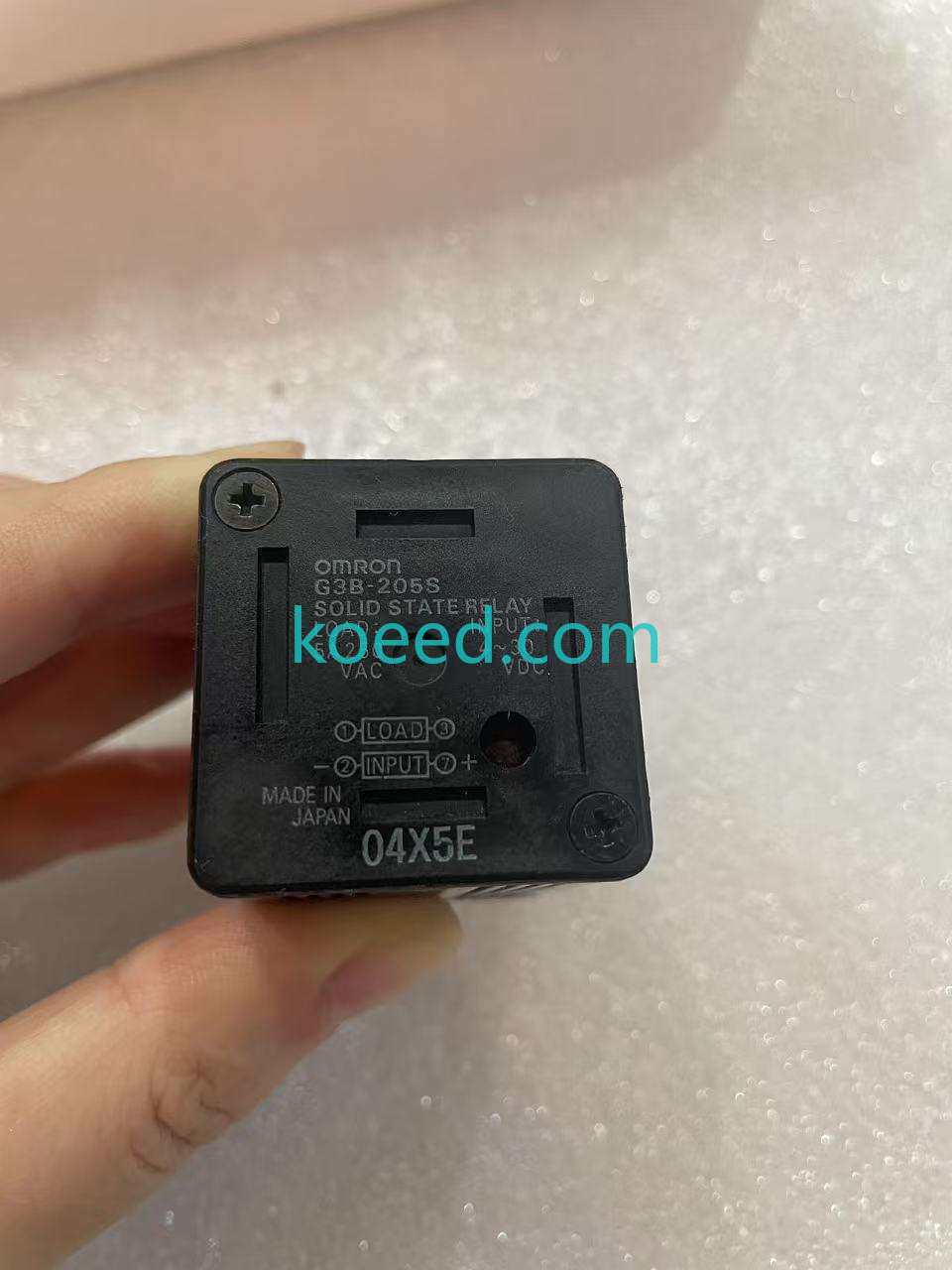

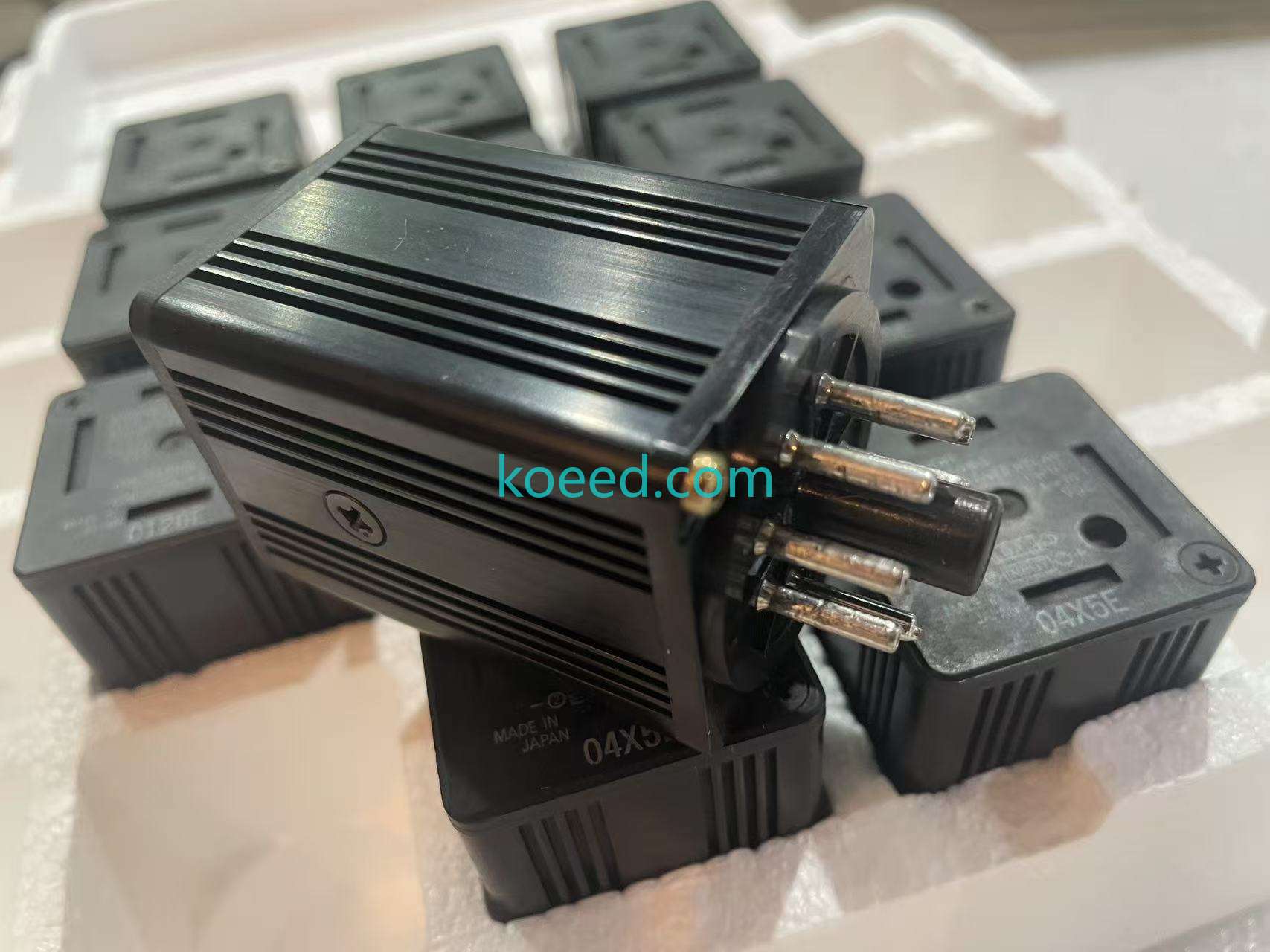

Product Images
Product Video Demonstration
Key Features & Benefits
- Zero Crossing Technology: Ensures switching at zero voltage points, minimizing electrical noise and extending load life
- Photocoupled Isolation: Provides 4000Vrms input-output isolation for enhanced safety and noise immunity
- Compact Design: Space-saving footprint ideal for high-density installations
- High Reliability: No moving parts ensures long operational life and maintenance-free operation
- Wide Control Voltage Range: Compatible with 5-24VDC control signals
- Terminal Compatibility: Compatible with MKS2P relay terminals for easy installation
- Operation Indicator: Built-in LED for visual status monitoring
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Model Number | G3B-205S | Primary model designation |
| Load Voltage Rating | 100-240VAC | Wide AC voltage range |
| Control Voltage Range | 5-24VDC | Standard industrial control voltage |
| Max Operating Input Voltage | 26.4-32VDC | Maximum control input specification |
| Relay Contact Form | 1 Form A (SPST-NO) | Single pole, single throw, normally open |
| Output Type | Zero Switching | Switches at zero voltage crossing |
| Isolation Voltage | 4000Vrms | Input-output isolation rating |
| Operation Indicator | Yes | Built-in LED status indicator |
| Terminal Compatibility | MKS2P Relay Terminals | Standard terminal compatibility |
| Special Function | Zero Cross | Zero voltage switching technology |
Industrial Applications
The G3B-205S is specifically designed for industrial automation applications where reliable AC load switching is required. Its robust construction and advanced features make it suitable for demanding environments.
Primary Application Areas:
- PLC Output Modules: Direct interface with programmable logic controllers
- Industrial Heating Control: Precise temperature regulation systems
- Motor Control Systems: AC motor starting and stopping applications
- Lighting Control: Industrial lighting and signage control
- HVAC Systems: Heating, ventilation, and air conditioning control
- Packaging Machinery: Automated packaging equipment control
- Material Handling: Conveyor systems and material transport control
Frequently Asked Questions
The G3B-205S offers several advantages over mechanical relays: no moving parts for longer lifespan, silent operation, faster switching speeds, no contact bounce, and higher reliability in high-cycle applications. The zero-crossing switching also reduces electrical noise and extends load life.
The G3B-205S supports a control voltage range of 5-24VDC, with a maximum operating input voltage of 26.4-32VDC. This makes it compatible with most industrial control systems and PLC outputs.
Yes, the G3B-205S is rated for 100-240VAC load voltage, making it suitable for standard industrial AC voltage applications. For higher voltage requirements, Omron offers other models in the G3B series with different voltage ratings.
The G3B-205S features 4000Vrms input-output isolation, providing excellent electrical safety. It also includes zero-crossing switching to minimize inrush currents and electrical noise, and built-in operation indicators for visual status monitoring.
Yes, one of the key features of the G3B-205S is its compatibility with MKS2P relay terminals, allowing for easy replacement and installation in existing systems without requiring terminal modifications.
Trust Metrics & Industry Recognition
Installation & Safety Guidelines
Important Safety Notice: Always follow proper electrical safety procedures when installing or servicing the G3B-205S. Ensure power is disconnected before installation, and verify proper grounding according to local electrical codes.
Installation Best Practices:
- Mount on appropriate heat sinks for high-current applications
- Ensure proper ventilation around the relay
- Use appropriate wire gauges for load and control connections
- Verify polarity for DC control connections
- Install surge protection for inductive loads
- Regularly inspect connections for tightness and corrosion
Technical References & Documentation
For complete technical specifications and installation guidelines, refer to the official Omron documentation:
Conclusion
The Omron G3B-205S solid state relay represents the pinnacle of reliability and performance in industrial automation switching applications. With its advanced photocoupled design, zero-crossing technology, and robust construction, it provides a superior solution for AC load control in demanding industrial environments. The compatibility with standard MKS2P terminals and wide control voltage range make it an ideal choice for both new installations and system upgrades.
Professional Recommendation: For applications requiring reliable, maintenance-free AC load switching with excellent noise immunity and safety features, the G3B-205S is highly recommended. Its proven track record in industrial applications and Omron's reputation for quality make it a trusted choice for automation professionals worldwide.
