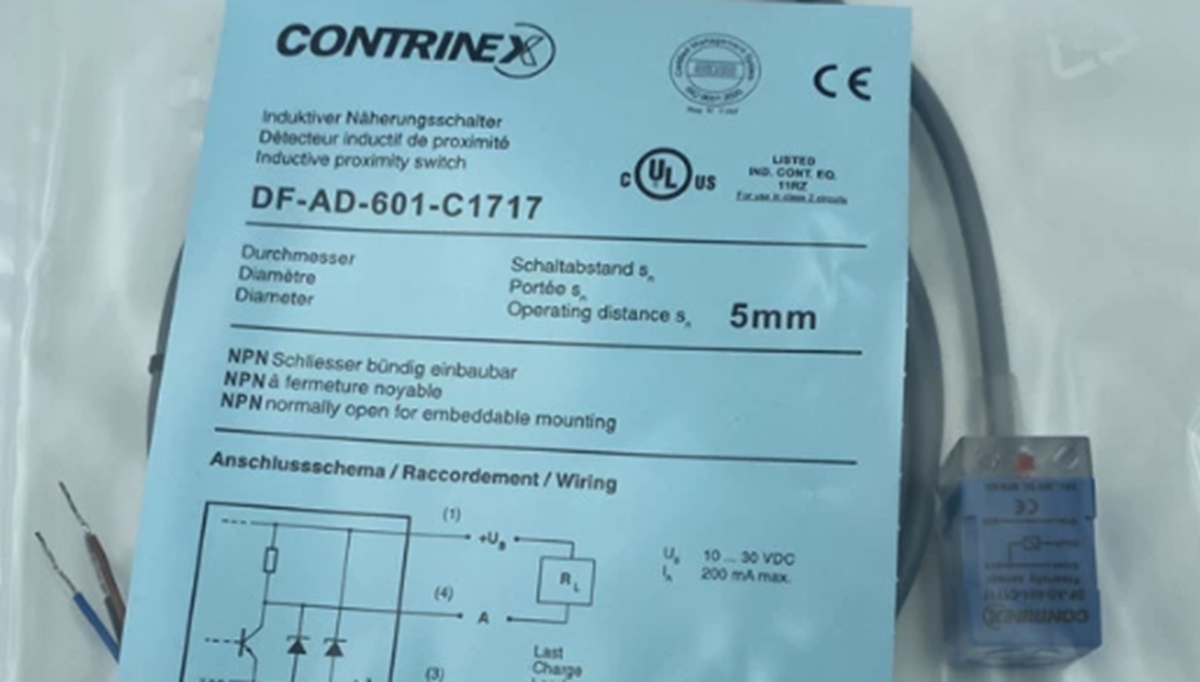

Contrinex Proximity Switch Sensor DF-AD-601-C1717

Engineer's Quick Brief

The Contrinex Proximity Switch Sensor DF-AD-601-C1717 is an industrial-grade, highly precise inductive proximity switch engineered for deterministic target detection within modern high-velocity automation networks. Manufactured by Contrinex, a global leader in intelligent sensing solutions, this versatile proximity sensor provides high repeatability and sub-millisecond reaction tracking to optimize automated sorting conveyors, machine tool axes, and robotic pick-and-place loops. Boasting a ruggedized physical layer architecture, the DF-AD-601-C1717 interfaces smoothly with MELSEC, SIMATIC, and Omron PLC input cards, offering a stable solid-state digital output loop that eliminates mechanical wear points completely.

Technical Specifications

Application Matrix

Koeed B2B Tool: Proximity Sensor Material Reduction & Clearance Sizing Calibrator

Inductive proximity switches change their real-world effective sensing distance ($S_u$) based on the specific metal compound of the target. Use this field verification tool to compute material reduction variables and verify safe clearance margins.

Troubleshooting & Field Commissioning FAQ

Q1: Why does the Contrinex proximity switch output LED remain continuously illuminated even when no target is present?

A continuous "always-on" fault condition typically stems from two root causes: an inappropriate tight mechanical mounting structure causing background metal interference, or a short circuit across the switching control loops. If the sensor is a flush-mountable variant and is embedded into a non-pre-drilled heavy steel chassis plate, the surrounding metal will excite the electromagnetic coils continuously. Alternatively, check the DC polarity layout; switching the ground drain lines or subjecting the output wire to currents exceeding 200 mA will short out the internal transistor matrix permanently.

Q2: How do technicians test individual ports and verify transistor output logic via multimeter?

Isolate the sensor lines completely from the host PLC register modules while leaving the primary 24V DC excitation lines alive across the Brown (+VCC) and Blue (-GND) wire leads. Configure your digital multimeter to monitor DC Voltage. For a standard **PNP output configuration type**, attach the positive multimeter probe to the Black output lead wire and the negative probe to the Blue ground line; when a metal plate cross-checks the sensing field, the meter must register an instant jump from zero up to the full 24V DC potential.

Q3: What parameters cause erratic or intermittent pulse dropping on high-speed automated production rails?

Intermittent signal dropping points toward active machine vibrations shifting the target object outside the real effective sensing path, or the operation rate crossing the maximum hardware **switching frequency boundary**. If the target passes the sensing face quicker than the internal ASIC oscillator loop can execute its calculation loop, the pulse will drop. Move the target physically closer to the recommended safety gap configuration zone, or damp the mechanical gantry rails to eradicate severe physical vibration tracking errors.

Cross-Reference Guide

When tracking asset ledger records, retrofitting worn sensor arrays, or optimizing plant backup inventory stocks, note the following comparative guidelines:

• Direct Brand Interchangeability: Integrates natively as an authentic replacement unit across automation platforms calling for high-performance Contrinex DF series inductive tracking modules, matching standard multi-core wire color codes.
• Universal Field Equivalents: Direct physical functional cross-alignment with high-speed M12 or customized compact cylindrical proximity sensors from global premium automation brands, such as Turck (Bi series modules), Ifm Electronic (IE series setups), Balluff, and Omron (E2E series arrays), provided operational supply voltage limits, physical switching logic (PNP vs NPN), and nominal effective sensing range constants are accurately matched within the mechanical control schematic.
