0992573694 Sevice Kit For R5 RD Oil Lubnicated Rotary Vane Vacuum Pumps

Engineer's Quick Brief

• Comprehensive OEM-Matched Fleet Maintenance: Engineered strictly to factory specifications for Busch R5 RD series rotary vane vacuum pumps, safeguarding optimal ultimate vacuum thresholds.

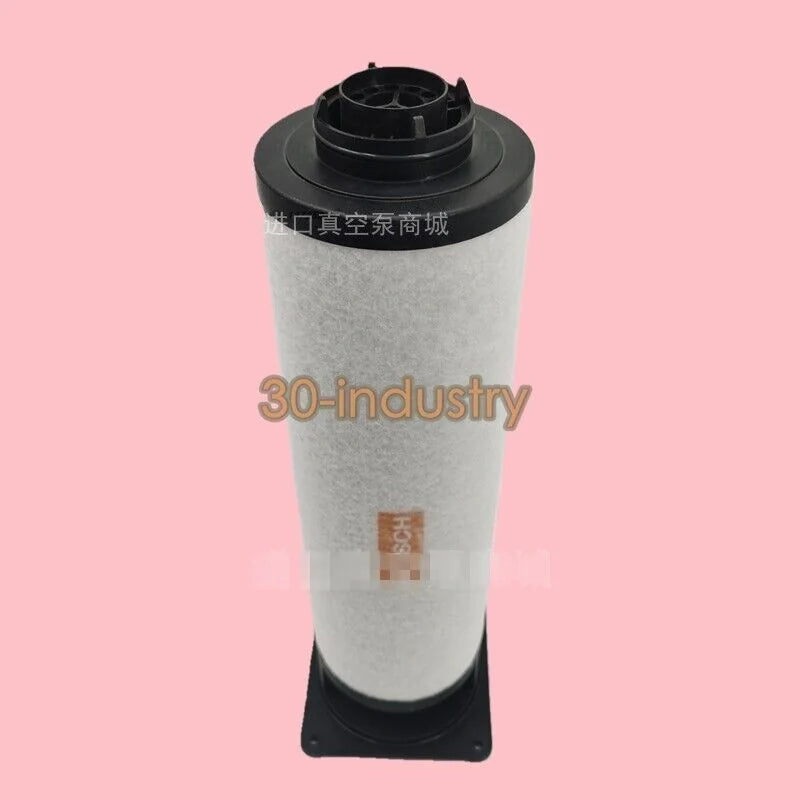

• High-Efficiency Oil Mist Sealing: Incorporates advanced micro-fiber exhaust separators to filter trace vacuum oil vapors, completely eliminating tailpipe smoking and localized ambient workspace contamination.
• Critical Leak Prevention: Outfitted with premium fluoropolymer (Viton/FKM) and elastomeric sealing gaskets to insulate vacuum chambers against volatile chemical processes and high operating temperatures.

Busch R5 RD Rotary Vane Vacuum Pump Service Kit (0992573694) Overview

The 0992573694 Service Kit is an essential, industrial-grade preventive maintenance component package manufactured for Busch R5 RD oil-lubricated rotary vane vacuum pumps. Designed to counter wear and tear on continuous production floors, this genuine alternative kit contains the full suite of operational consumables—including high-retention oil mist exhaust filters, inlet filtering meshes, and custom-profile anti-leak chamber gaskets. Regular integration of the 0992573694 assembly helps prevent oil carry-over, seals the compression stages to maintain rated volumetric displacement speeds ($m^3/h$), and preserves internal components against catastrophic wear under tough chemical or industrial processing environments.

Technical Specifications

Industrial Application Matrix

Koeed Field FAE Tool: Busch R5 RD Preventive Maintenance Interval Predictor

The structural lifespan of consumables inside the 0992573694 service kit (especially the micro-fiber exhaust separators and rubber seals) drops under intense gas loads or elevated operating temperatures. Use this interactive engineering model to estimate your optimal runtime maintenance intervals.

Field Commissioning & Component Replacement Guide

Q: What is the recommended operational sequence for replacing the components inside the 0992573694 kit?

To secure clean system sealing parameters and prevent oil carry-over drops, field mechanics must follow this maintenance protocol:

1. 运行真空泵至正常工作温度（约75-80°C），然后彻底切断主控柜电源，并执行电磁锁定隔离（LOTO）。
2. Open the oil return system drainage valves to fully empty old contaminated lubricant from the primary separator housing tank reservoir.
3. Unbolt the upper exhaust manifold box casing lid to expose the internal spent separator filter cartridges. Remove the fixing screws and discard old elements.
4. Thoroughly clean internal seating brackets using lint-free industrial wipes and a residue-free solvent wash. Ensure all baked-on oil carbon deposits are scraped clear.
5. Install the fresh exhaust filters from the 0992573694 package. Tighten the retaining bolts to standard torque specifications to compress the sealing washers evenly.
6. Scrape away old, adhered housing flange gaskets. Clean the faces, position the new custom elastomer seals from the package, re-fasten the outer casing structure, and fill with clean, specified vacuum lubricant.

Q: The vacuum pump emits heavy smoke or oil mist from the exhaust port following kit installation. What requires tracking?

Persistent exhaust smoking indicates an air bypass path around the filtering elements. Check these field maintenance metrics:

1. Inspect Separator Gasket Seating: Verify that the tiny rubber washers or integrated O-rings on the ends of the exhaust filters are seated flat inside the retention slots. If an element shifts out of square during assembly, pressurized air will bypass the micro-fiber media, throwing raw oil mist into the exhaust.
2. Verify Internal Oil Return Line Functionality: Check the pump's internal oil return line float valve configuration. If the oil return path or orifice screen is blocked by debris, filtered oil can back up in the clean exhaust chamber and get blown out the tailpipe.
3. Check for Excessive Oil Volume: Ensure the hot oil level reads strictly between the maximum and minimum indicators on the sight glass. Overfilling causes the rotors to splash oil excessively, overwhelming the separating media.

Q: Why does the pump fail to pull down to its ultimate vacuum rating after retrofitting seals?

If volumetric speed or ultimate blank-off vacuum metrics degrade after maintenance, a physical ambient gas leakage point has likely been introduced. Use a standard electronic helium leak detector or fluid tracing method to verify all outer cover interfaces. Ensure all structural perimeter bolts over the newly replaced Viton gaskets are tightened in a cross-pattern sequence to prevent housing misalignment or gap formation.

Cross-Reference Guide

The 0992573694 comprehensive service kit architecture functions interchangeably or operates as a drop-in maintenance retrofit for the following designations:

• Busch Factory Part Number Mapping: Direct equivalent substitute tracking for item code configurations 0992 573 694 and matching RD series overhaul consumables arrays.
• Compatible Pump Alignments: Fits standard Busch R5 series high-vacuum systems rating between 200 $m^3/h$ and 300 $m^3/h$ volumetric extraction parameters (Always verify specific asset data plate serial prefixes before opening seal packages).
