140ARI03010


Price:
Sale price$780.00 USD

Due to the constant fluctuations in product information, we kindly ask you to contact us before making a purchase to confirm the latest price before placing an order.

  • Business Days Only (Monday through Saturday)
Contact us By email Chat on WhatsApp
safe

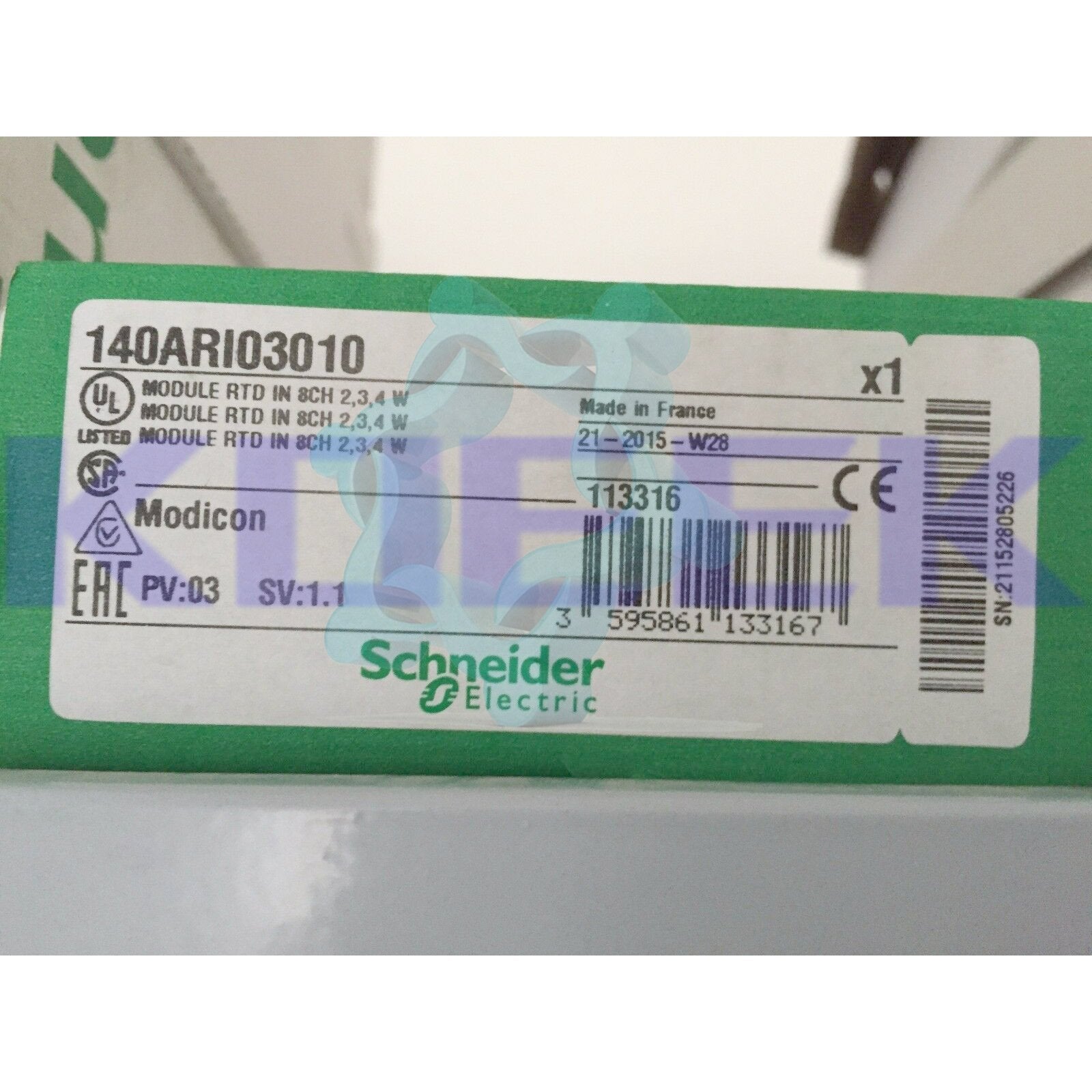

Schneider MODICON 140ARI03010 RTD IN 8CH Module

Product range: Modicon Quantum automation platform
Product Type Analog: Input Module
Analog input: quantity 8
Input type: differential
Address requirement: 9
Input word analog input type:
Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200
Analog input resolution: 13 bits
Input impedance: >= 10 MΩ
Absolute accuracy error: 0.1 °C
Linearity error: full scale +/- 0.01 % +/- 0.5 °C
Temperature offset accuracy:
+/- 0.5 °C 25 °C
+/- 0.9 °C 0...60 °C
Insulation between each channel and the bus:
2500 V DC for 60 seconds
1780 V AC 47...63 Hz for 60 seconds
Channel-to-channel isolation: 300 Vrms communication
Update time: 640 ms 1200 ms 3 wire 2 wire / 4 wire
Fault type: wire break Overtacking scale
Logo: CE
Local signal indication:
1 LED green bus communication in progress (active)
1 LED red external fault
8 LED green channels open
8 LED red channel failure
Demand bus current: 200 mA
Power consumption W: 1W
Module Classification: Standard
Product weight: 0.3 kg
