1PCS BANNER QS186E+QS18VP6R (PNP through-beam) Photoelectric Sensor

BANNER Engineering · Photoelectric Sensors · Through-Beam · QS18 Series · PNP Output

What Is the BANNER QS186E + QS18VP6R Sensor Pair?

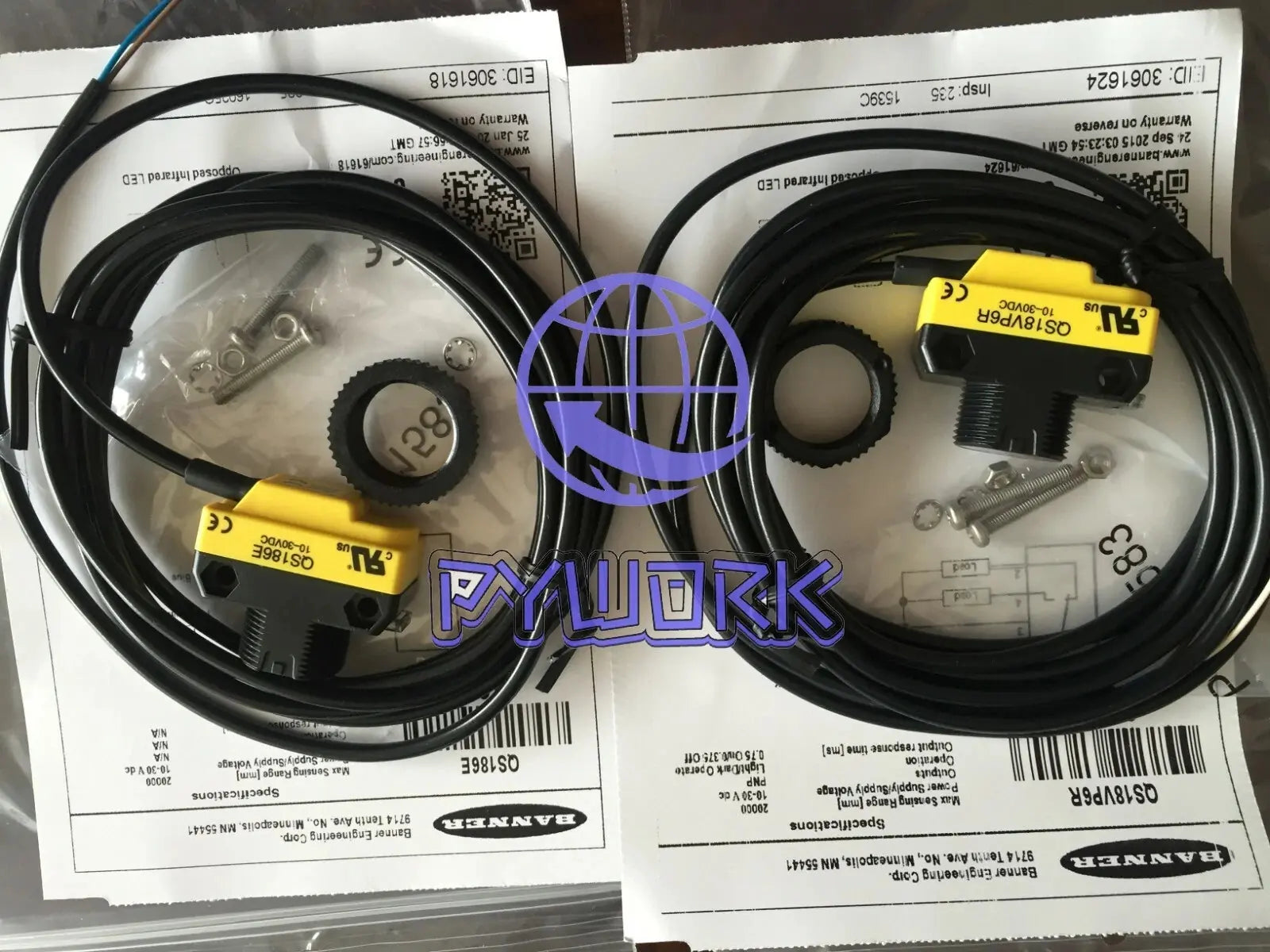

This is a through-beam photoelectric sensor pair from BANNER Engineering -- the QS186E is the emitter (light source), and the QS18VP6R is the receiver (detector) with PNP (sourcing) output. In a through-beam setup, the emitter and receiver are mounted facing each other across a gap. When an object passes between them and breaks the beam, the receiver output changes state. The QS18 series is BANNER compact workhorse sensor line, widely used on conveyor systems, packaging machines, assembly automation, and parts counting stations.

In short: A matched emitter-receiver pair that detects objects by breaking a light beam -- the sensor you install across a conveyor to count bottles, detect jammed cartons, or trigger a reject gate when a part passes by.

Through-Beam vs Diffuse vs Retroreflective -- Which One Do You Need?

Through-beam (this sensor): Emitter and receiver are separate units. Longest sensing range, highest reliability, best for opaque objects. Requires wiring on both sides of the conveyor/track. Least affected by dust, target color, or surface reflectivity.

Diffuse: Emitter and receiver in one housing. Beam bounces off the target back to the sensor. Shorter range, affected by target color and surface finish. Useful when you can only access one side of the detection zone.

Retroreflective: Emitter/receiver in one housing plus a reflector on the far side. Good range, simpler wiring than through-beam (only one cable run), but can be fooled by shiny objects that look like a reflector.

Key Specifications

Sensing range, supply voltage, response time, and wiring pinout -- verify from BANNER datasheet or the sensor label.

Frequently Asked Questions

How do I align a through-beam sensor pair properly?

The QS18VP6R receiver has an LED indicator that lights when the beam is received. Start with the emitter and receiver close together (30cm or so), roughly aimed at each other. Move the receiver until the LED comes on, then lock it down. Walk the emitter back to its final position while watching the LED -- it should stay lit. If the LED flickers, the alignment is marginal. On long-range installations, use a laser pointer through the emitter housing to rough-align, then fine-tune with the LED.

What does PNP output mean, and will this work with my PLC?

PNP (sourcing) output means the sensor switches the positive voltage to the load -- when the output is ON, it connects the signal wire to +24V DC. This is the standard for most European and Asian PLC inputs (Siemens, Mitsubishi, Omron). If your PLC has NPN (sinking) inputs that expect a connection to 0V/ground, you need an NPN sensor, not this PNP model. Mixing PNP sensors with NPN inputs will not damage anything, but the signal will be inverted or absent.

Can I use this sensor in a dusty or washdown environment?

The QS18 series has an IP67 rating -- protected against dust ingress and temporary water immersion. It will survive occasional washdown and dusty factory air. However, through-beam sensors can false-trigger if heavy dust buildup on the lens attenuates the beam below the receiver threshold. In very dusty environments, either clean the lenses regularly or consider an ultrasonic sensor that does not depend on optical clarity.
