Schneider 1SMPC5033-0C — Modicon MPC Servo Drive Module (PacDrive / Lexium M Motion Controller)

SCHNEIDER · MODICON MPC · PACDRIVE M · IN STOCK · 90-DAY WARRANTY

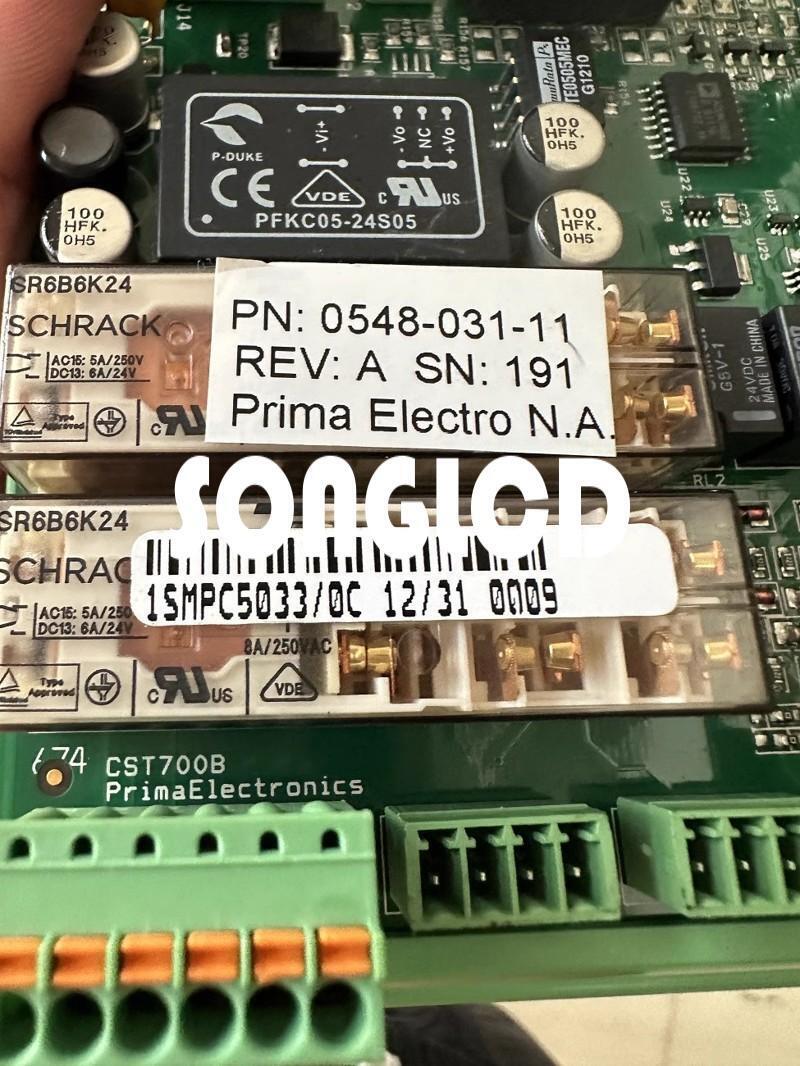

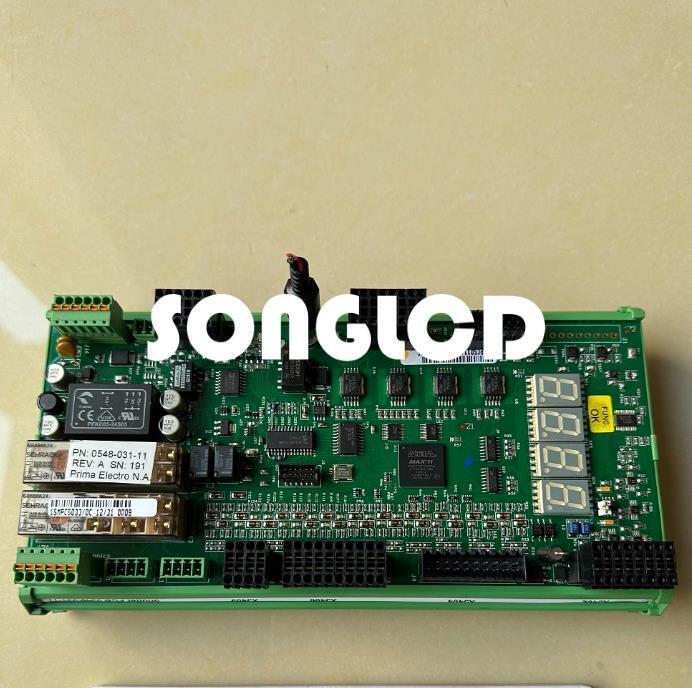

The listing code CST700B-0548-031-11-1SMPC5033-0C is a composite part string. The CST700B-0548-031-11 prefix is a system-integrator or panel-builder tag, while the load-bearing component is the 1SMPC5033-0C — a Schneider Electric Modicon MPC multi-axis motion controller in the PacDrive M / Lexium family. KOEED sources the genuine 1SMPC5033-0C core, decodes the composite string for the engineer, and ships worldwide with a 90-day functional warranty. Send your BOM to Moritta@KOEED.COM for a quote within 24 hours.

The Modicon MPC sits between a traditional PLC and a high-end CNC controller, combining IEC 61131-3 logic, real-time servo loop closure, and Sercos / CANopen / Modbus TCP fieldbus on a single chassis. It is the canonical Schneider platform for machines that need deterministic motion of eight or more axes, electronic camming, and tight registration — packaging lines, converting, hoisting, printing, and high-end material handling. Browse the wider Schneider Modicon and Lexium catalog or compare it with Siemens SIMATIC and Allen-Bradley ControlLogix controllers we stock side by side.

Key Technical Specifications & P/N Decode

The composite string is best read in two halves. Treat the CST700B-0548-031-11 portion as integrator / panel-builder tagging (cabinet code, line code, position slot) and the 1SMPC5033-0C portion as the actual catalog number to source and cross-reference. Below is the ledger for the underlying Schneider component.

Note: exact slot count, bus-master role and firmware revision depend on the surrounding cabinet. Confirm your cabinet layout and backplane choice with our team before ordering. Reference the contact page or the AI Diagnostic Tool for nameplate verification.

Application Scenarios — Where the Modicon MPC Fits

The Modicon MPC was designed for machinery builders who outgrew a standalone Allen-Bradley or Siemens PLC + external motion card setup and needed tighter coupling between logic and motion. It is the workhorse controller behind many OEM machines that ship globally under multiple brand labels.

• Packaging machinery — form-fill-seal, vertical baggers, case packers, palletizers, labelers with electronic camming and registration.
• Converting & printing — flexographic presses, slitter-rewinders, laminators, digital printers needing multi-axis tension control and web registration.
• Material handling — AS/RS shuttles, conveyors, sortation, AGV coordination, hoisting and crane drives.
• Hoisting & lifting — theatre rigging, stage machinery, crane anti-sway, elevator door systems.
• High-end machine tools — woodworking CNC, stone cutting, glass handling, where Fanuc or Yaskawa drives are paired with the MPC brain.
• Specialty OEM machines — tire-building, semiconductor back-end, pharmaceutical fill-finish, food dosing lines.
• Retrofit / migration projects — replacing obsolete LMC058, LMC Pro, Premium TSX or Twido controllers with a current Modicon MPC.

Cross-brand context: if the machine builder is using Mitsubishi MELSEC or Omron SYSMAC on the logic side, the MPC can still appear on the motion bus as a slave node. KOEED keeps the multi-brand cabinet ready in one BOM — quote the lot at Moritta@KOEED.COM.

Integration & Wiring Notes — Modicon MPC Fieldbus & Topology

Wiring the MPC inside a PacDrive sub-rack is straightforward if you respect Schneider's topology rules. The 1SMPC5033-0C is the controller, the LMC / Lexium drives are the slaves, and the fieldbus is the nervous system.

• Sercos III ring: the MPC acts as Sercos master; Lexium 32 / 52 / 62 drives form a closed ring. Use shielded Cat 5e or better; do not mix Sercos and standard Ethernet in the same managed switch port.
• Modbus TCP / EtherNet/IP uplink: the MPC exposes a standard Ethernet port for SCADA, HMI (Magelis / KEYENCE vision systems) and PLC-to-PLC handshake with Allen-Bradley ControlLogix or Siemens S7-1500 cells.
• CANopen (legacy): still supported for older Lexium 05 / integrated Lexium drives. Verify CANopen node IDs do not collide with any Panasonic FP or Omron CP1 slaves on the same trunk.
• Encoder feedback: route resolver / EnDat / Hiperface pairs in shielded twisted pairs, separated by at least 100 mm from VFD power wiring. Use a common ground bar at the cabinet entrance.
• Power & grounding: the MPC runs on 24 Vdc from a Schneider Phaseo or equivalent; ground the sub-rack chassis to the cabinet PE bus with a dedicated short, low-impedance strap.
• Safety integration: STO on Lexium drives is wired to a PacDrive Safe module; the MPC supervises the safety state via Sercos. Do not bypass the Safe module — it is read by the EcoStruxure Control Expert safety task.
• HMI hand-off: the cabinet HMI can be a Magelis GTU, an Omron NB panel, or a third-party KEYENCE touch screen; all three communicate over Modbus TCP without extra gateways.

If you are mixing the MPC with Mitsubishi MR-J4 or Yaskawa Σ-7 drives, plan a gateway such as a Modicon M580 BMENOCO0100 or a third-party EtherNet/IP-to-CC-Link bridge. KOEED keeps bridging modules in stock and can ship them with the MPC in one consignment.

Installation & Commissioning Tips — EcoStruxure Control Expert Tooling

The 1SMPC5033-0C is configured and programmed in Schneider's EcoStruxure Control Expert (formerly SoMachine / SoMachine Motion). The toolchain is free to download, the controller firmware is the genuine Schneider image, and the project is exportable as a full archive for FAT / SAT documentation.

• Firmware & image: match the controller firmware to the Lexium drive firmware before first power-up. A mismatched Sercos stack is the most common cause of "drive does not come online" at first commissioning.
• Project backup: always export the full project (.smcproj / .zeproj archive) after a successful SAT. Send the archive alongside the controller if a swap is needed — KOEED will pre-load the project on the replacement unit.
• Axis tuning: use the integrated PAC (Profile Adjustment & Commissioning) tool inside EcoStruxure. It walks through the auto-tuning routine that calculates the Kp / Ki gains for each Lexium axis.
• Power-on sequence: close 24 Vdc → wait for MPC and Safe module ready → close the main contactor on the Lexium drive bus. Reversing the sequence trips the Safe module.
• Spare philosophy: for production-critical OEM machines, keep at least one spare MPC and one spare Lexium drive on the shelf. KOEED ships both under the same purchase order so the spares are firmware-matched on day one.
• Diagnostic shortcuts: if a drive refuses to come up, use the KOEED AI Diagnostic Tool with a phone photo of the Sercos status LED — it can suggest the most common root causes within seconds.
• Documentation: keep the nameplate, EcoStruxure archive, and the original cabinet drawing. KOEED will only need a photo of the nameplate and the project archive to verify that a replacement 1SMPC5033-0C is a drop-in swap.

For reference, the same commissioning discipline applies to other multi-axis platforms KOEED stocks — Siemens SIMOTION, Allen-Bradley Kinetix, Mitsubishi iQ-R motion and Yaskawa MP3300. Read the engineering notes on the Daily PLC News blog for weekly field tips.

Procurement, Warranty & Lead Time

Every 1SMPC5033-0C core sourced under the composite code CST700B-0548-031-11-1SMPC5033-0C ships with a 90-day functional warranty, in-stock status, and worldwide delivery via DHL or FedEx. KOEED also carries the surrounding Lexium drive family and the cabling kit so a single BOM can be quoted, packed and dispatched as one shipment.
