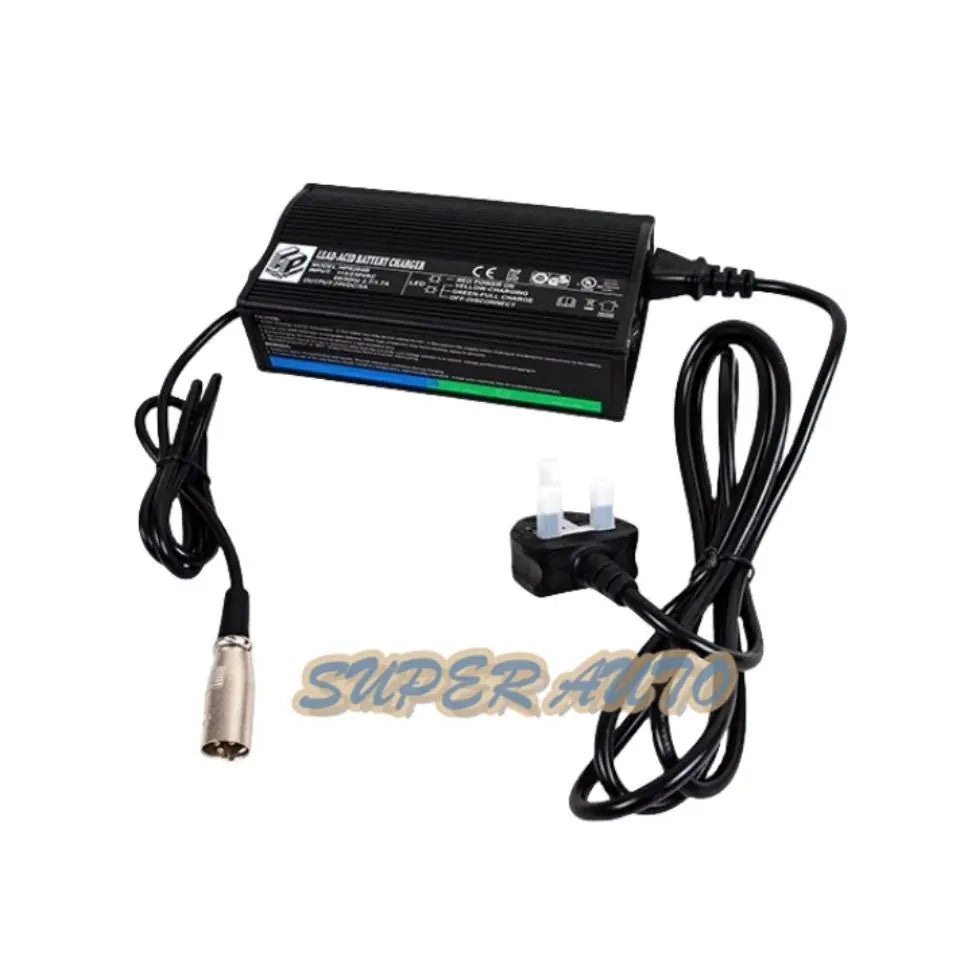

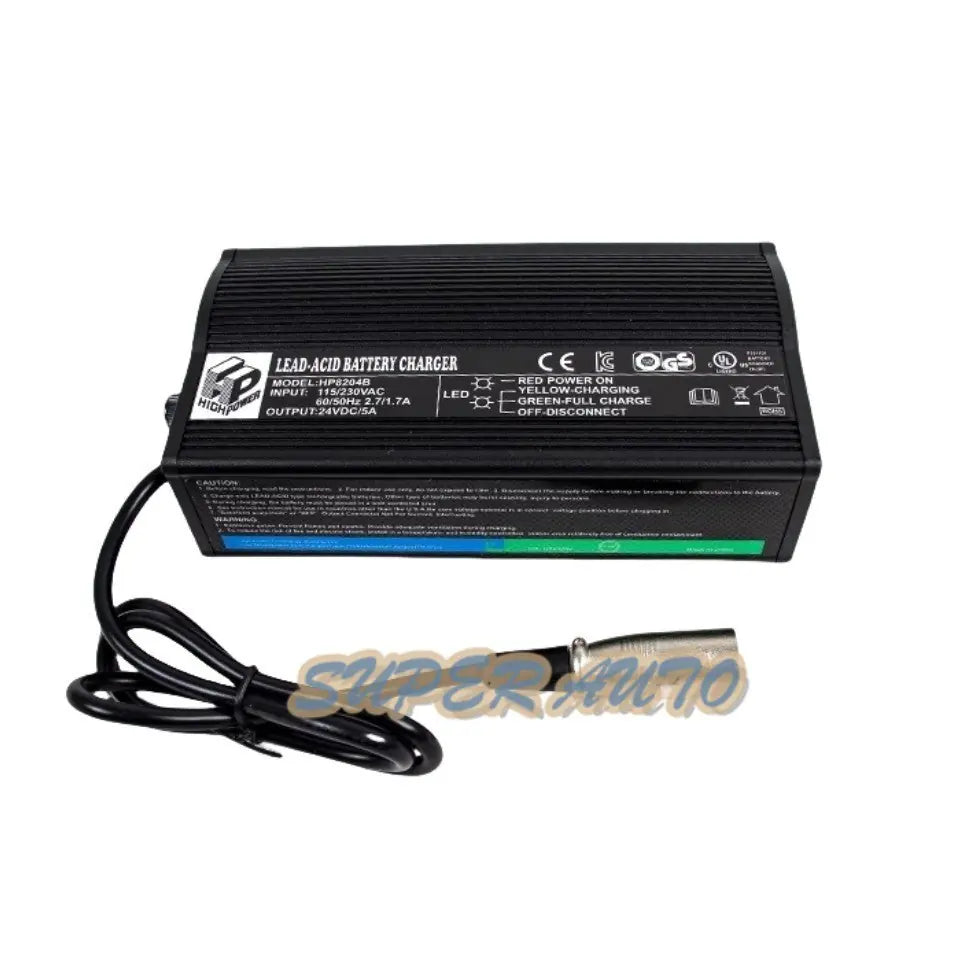

1Pcs HP8204B Electric Wheelchair Battery Charger 24V 5A/6A

KOEED · Medical Equipment Parts · Battery Chargers · In stock

What Is the HP8204B Electric Wheelchair Battery Charger?

The HP8204B is a dedicated 24V DC battery charger designed for electric wheelchair power packs and mobility scooter battery systems. It delivers a regulated charging current of either 5A or 6A (selectable variant), specifically calibrated for sealed lead-acid (SLA) and AGM deep-cycle batteries commonly found in medical mobility equipment. Unlike generic bench power supplies, the HP8204B implements a multi-stage charge profile that transitions through bulk, absorption, and float phases to protect battery health over repeated cycles.

In short: The HP8204B is a purpose-built 24V wheelchair battery charger that charges at 5A or 6A with proper stage management — a direct replacement for worn or failed OEM chargers on many electric wheelchair models, available now through KOEED with worldwide delivery.

Key Features and What They Mean for Your Operation

1. Three-Stage Charging Algorithm

What it means: The charger automatically sequences through bulk charge (constant current), absorption (constant voltage with tapering current), and float (maintenance voltage) without user intervention.
Why it matters: Improper charging is the number one cause of premature SLA battery failure. A charger that over-volts during float or holds absorption too long will sulfate the plates and reduce usable capacity within months.
Result: Batteries reach full state-of-charge safely and stay topped off without overcharging, extending service life by 30-50% compared to single-stage trickle chargers.

2. Dual Amperage Options (5A / 6A)

What it means: The HP8204B is available in two output current variants: a 5A model for standard 24V packs in the 20-35Ah range, and a 6A model for larger 35-55Ah packs that benefit from a faster bulk phase.
Why it matters: Selecting the correct charge rate for your specific battery capacity prevents both under-charging (battery never reaches full SOC) and excessive charge current (which overheats cells and accelerates water loss in flooded types).
Result: You match charge current to battery capacity precisely, ensuring each charge cycle is both time-efficient and gentle on the cells.

3. Short-Circuit and Reverse-Polarity Protection

What it means: Built-in detection circuits prevent damage to both the charger and the battery if output leads are accidentally reversed or shorted during connection.
Why it matters: In a busy repair shop or care facility where multiple devices are charged daily, a momentary wiring mistake should not destroy a charger — or worse, spark near a hydrogen-emitting battery.
Result: The charger self-protects and indicates a fault condition instead of releasing smoke, reducing replacement costs and eliminating a fire-risk scenario.

4. LED Status Indication

What it means: Front-panel LED indicators communicate the active charge stage (bulk/absorption/float) and any fault conditions at a glance, without needing a multimeter or display.
Why it matters: Caregivers and maintenance staff can confirm at a distance whether a wheelchair is charging normally or needs attention — no technical training required.
Result: Faster fault identification, fewer batteries left discharged overnight because someone assumed the charger was working.

Key Specifications

Specifications above reflect the HP8204B datasheet where available. Always verify connector compatibility and charge current rating against your wheelchair's battery specification before ordering. For missing parameters, refer to the label on your existing charger or contact us.

Typical Applications

• Electric Wheelchair Fleet Maintenance: Hospitals, nursing homes, and assisted-living facilities running multiple mobility chairs need reliable chargers that can cycle daily without drifting out of calibration. The HP8204B handles continuous rotational use across a chair fleet.
• Mobility Scooter Battery Service: Many 24V mobility scooters use identical SLA pack configurations. This charger serves as a direct replacement when the original charger is lost, damaged, or outputting incorrect float voltage.
• Rehabilitation Equipment Repair Shops: Third-party medical device service centers stocking common charger models to reduce patient wait times. A single compatible charger covers dozens of wheelchair brands that use 24V SLA architecture.
• Home Healthcare: Individual users who rely on a power wheelchair as their primary mobility device. A backup charger ensures no interruption in mobility if the primary unit fails.
• Marine and RV Auxiliary Batteries: 24V house battery banks on boats and recreational vehicles using AGM deep-cycle batteries can be maintained with the HP8204B during storage periods, preventing sulfation during off-season layup.

Frequently Asked Questions

"How do I know whether to pick the 5A or 6A version for my wheelchair?"

Check the Ah (amp-hour) rating on your wheelchair's battery — it is usually printed on the battery case label. As a general guideline, choose 5A for packs rated 20-35Ah and 6A for packs rated 35-55Ah. Charging at roughly 15-20% of the battery's Ah rating is considered safe for SLA chemistry. If your existing OEM charger is labeled with its output current, match that value. When in doubt, the 5A option is the more conservative choice and will still fully charge larger packs, just over a longer period.

"Will this charger work with lithium (LiFePO4) wheelchair batteries?"

The HP8204B is designed for sealed lead-acid, AGM, and gel battery chemistries. Its absorption and float voltage setpoints are calibrated for the 2.30-2.35V per cell range typical of SLA. Lithium iron phosphate (LiFePO4) batteries require different voltage thresholds and a different charge termination logic (typically constant-current/constant-voltage with no float stage). Using an SLA charger on a lithium pack risks undercharging or failing to balance the cells properly. We recommend using a charger specifically rated for LiFePO4 if your wheelchair has been retrofitted with a lithium pack.

"My old charger connector doesn't match the HP8204B — can I swap the plug?"

The HP8204B ships with a standard connector (verify the specific type from the listing photos). If your wheelchair uses a different connector — common alternatives include Neutrik XLR 3-pin, barrel jack, or proprietary rectangular plugs — you have two options: purchase a pre-made adapter cable, or cut and splice your old charger's connector onto the HP8204B output cable. The second approach preserves correct polarity but should only be done by someone comfortable with DC wiring. Always triple-check polarity at the battery port before connecting. If you need a specific connector type, email us the details and we can check availability.

"How long does a full charge take with this charger?"

Charge time depends on the battery's amp-hour capacity and depth of discharge. For a typical 35Ah wheelchair battery discharged to 50% (about 17.5Ah to replenish), the 5A model will complete a full charge in approximately 4-5 hours, while the 6A model finishes closer to 3.5-4 hours. The absorption stage tapers current as the battery approaches full, so the last 10-15% of charge always takes proportionally longer than the bulk phase. A deeply discharged 55Ah pack on the 5A charger could take 10-12 hours for a complete cycle.

"Can I leave the charger connected to the battery indefinitely?"

Yes — once the HP8204B completes the absorption stage, it drops to a maintenance float voltage that is safe for indefinite connection. This is the correct way to store a wheelchair that is not in daily use. The float stage counteracts the natural self-discharge of lead-acid cells (typically 3-5% per month at room temperature) without overcharging. However, you should still inspect the battery water levels periodically if using flooded (non-sealed) types, as even float charging causes minimal electrolysis over months.
