YAKO

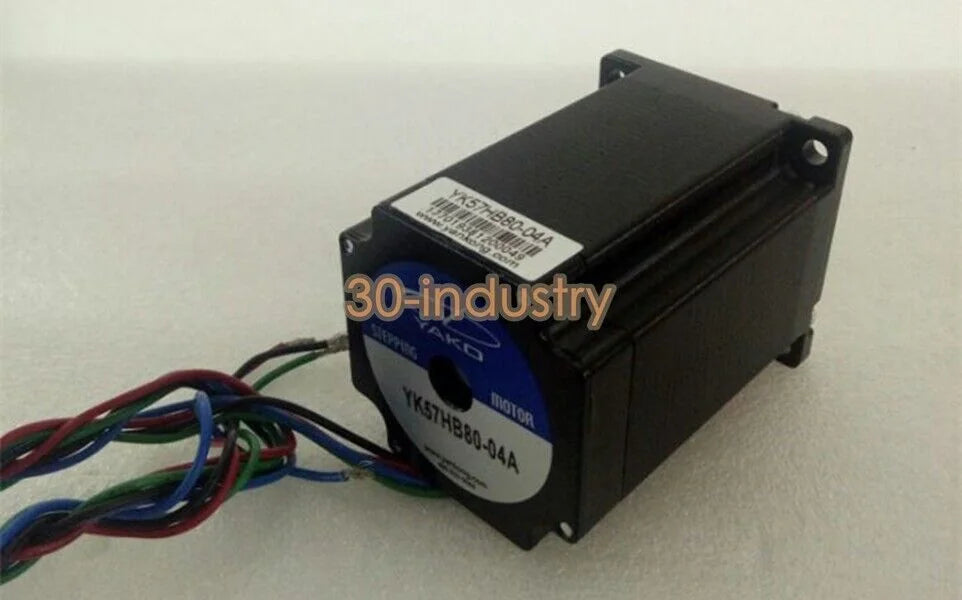

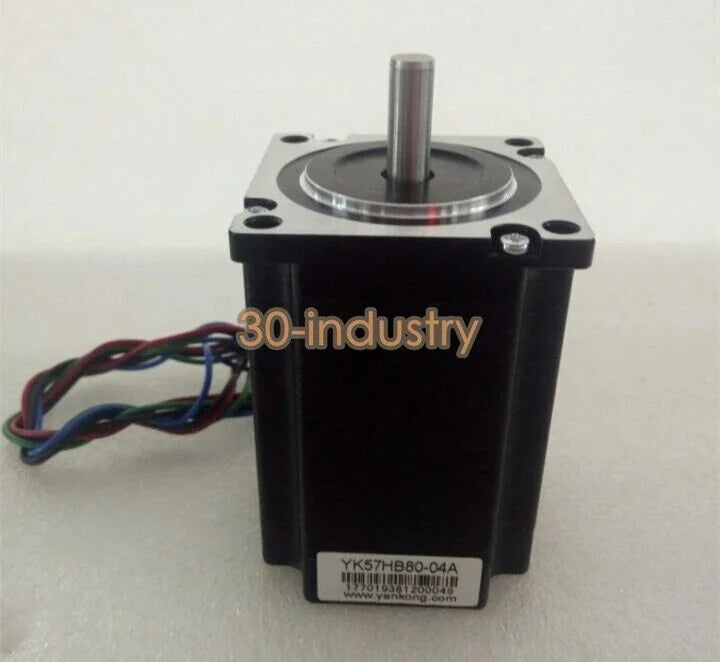

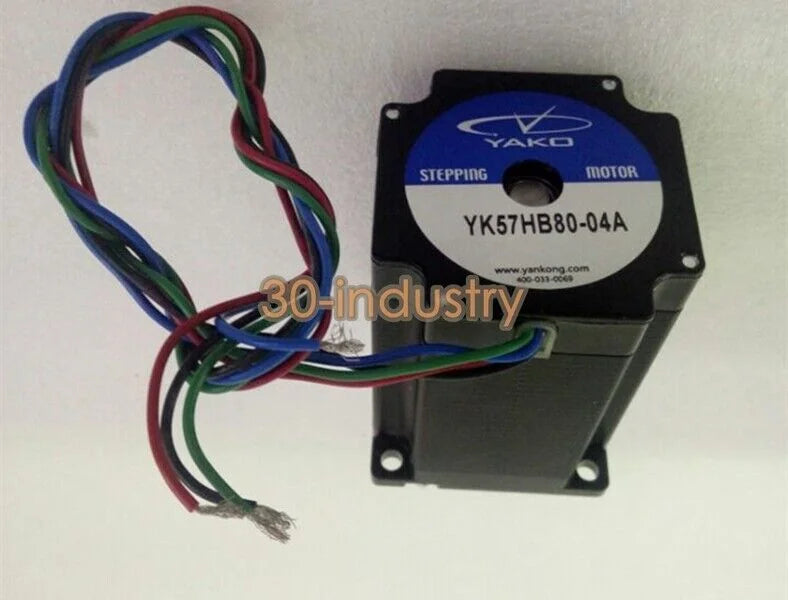

YAKO YK57HB80-04A Two-Phase Stepping Motor - 1 Piece

YAKO YK57HB80-04A Two-Phase Stepping Motor - 1 Piece

$239.83 USD
$239.83 USD $239.83 USD
Sale Sold out
Shipping calculated at checkout.
MPN YK57HB80-04A
model YK57HB80-04A
weight 1.5 kg
diameter 57 mm
connectors 4-pin connector
step_angle 1.8 degrees
phase two-phase
length 80 mm
rated_current 2.5 A
holding_torque 1.2 Nm
shaft_diameter 8 mm
View full details

  • step 1: Quote Or Shop Now

    You can place an order directly or contact us via email and whatsapp for a quote

  • step 2: Confirmation and delivery

    After placing an order, we will contact you by email or WhatsApp within three days to provide photos and videos of the product for confirmation and then ship it.

Customers are saying

4.99 ★ (1084)
Verified

Description


YAKO YK57HB80-04A Two-Phase Stepping Motor - 1 Piece

The YAKO YK57HB80-04A is a high-quality two-phase stepping motor designed for precision machinery. With a step angle of 1.8 degrees, this motor provides exceptional accuracy and reliability. The YK57HB80-04A features a holding torque of 1.2 Nm, making it suitable for a range of applications, including robotics, CNC machines, and automated systems. The motor's rated current is 2.5 A, ensuring consistent performance during operation. Additionally, the compact dimensions of 80 mm in length and 57 mm in diameter make the YK57HB80-04A an ideal choice for tight spaces. With its robust construction and excellent performance characteristics, the YAKO YK57HB80-04A is a top choice for engineers and hobbyists alike.

Engineer's Quick Brief

  • YAKO YK57HB80-04A is a 57 mm two-phase hybrid stepping motor designed for precise incremental motion control applications.
  • 1.8° step angle enables accurate positioning in CNC machines, automation stages, and industrial feeding systems.
  • 1.2 Nm holding torque provides stable low-speed torque output for medium-load positioning tasks.
  • Optimized for integration with microstepping drivers, PLC pulse controllers, and motion control systems.
  • Commonly deployed in CNC routers, engraving machines, robotics, labeling equipment, and conveyor positioning systems.

SEO Introduction

The YAKO YK57HB80-04A is a professional-grade two-phase hybrid stepper motor engineered for industrial motion control environments requiring reliable torque, repeatable positioning accuracy, and stable pulse-driven operation. Featuring a 1.8-degree full step angle, 57 mm frame size, and 1.2 Nm holding torque, this stepping motor is widely used in CNC automation, robotic positioning systems, industrial conveyors, pick-and-place mechanisms, and precision feeding applications.

The motor supports integration with standard microstepping drivers and pulse-direction controllers commonly used in PLC automation architectures. Its compact structure and predictable motion response make it suitable for industrial machinery requiring repeatable angular displacement and controlled acceleration profiles.

Technical Specifications

Parameter Specification
Manufacturer YAKO
Model YK57HB80-04A
Motor Type Two-Phase Hybrid Stepper Motor
Phase Configuration 2-Phase
Step Angle 1.8°
Holding Torque 1.2 Nm
Rated Current 2.5 A
Frame Diameter 57 mm
Body Length 80 mm
Shaft Diameter 8 mm
Connector Type 4-Pin Connector
Weight 1.5 kg
Control Method Pulse + Direction
Typical Driver Compatibility Microstepping Stepper Drivers
Industrial Applications CNC, Robotics, Automation, Positioning Systems

Application Matrix

Industry Application Operational Benefit
CNC Machinery Axis Feed Control Accurate incremental positioning
Industrial Robotics Rotational Motion Systems Stable low-speed torque delivery
Packaging Equipment Label Positioning Repeatable pulse-controlled movement
Conveyor Systems Indexing Mechanisms Precise stop-and-go transport control
Automated Inspection Linear Positioning Consistent motion repeatability

Koeed B2B Tool — Stepper Resolution Calculator

This calculator helps engineers determine the effective pulse resolution of the YAKO YK57HB80-04A when using different microstepping configurations.



Troubleshooting & FAQ

Why is the stepper motor vibrating but not rotating?

This typically indicates incorrect phase wiring or insufficient driver current configuration. Verify coil pair assignments and ensure the driver current matches the motor rated current specification.

Can the YK57HB80-04A be used with microstepping drivers?

Yes. The motor is compatible with standard microstepping stepper drivers that support pulse-direction control interfaces.

What causes overheating in stepper motor applications?

Excessive driver current, poor ventilation, or continuous holding torque operation can increase motor temperature during extended duty cycles.

How should the motor be mounted in CNC systems?

The motor should be mounted on a rigid mechanical structure with accurate shaft alignment to minimize resonance and mechanical vibration.

Is this motor suitable for closed-loop control systems?

The motor itself is an open-loop stepping motor, but it may be integrated into hybrid closed-loop architectures when paired with external encoders and compatible controllers.

Cross-Reference Guide

  • YK57HB80-04 — Alternate suffix variation within the same YAKO 57 mm stepper family.
  • NEMA 23 Stepper Motors — Equivalent frame-size category commonly used in CNC automation systems.
  • 57BYGH Series — Comparable industrial hybrid stepper motor platform used in motion control applications.
  • 2-Phase 1.8° Hybrid Steppers — Standard industrial positioning motor architecture compatible with pulse-direction drivers.
