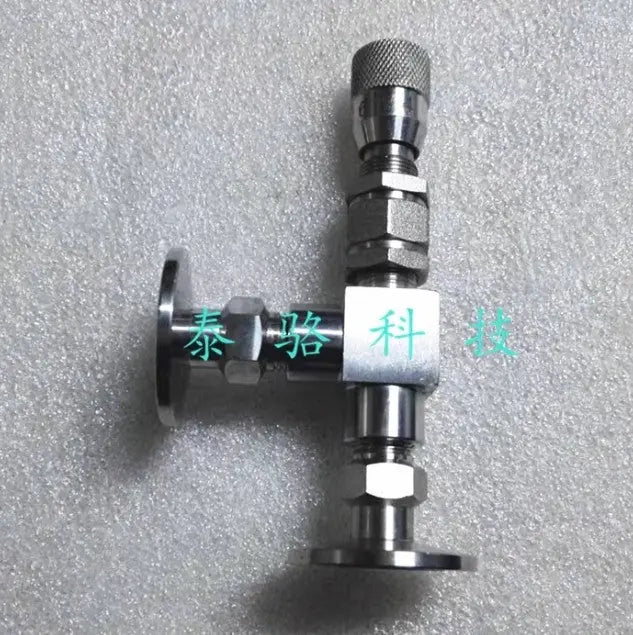

What Is the KF Needle Valve Vacuum Micro-Adjustment Valve?

This is a right-angle needle valve with KF (Klein Flange / NW) vacuum fittings, designed for precise manual control of gas flow into a vacuum chamber — a process called controlled leak or gas dosing. The KF flange standard uses a clamp and O-ring seal that is tool-free, quick to assemble, and rated for vacuum levels down to roughly 10^-8 mbar when used with appropriate O-rings. The right-angle body places the adjustment knob perpendicular to the gas flow path, which is convenient when the valve body is installed against a chamber wall or in a cramped vacuum system manifold.

In short: A precision-adjustable gas leak valve that connects via KF vacuum flanges — used to introduce a tiny, controlled flow of gas into a vacuum chamber for sputtering, plasma processing, backfilling, or pressure regulation.

Choosing the Right KF Size and Understanding the Valve

1. KF16, KF25, KF40: What the Numbers Mean

KF sizes are nominal bore diameters in millimeters: KF16 has a ~16mm bore (actual flange OD ~30mm), KF25 has a ~25mm bore (OD ~40mm), KF40 has a ~40mm bore (OD ~55mm). The valve is available in multiple sizes — select the one matching the port on your vacuum chamber, manifold, or tee. A KF16 valve on a KF25 port can be adapted with a reducing centering ring, but the smaller bore will limit conductance. For gas dosing applications where flow rates are tiny, this rarely matters. For pumping-speed-critical applications, match the valve size to the port size.

2. Needle Valve Precision: What Micro-Adjustment Means

A needle valve uses a tapered needle that advances into a conical seat as you turn the knob. The long taper and fine thread pitch mean that one full turn of the knob produces a very small change in the orifice area — which translates to fine control over the leak rate. This is important when you are trying to maintain a specific pressure in the 10^-3 to 10^-6 mbar range, where even a tiny excess gas flow overwhelms the vacuum pump. The multi-turn knob gives you the resolution to dial in a stable pressure without overshooting.

3. Right-Angle Design: When It Helps and When It Does Not

The right-angle body places the knob facing outward from the mounting plane, which saves space in a stacked manifold and keeps the knob accessible when multiple valves are mounted side by side. The trade-off is slightly reduced conductance compared to a straight-through valve, but for leak-rate control (where you are intentionally restricting flow) this is irrelevant. If you are using the valve as an isolation valve (fully open or fully closed) rather than for flow control, a straight-through or ball valve would give better conductance.

Key Specifications

Frequently Asked Questions

How do I know which KF size I need for my vacuum system?

Measure the outer diameter of the flange on your chamber port or existing fitting. KF16 flanges have an OD of approximately 30mm, KF25 is approximately 40mm, and KF40 is approximately 55mm. Alternatively, read the size marking on the flange face or on the clamp you currently use. If you are building a new system, KF25 is the most common size for general-purpose vacuum plumbing up to roughly 100mm chamber diameter. KF16 is common on small analytical instruments; KF40 is used for higher pumping speed requirements.

Do I need a centering ring and clamp separately, or are they included?

Verify from the listing details whether the valve comes with a centering ring (the metal ring with an O-ring that sits between the two flange faces) and a clamp. Most KF valves are sold as the valve body only — you will need a KF centering ring with O-ring (Viton for general vacuum, Buna-N for rough vacuum only) and a KF clamp (sometimes called a clamp chain or toggle clamp) for each side of the valve. If you need these, check our collections for KF fittings and accessories.

How fine is the flow control — can I maintain a stable pressure in the 10^-5 mbar range?

Needle valves can control leak rates down to roughly 10^-9 to 10^-10 mbar-L/s when fully closed (the valve's inherent leak rate across the seat), and can be adjusted to maintain chamber pressures from atmosphere down to the 10^-7 mbar range, depending on your pump's pumping speed. Stability at a given pressure depends on: the valve's fine-thread pitch (more turns per unit of needle travel = finer control), the gas supply pressure upstream of the valve, and the pumping speed downstream. For sub-10^-5 mbar precision, a mass flow controller or a dedicated UHV leak valve with a sapphire seat gives better stability than a general-purpose needle valve.

Can I use this valve with corrosive or reactive gases?

The stainless steel body is compatible with many process gases, but the O-ring material in the centering ring and the internal needle seat material determine chemical compatibility. Standard Viton O-rings are compatible with most inert gases (N2, Ar, He), oxygen, and many non-halogenated process gases. For highly reactive gases (chlorine, fluorine, HCl vapor), you need perfluoroelastomer (FFKM / Kalrez) O-rings and a valve with a metal-to-metal or PCTFE seat. If you are unsure about compatibility, contact us with your gas species and concentration.
