What Is the MAHLE ARD1353 Contactor?

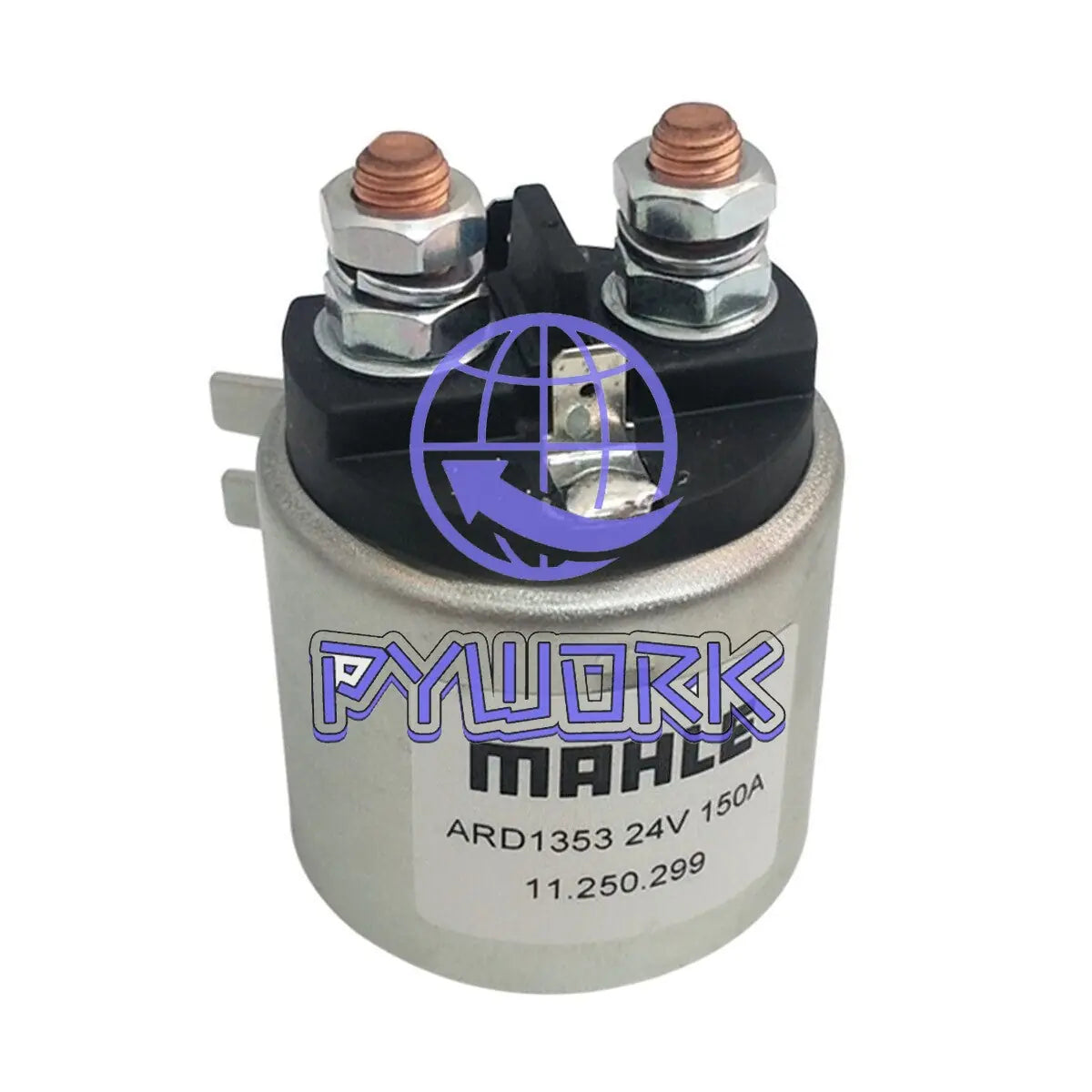

The MAHLE ARD1353 is a 24V DC magnetic contactor rated at 150A continuous, part number 11.250.299. Unlike a standard automotive relay which is designed for intermittent duty, this is a contactor -- built for continuous-duty switching of high-current DC circuits in industrial environments. It is commonly found as the main start switch in pump stations, hydraulic power units, battery bank isolation systems, and heavy equipment where a low-current control signal (switch, PLC output, or float switch) must reliably energize a high-current motor or pump circuit.

In short: A heavy-duty DC contactor for switching 150A loads -- the component that sits between a float switch and a 2HP pump motor, making and breaking the main power circuit thousands of times without welding the contacts.

What Separates a Contactor from a Relay

A contactor is built for frequent, high-current switching. The ARD1353 uses silver-alloy contacts that resist welding under high inrush currents -- when a pump motor starts, it can draw 3-7x its running current for the first few hundred milliseconds. Standard relay contacts would spot-weld under that surge. The contactor arc chutes, magnetic blowout, and contact gap are all designed to extinguish the DC arc (which is harder to interrupt than AC because there is no zero-crossing). The coil is also rated for continuous energization -- it will not overheat if held closed for hours while the pump runs.

Installation Checklist

1. Mount it upright. Contactors with magnetic blowout arc suppression rely on gravity and the magnetic field to push the arc away from the contacts. Mounting sideways or upside-down may reduce arc-quenching effectiveness.

2. Use the correct wire gauge. At 150A DC, voltage drop in the cable becomes significant -- every milliohm of connection resistance drops 0.15V. Use properly sized lugs, clean the terminals, and torque to specification.

3. Add a coil suppression diode. When the coil is de-energized, the collapsing magnetic field generates a voltage spike that can damage whatever is driving the coil (PLC output, float switch contacts). A flyback diode across the coil terminals protects the control circuit.

Key Specifications

Frequently Asked Questions

How do I test a contactor that has been in service for years?

First, visually inspect the main contacts -- if they are blackened but the surface is still flat, they are serviceable. If they are pitted, eroded, or have a cone-shaped depression, they are worn out. Second, measure contact resistance: de-energize the contactor, manually press the armature closed if accessible, and measure across the main terminals. A healthy contactor reads under 1 milliohm. Anything above 5 milliohms means high resistance that will cause heating at full load -- replace the contactor.

Why does my DC contactor buzz or chatter?

AC contactors buzz because the magnetic field crosses zero 100/120 times per second -- this is normal and is addressed by a shading coil. DC contactors should NOT buzz. If a DC contactor chatters, check: (1) the coil voltage is stable -- a failing power supply with high ripple can cause the armature to vibrate; (2) the pole faces are clean -- dirt, rust, or oil on the magnetic pole faces prevents the armature from seating fully; (3) the coil itself may have shorted turns, reducing its holding force.

Can I use this contactor for an AC application?

No. This is a DC-rated contactor. DC arc interruption is fundamentally harder than AC -- the contactor is designed with specific arc chute geometry and magnetic blowout coils optimized for DC current. Using a DC contactor on AC will result in excessive contact wear, possible contact welding, and unreliable operation. Conversely, an AC contactor used on DC will fail to extinguish the arc and may catch fire. Always match the contactor to the current type.
