Goyen K4502 (M2162) Diaphragm Repair Kit for CA/RCA45 Pulse Valves

KOEED · Dust Collection Parts · Pulse Valve Diaphragms · In stock

What Is the Goyen K4502 (M2162) Diaphragm Repair Kit?

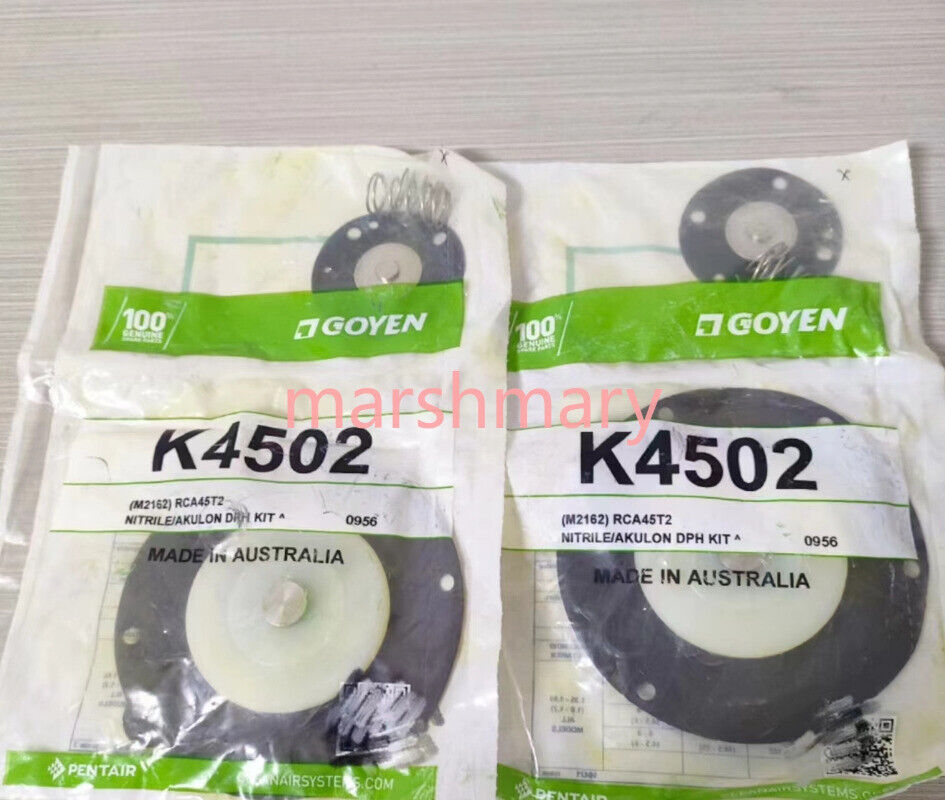

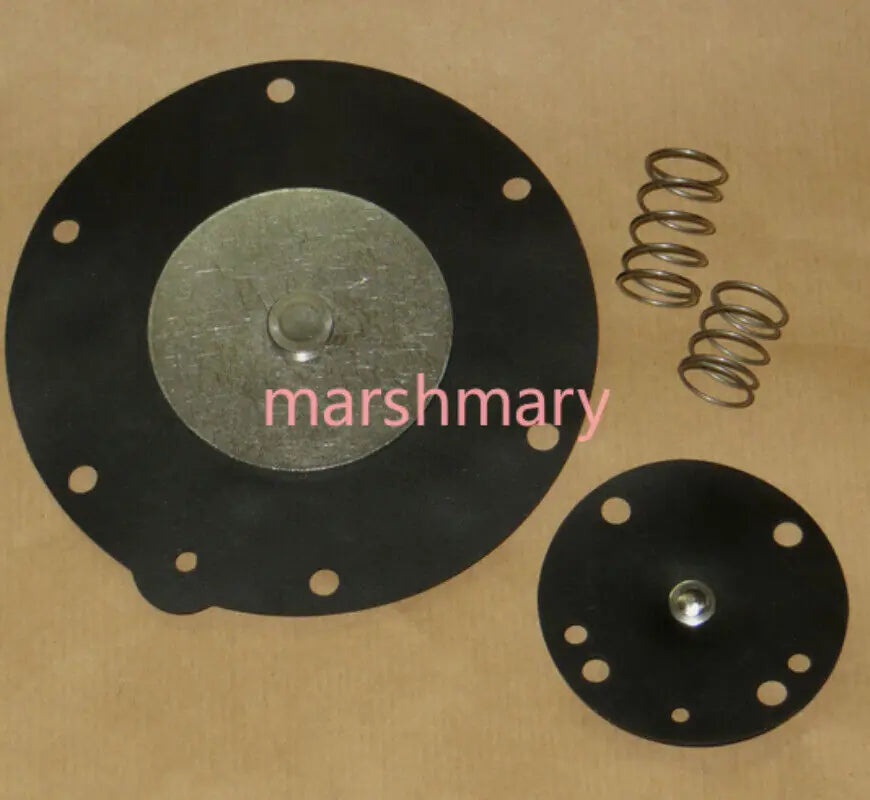

The Goyen K4502 — also referenced under part number M2162 — is a genuine diaphragm repair kit for the Goyen CA45 and RCA45 series pulse jet valves used in reverse-pulse baghouse dust collection systems. Each kit contains the flexible diaphragm, pilot seat seals, and associated O-rings or gaskets (verify specific kit contents from the listing photos) required to rebuild a worn valve. The diaphragm is the moving element that snaps open and closed with each compressed-air pulse — typically 40-100 PSI — to dislodge accumulated dust cake from filter bags. Over tens of thousands of cycles, the diaphragm material fatigues, develops pinhole leaks, or tears at the clamping perimeter, causing the valve to bleed air continuously or fail to fire at all.

In short: This is the factory-spec diaphragm kit for Goyen CA45 / RCA45 pulse valves — the wear item that determines whether your baghouse cleaning system actually cleans. One kit rebuilds one valve. In stock at KOEED for dust collection maintenance teams worldwide.

Understanding the K4502 Kit and Why It Matters

1. The Diaphragm Is the Single Point of Wear

What it means: A Goyen CA45 pulse valve has only one moving part — the diaphragm. There is no piston, no spring mechanism, no sliding seal. The entire valve's function depends on a flexible elastomeric disc that flexes against a seat in response to pilot pressure differentials.
Why it matters: When a pulse valve stops working, the diaphragm is the root cause in over 90% of cases — not the solenoid pilot, not the valve body casting. Replacing the diaphragm restores factory performance without replacing the entire valve assembly at 3-5 times the cost.
Result: Targeted maintenance spend: replace the $XX diaphragm instead of the $XXX complete valve, and keep a spare kit on the shelf for every valve position in the collector.

2. A Leaking Diaphragm Wastes Compressed Air 24/7

What it means: A pinhole or perimeter tear in a diaphragm creates a constant bleed path from the compressed air manifold through the valve and out the blowpipe — even when the valve is not being pulsed. Unlike a solenoid coil that fails "off," a diaphragm fails "leaking."
Why it matters: Compressed air is the single largest energy cost in most baghouse installations. A single leaking diaphragm on a 100-PSI manifold can waste 3-8 CFM continuously — multiply that by a dozen failed valves across a neglected collector, and the compressor runs harder, cycles more frequently, and burns electricity around the clock. A repair kit pays for itself in compressed air savings within weeks.
Result: Lower utility cost, reduced compressor runtime and maintenance, and a measurable drop in plant air demand after a systematic diaphragm replacement campaign.

3. Baghouse Differential Pressure Tells the Story

What it means: When pulse valves fail to fire — or fire weakly because the diaphragm is partially torn — the corresponding row of filter bags does not get cleaned. Dust accumulates, the pressure drop across the tube sheet rises, and the system's differential pressure gauge climbs above the normal operating band.
Why it matters: High differential pressure directly translates to higher fan energy consumption (the ID fan works harder to pull air through blinded bags) and reduced airflow at the pickup hoods — meaning less effective dust capture at the source. Operators often compensate by increasing pulse frequency, which masks the root cause and accelerates wear on the remaining good diaphragms.
Result: A structured diaphragm inspection and replacement program — starting with valves on rows showing high dP — restores cleaning effectiveness, lowers system pressure drop, and brings airflow back to design specifications.

4. Genuine Goyen vs. Aftermarket Material Quality

What it means: Genuine Goyen diaphragms are molded from a specific nitrile or fluorocarbon elastomer compound selected for the combination of flex fatigue resistance, temperature tolerance, and chemical compatibility with the dust and moisture present in industrial exhaust streams. Aftermarket diaphragms may use generic rubber compounds that look similar but have different durometer, tear strength, and fatigue life.
Why it matters: A diaphragm that fails at 20,000 cycles instead of 100,000+ means more frequent maintenance interventions, more downtime, and a higher total cost of ownership despite a lower unit price. For baghouses in continuous-process plants (cement kilns, steel melt shops, waste incinerators), unscheduled downtime to replace a failed diaphragm can cost orders of magnitude more than the price difference between genuine and generic.
Result: Predictable service intervals, fewer unplanned outages, and confidence that the diaphragm material is compatible with the specific gas stream chemistry in your process.

Key Specifications

CA45 and RCA45 valves differ primarily in port configuration (right-angle vs. in-line). Confirm your valve model from the nameplate on the valve body before ordering. If your valve is a CA40, CA50, or different Goyen series, this K4502 kit is not compatible — contact us with your valve model for the correct kit part number.

Industries and Applications

• Cement Plants: Kiln and clinker cooler baghouses run hot, abrasive dust. CA45 valves cycle millions of times between scheduled kiln shutdowns. Diaphragms are replaced on a calendar-based preventive maintenance schedule — typically every 12-18 months for continuous-operation kilns — regardless of visible condition.
• Steel Mills: Electric arc furnace (EAF) fume extraction and secondary hood baghouses. Diaphragms here are exposed to metallic particulate, high radiant heat, and aggressive pulse frequencies. Failure of even 10% of valves can put the mill out of compliance on opacity limits.
• Chemical and Pharmaceutical Processing: Product recovery baghouses capturing fine powders. A leaking diaphragm allows unfiltered air to bypass the bags, contaminating the clean side of the collector. In FDA-regulated pharmaceutical facilities, this is a quality deviation requiring investigation.
• Wood Products and Panel Board: MDF and particleboard plants with large baghouses handling sticky, hygroscopic wood dust. Consistent pulse cleaning prevents bag blinding from moisture-absorbed dust cake — unreliable valves mean rapid dP climb and production rate reductions.
• Power Generation: Coal-fired boiler baghouses and fly ash silo vent collectors. Valves pulse continuously during boiler operation; a planned diaphragm replacement during scheduled boiler outages avoids forced derating or opacity exceedances during generation periods.
• Food Processing: Flour mills, sugar refineries, grain elevators with explosion-proof dust collection. Goyen valves with appropriate diaphragm materials maintain combustible dust compliance while operating under NFPA 654 / ATEX requirements.

Frequently Asked Questions

"How do I know if my CA45 valve diaphragm needs to be replaced?"

Four symptoms indicate diaphragm failure: (1) a constant hiss of compressed air from the valve even when the solenoid is not energized — this is the most common sign, caused by a pinhole or perimeter tear; (2) a valve that does not produce the characteristic sharp "crack" sound during a pulse cycle, indicating the diaphragm is stuck or fully ruptured; (3) rising differential pressure on a specific row of bags that does not recover after a cleaning cycle; (4) visible dust emission from the stack or outlet, suggesting uncleaned bags are allowing dust carryover. For a definitive check, isolate the compressed air supply to the valve header, remove the valve's pilot cover, and visually inspect the diaphragm for cracks, tears, or permanent set (the diaphragm should be flat and flexible, not cupped or brittle).

"What's the difference between the K4502 kit and the M2162 part number?"

K4502 is Goyen's kit part number for the complete diaphragm rebuild set. M2162 may be an internal reference, an OEM-specific cross-reference, or a previous-generation part number that has been superseded by K4502. In practice, both numbers point to the same diaphragm kit for CA45/RCA45 valves. If your valve nameplate or maintenance manual calls out M2162, the K4502 kit is the direct replacement. If you are unsure, email us a photo of your valve nameplate and we will confirm compatibility before you order.

"Can I replace this diaphragm while the baghouse is running?"

On most baghouse designs, individual pulse valves can be isolated and serviced while the collector remains online, provided the compressed air header has isolation valves per row or per valve. The procedure is: close the air isolation valve to the target valve, depressurize the valve body by cycling the solenoid manually, unbolt the valve cover (typically 4-6 bolts), remove the old diaphragm, inspect the valve seat for debris or scoring, install the new diaphragm and seals from the K4502 kit, torque the cover bolts to spec in a star pattern, reopen the air isolation, and test-fire the valve. If the baghouse does not have per-valve air isolation, you must shut down and depressurize the entire header — during which time dust cleaning stops. Plan diaphragm replacements during scheduled process pauses whenever possible.

"How often should I stock and replace these kits — what interval makes sense?"

There are two approaches: reactive (replace when a valve fails) and preventive (replace on a schedule). For continuous-process plants where unplanned downtime is unacceptable, preventive replacement every 18-24 months is typical for CA45 valves operating at 60-80 PSI with moderate inlet temperatures. Harsher conditions (high heat, aggressive chemicals, pulse frequencies above 1 Hz) may warrant annual replacement. A sensible inventory strategy is to stock at least one kit per valve position plus 10-20% spares — if your baghouse has 48 CA45 valves, keep 55-60 kits on the shelf. This ensures you can complete a full-row rebuild without waiting for parts, and any unexpected failures between scheduled rebuilds are covered by the surplus.

"Does the kit include the solenoid pilot valve, or do I need to buy that separately?"

The K4502 kit covers the pneumatic diaphragm assembly — the flexible diaphragm disc, pilot seat seal, and sealing O-rings/gaskets. It does not include the electrical solenoid pilot operator (the coil and armature assembly that threads onto the valve cover). If your solenoid coil has failed (open circuit, shorted winding, or burned contacts), you will need the appropriate Goyen solenoid pilot assembly separately. A simple test: if the coil clicks audibly when energized but the valve does not fire, the diaphragm is the problem. If the coil does not click and shows infinite resistance on a multimeter, the solenoid has failed. Contact us with your valve's full model and voltage specification for the correct solenoid replacement.
