What Is the 40-75V to 36V 900W DC-DC Regulator Module?

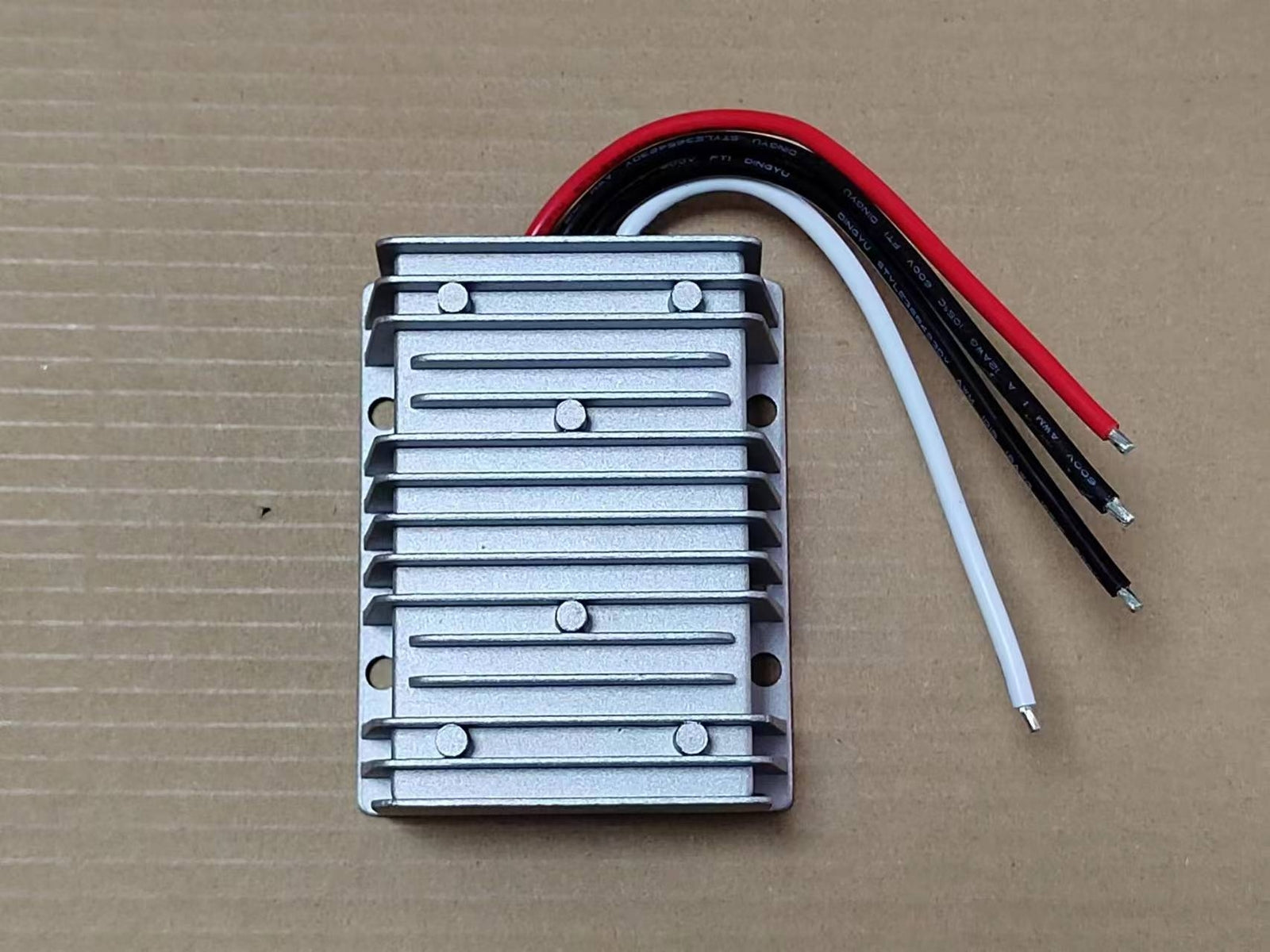

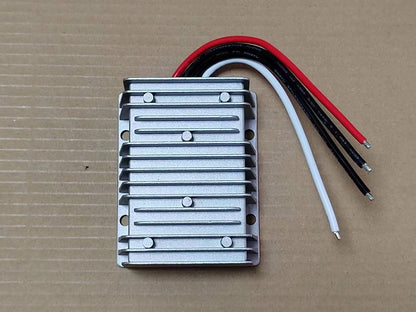

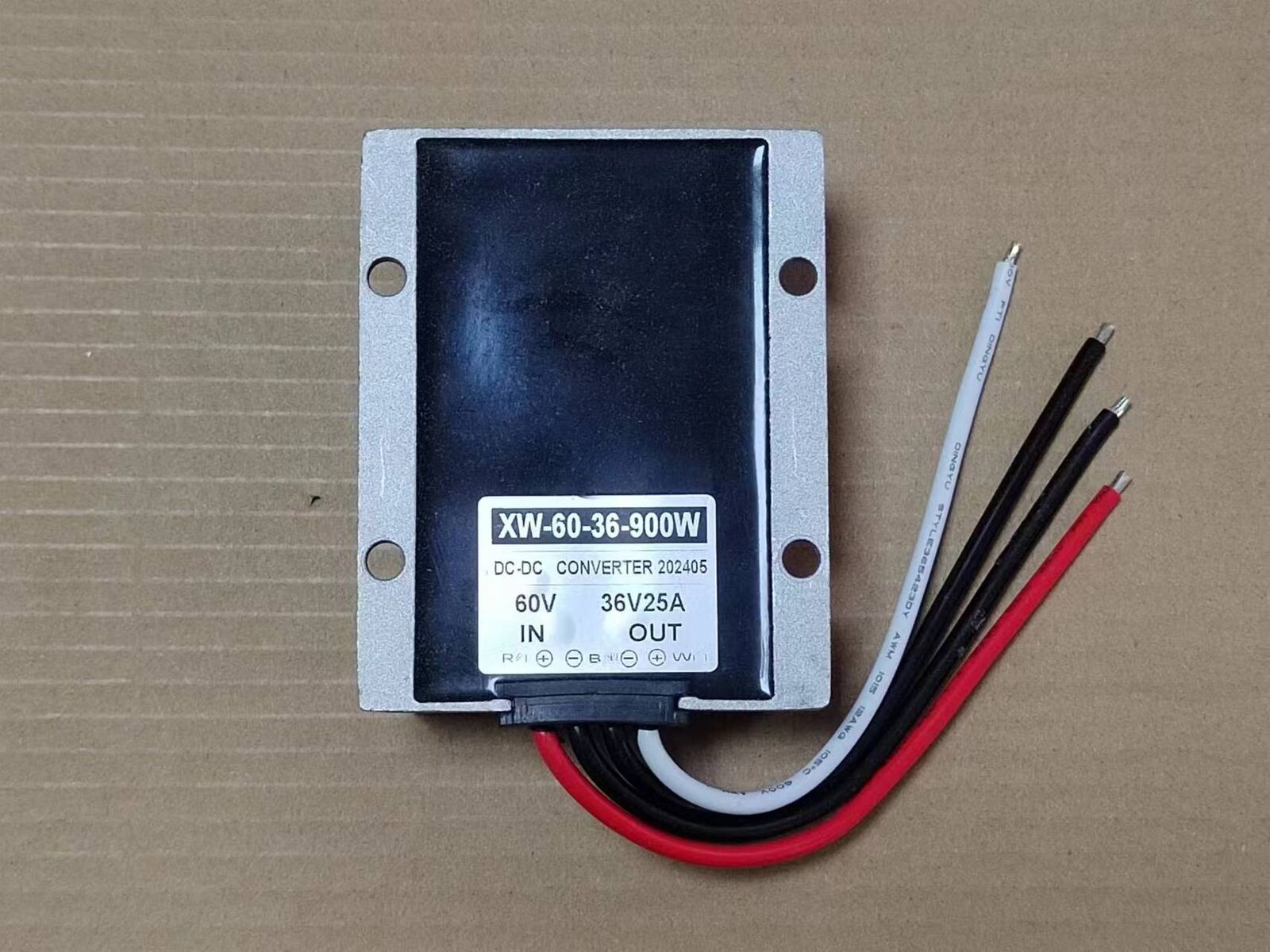

In short: This is a waterproof, high-power step-down (buck) DC-DC converter that accepts a wide input range of 40V to 75V DC and delivers a regulated 36V output at up to 25 amps continuous — a full 900 watts. It is designed for electric vehicle auxiliary systems, solar battery banks, industrial DC bus distribution, and any application that needs to derive a stable 36V rail from a higher-voltage DC source.

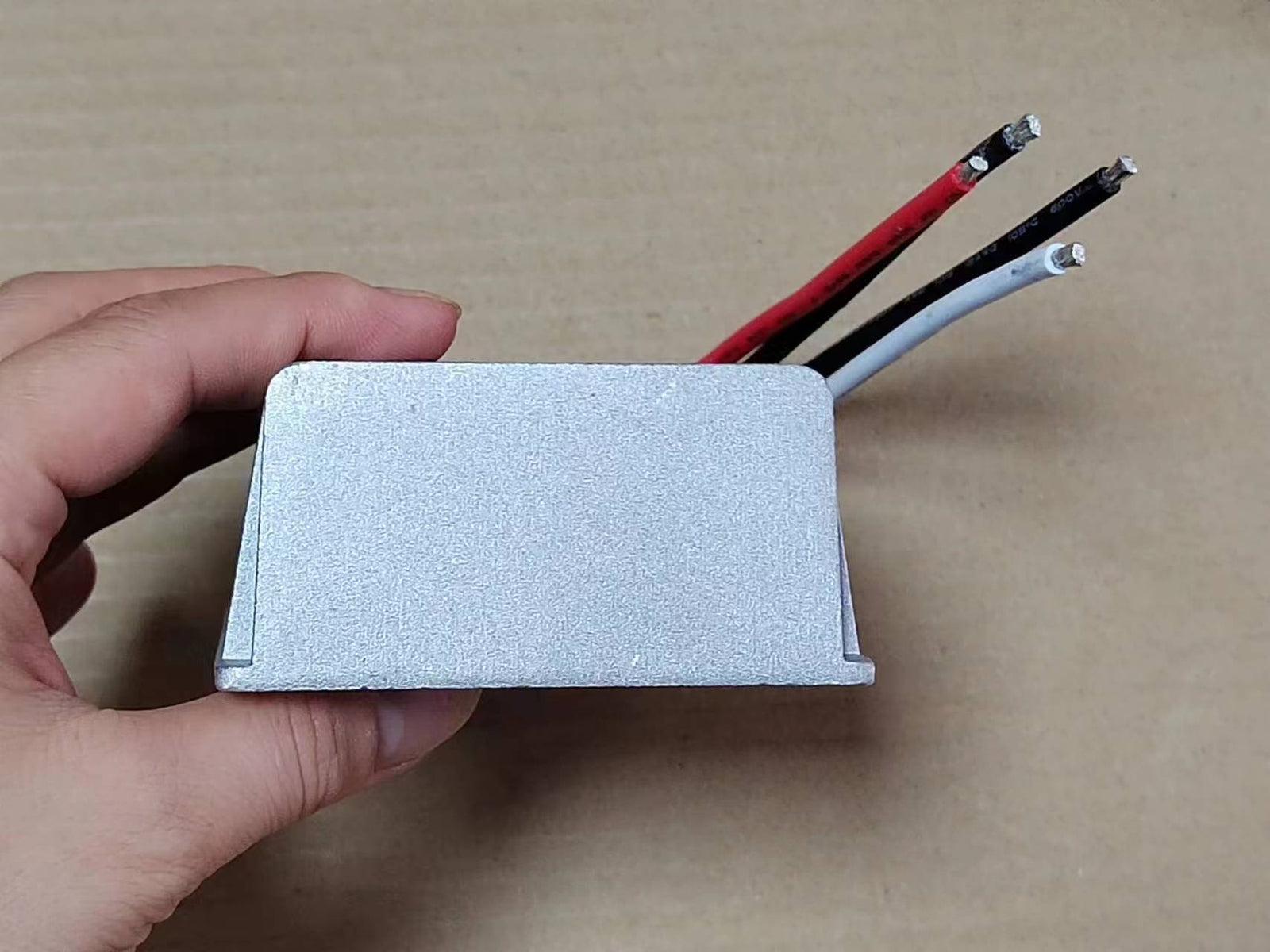

The power level is what separates this module from typical hobbyist DC-DC converters. At 900W, it can drive motors, charge 36V battery packs, power LED array lighting, or supply entire banks of 36V industrial equipment from a 48V or 60V battery system. The fully potted, waterproof enclosure — typically IP67 or equivalent — means it can be mounted directly on a vehicle chassis, inside an outdoor equipment bay, or anywhere that exposure to rain, dust, and vibration would destroy an open-frame converter.

The wide input range (40-75V) provides important headroom: it handles the voltage sag of a nearly depleted 48V battery bank as well as the elevated charging voltage of a 60V system under bulk charge, delivering a consistent 36V output throughout.

Key Specifications

Understanding the Non-Isolated Design

This converter uses a non-isolated buck topology, meaning the input and output share a common ground reference. This is the standard architecture for EV auxiliary power and battery-to-battery charging where galvanic isolation is not required by regulation. The advantage is higher efficiency — typically 92-96% at rated load — because there is no transformer core loss. The trade-off is that a fault on the input can potentially propagate to the output, so proper fusing on both the input and output sides is essential.

Installation Best Practices

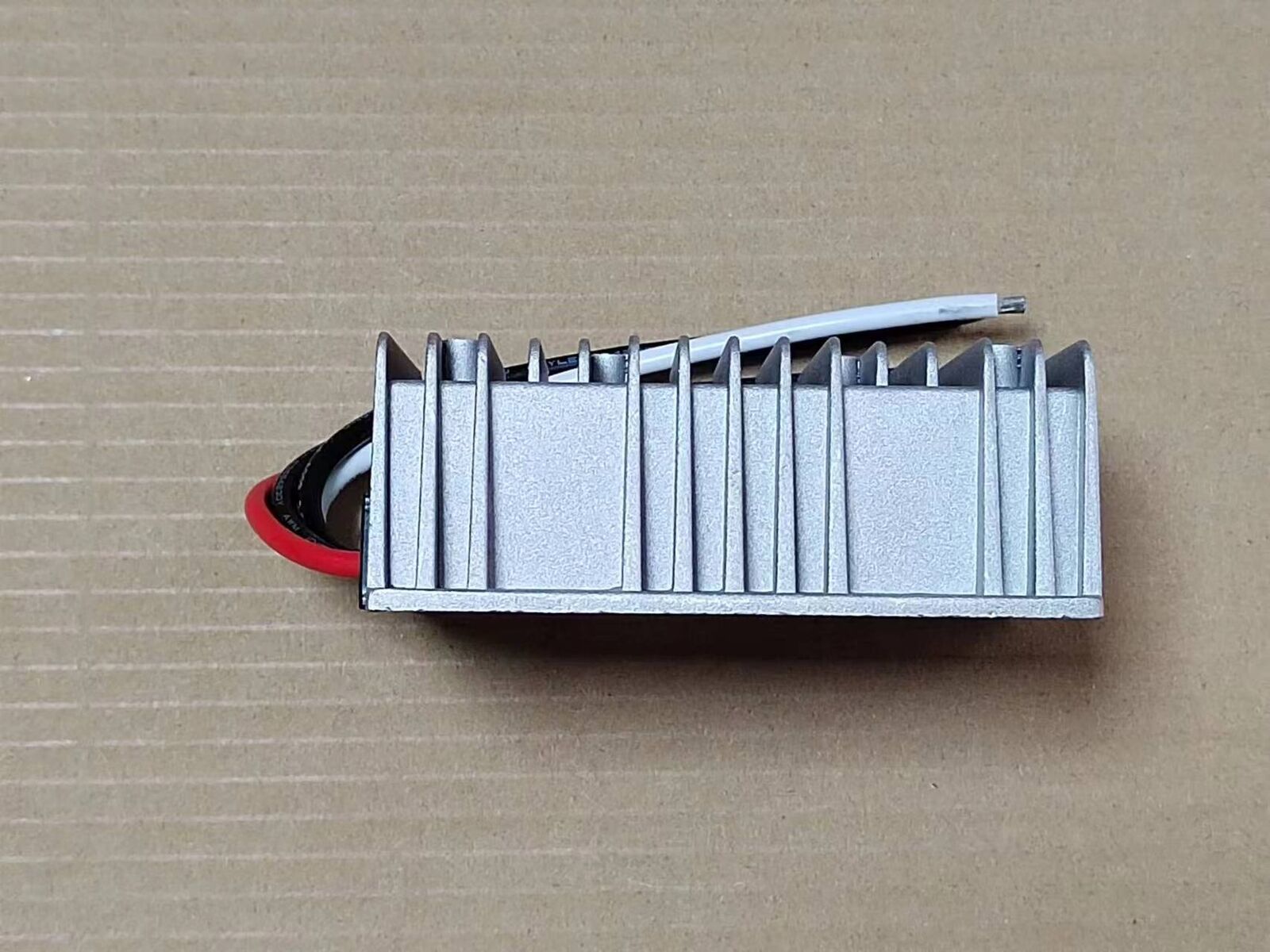

At 25A output, conductor sizing deserves careful attention. Use at least 10 AWG (approximately 6mm²) wiring for both input and output connections, and keep cable runs as short as practical. The module's sealed aluminum housing serves as a heatsink; mount it to a clean metal surface with thermal compound for optimal heat dissipation. In still-air enclosures, verify that the ambient temperature stays within the module's rated range — derating may be necessary above 40-50 degrees Celsius ambient. Always include a properly rated DC circuit breaker or fuse on the input side, and consider a reverse-polarity protection diode if the installation is subject to field wiring errors.

Frequently Asked Questions

Can this module charge a 36V lithium battery directly?

It can supply charging current, but it is not a dedicated battery charger. A 36V lithium battery (10S Li-ion) requires a constant-current / constant-voltage charge profile with a termination voltage of approximately 42V, not 36V. This module outputs a fixed 36V regulated rail, which could be used as the input to a proper CC/CV charger stage or for float-charging a 36V lead-acid bank. For direct lithium charging, pair it with a dedicated charge controller.

What happens if the input voltage exceeds 75V?

Input voltages above 75V may exceed the voltage rating of the input filter capacitors and switching MOSFETs, likely causing permanent damage. In mobile applications where regenerative braking or load dumps can produce voltage spikes, install a TVS (transient voltage suppressor) diode or a voltage-clamping device across the input terminals rated for the expected surge energy.

Is the output truly waterproof even with wiring connected?

The module body is potted and sealed, but the integrity of the waterproof rating at the wiring exit point depends on proper strain relief and sealing. If the module uses flying leads exiting through a gland or grommet, ensure the gland is tight and the cable jacket is undamaged. For submerged or pressure-wash applications, verify the specific IP rating with our technical team before purchase.

Can multiple modules be paralleled for higher current?

Paralleling buck converters is not straightforward — minor output voltage discrepancies cause one module to shoulder most of the load. Unless the modules explicitly support active current sharing, do not parallel them. For loads exceeding 900W, consider a larger single converter or split the load into independent circuits, each powered by its own module.
