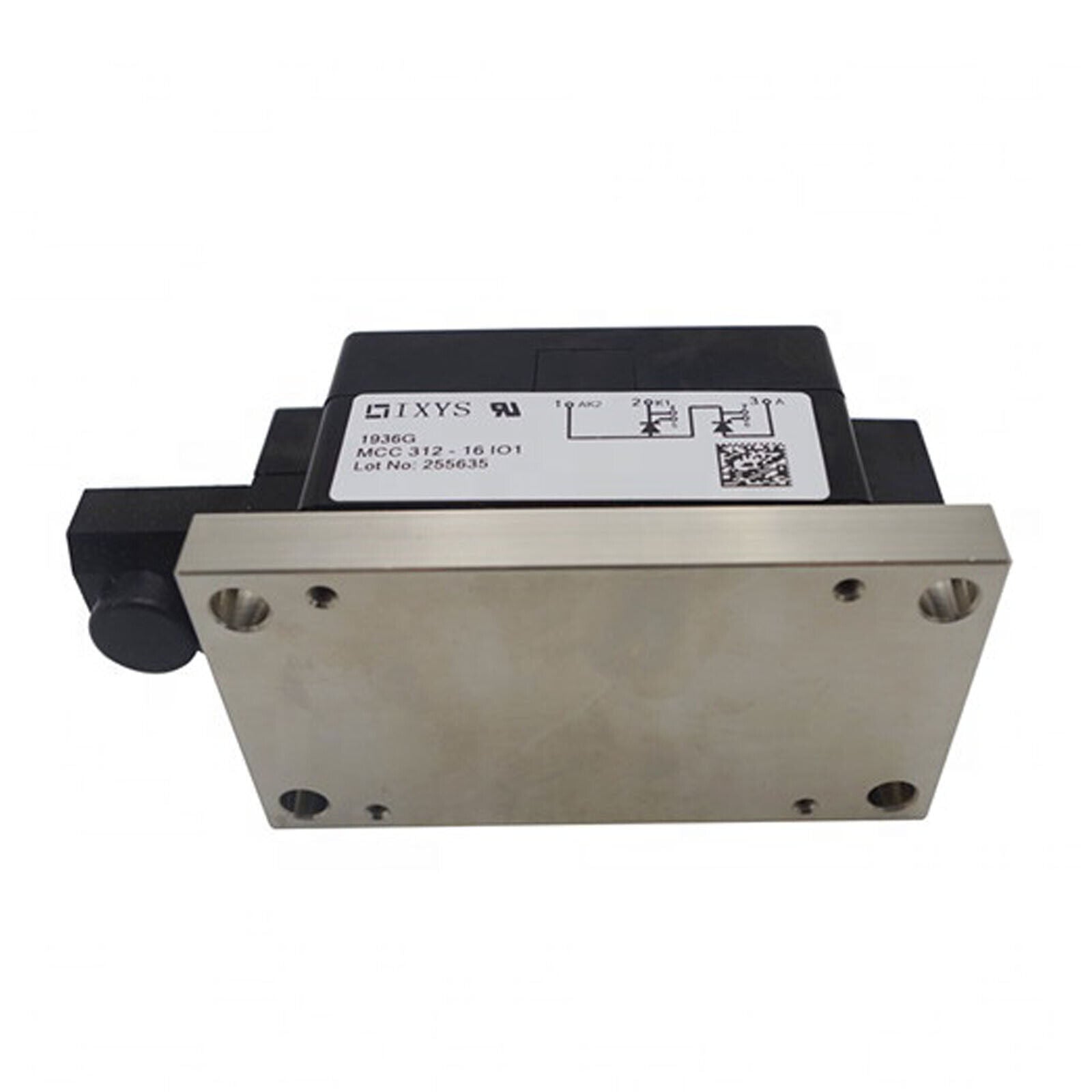

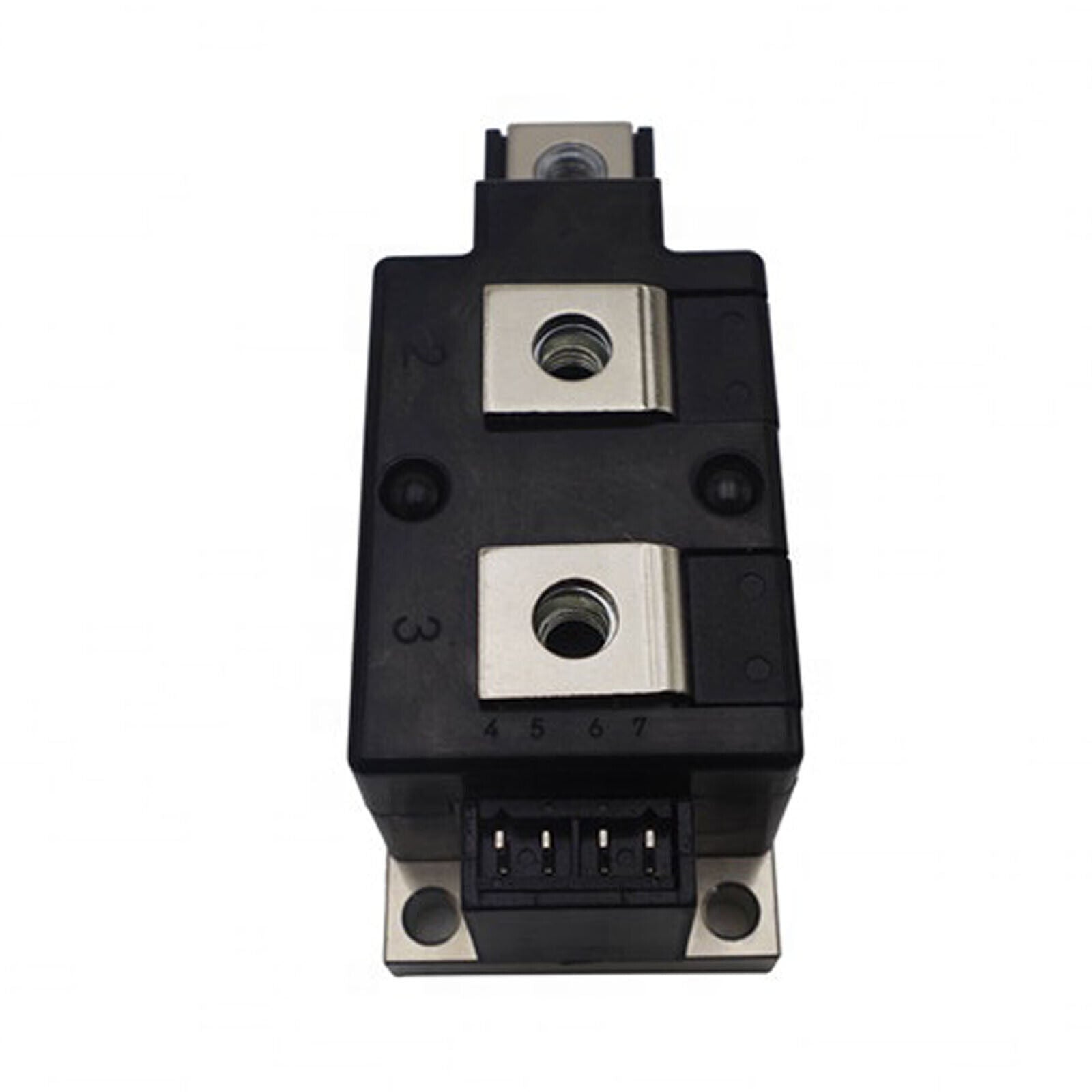

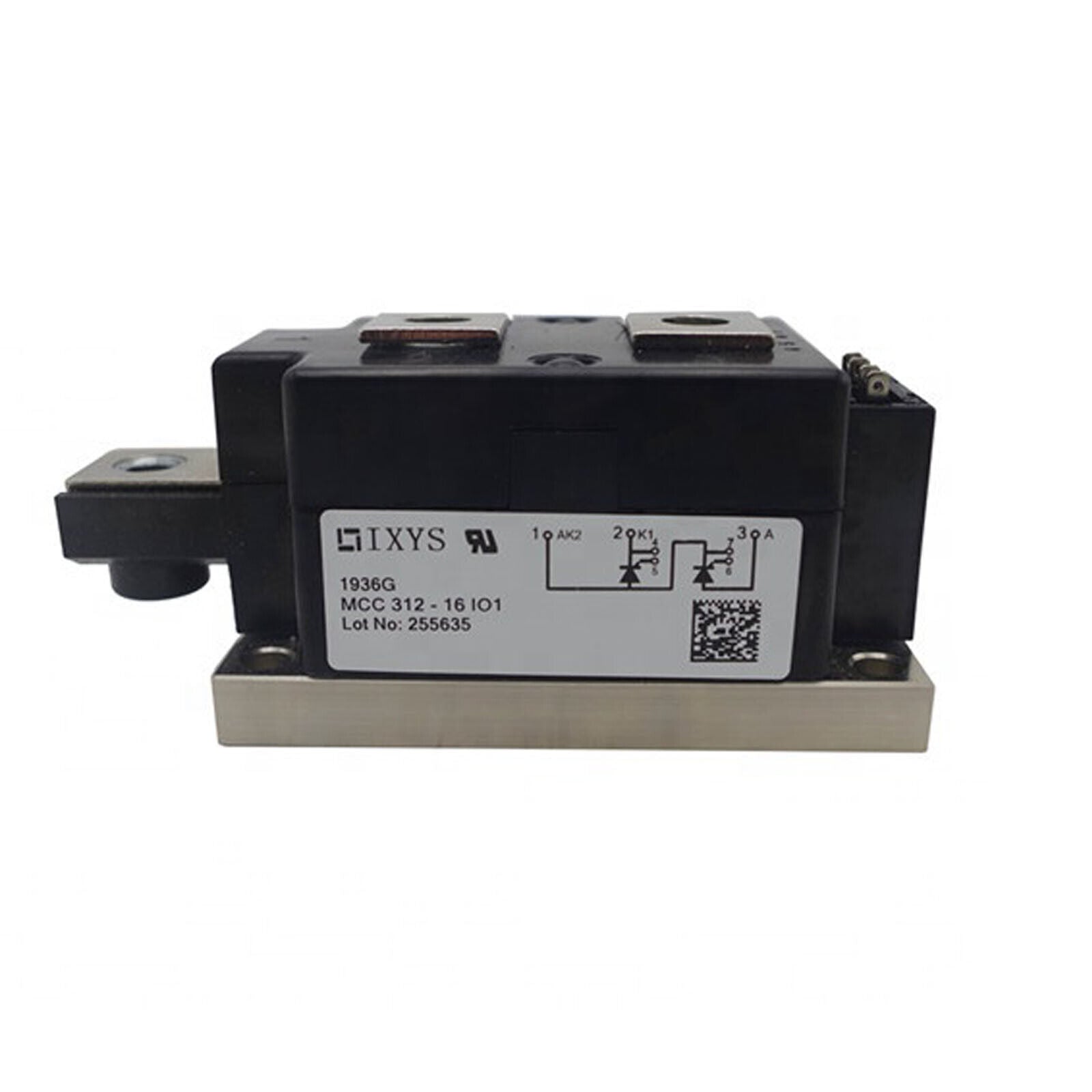

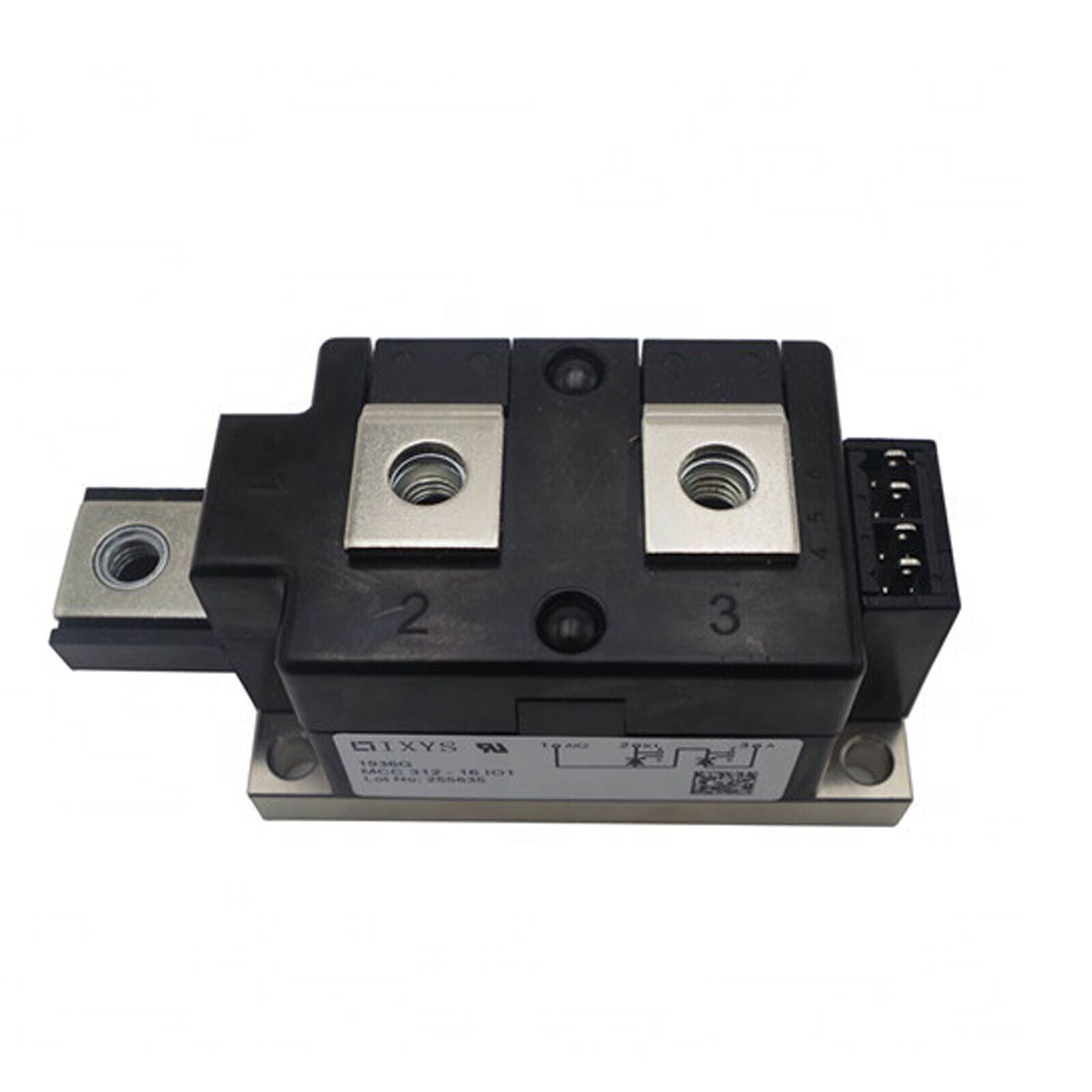

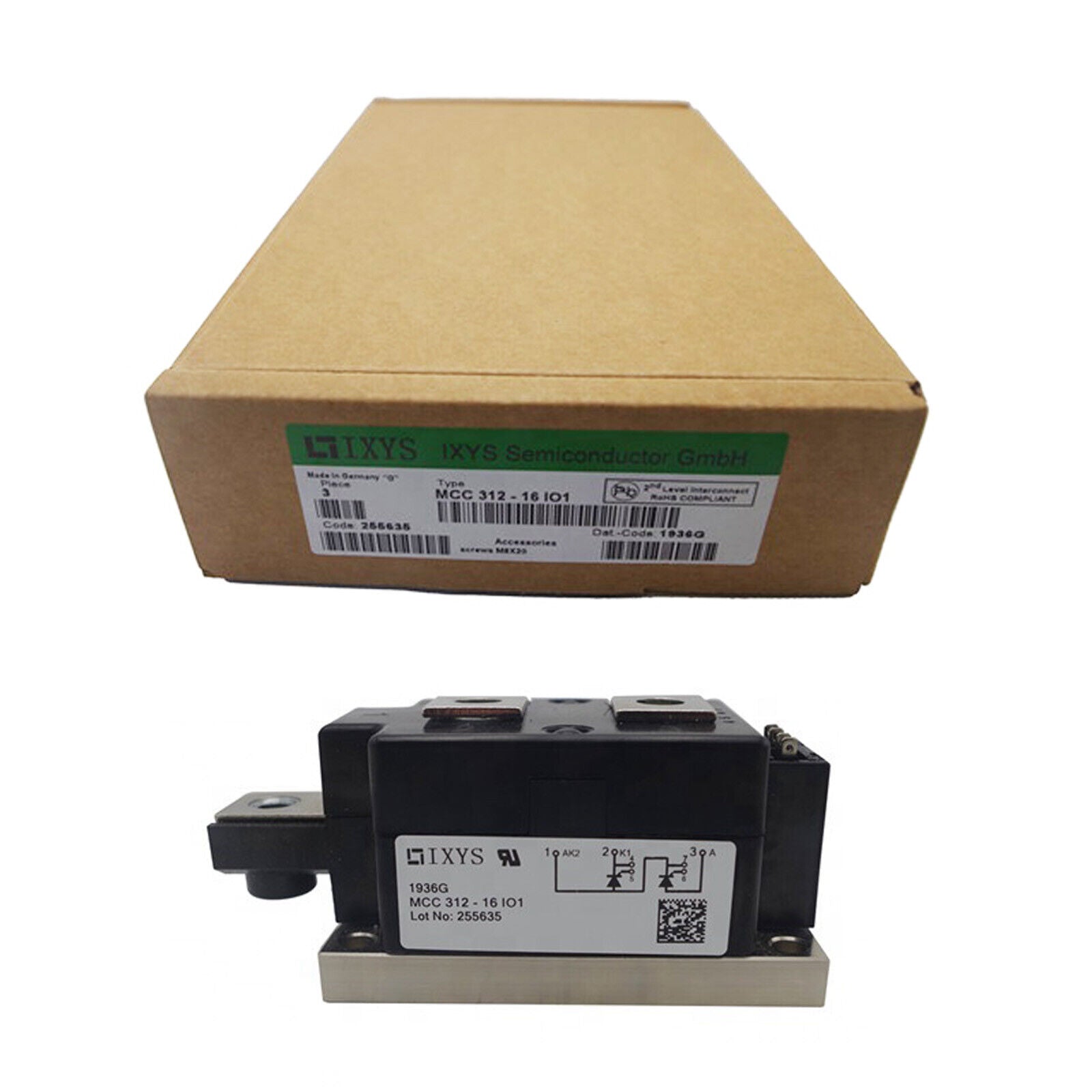

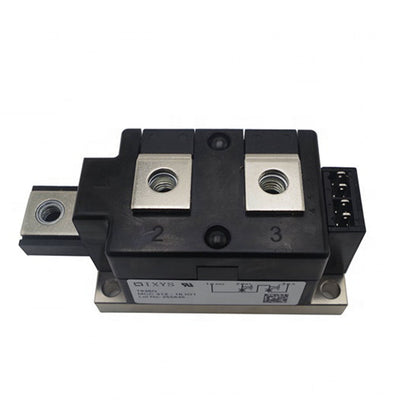

IXYS MCC312-16IO1 / MCC31216I01 — Thyristor / Diode Power Module, 16A 1600V

IXYS (Littelfuse) · MCC Series · Dual-Device Power Module · New In Box

The IXYS MCC312-16IO1 (cross-reference: MCC31216I01) is a dual-device thyristor / diode power module from IXYS’s MCC family, now manufactured and supported under Littelfuse after IXYS’s 2018 acquisition. Housed in the industry-standard MCC 312 isolated baseplate package (mechanically interchangeable with Semikron Semipack 1, Vishay, and Fuji 1×1 footprints), the module delivers 16 A continuous on-state current with 1600 V reverse blocking. It is a common replacement candidate for legacy DC motor drives, AC soft starters, and input rectifiers originally built around IXYS, Westcode, or Powerex parts. KOEED supplies the MCC312-16IO1 as a new-in-box factory part, alongside the wider IXYS power-semiconductor lineup we cross-stock for industrial-automation rebuilds.

Engineers landing on this page are typically retrofitting a power section that has run for 15–25 years, or building out a spares pool for an Siemens SIMATIC-controlled line, an Allen-Bradley PowerFlex feed, or a Mitsubishi MELSEC-driven welding cell. The MCC312-16IO1 fills the role of a controlled rectifier / phase-angle power block in those stacks — the same role an Omron G3PX or a Schneider Altivar rectifier card plays at smaller currents.

Key Technical Specifications

Application Scenarios — Where the MCC312-16IO1 Fits

The MCC312-16IO1 is a controlled-rectifier building block, not a switch-mode transistor. It belongs in the power stage of equipment that turns AC mains into a regulated DC bus, or that phase-fires an AC load. Common deployments we ship this part into include:

• DC motor drive input rectifiers and field-supply stages, including legacy retrofits on Allen-Bradley 1336 / 1305 and Siemens SIMOREG 6RA24 chassis
• AC soft starters and phase-angle controllers (often co-deployed with Schneider Altistar ATS22 / ATS01 logic)
• Solid-state relay (SSR) replacement banks for heater, oven, and plastics-extruder temperature control
• Battery chargers and traction rectifiers for forklift, AGV, and floor-cleaning equipment
• Welding rectifier secondary controls on Mitsubishi MELSEC-monitored cells
• UPS input rectifiers and inverter front-ends
• Induction-heating tank circuits and low-power forge supplies
• Voltage-regulated transformer (VRT) and tap-changer contactor replacements
• Spares-pool stock for Fanuc RoboCut and Yaskawa Servopack machine-tool auxiliaries
• Power conditioning sections behind Panasonic FP-series PLC panels in Omron- and KEYENCE-vision-inspected lines

If your BOM still calls out an old VUO 16-16NO1, SKCH 28/16, or Westcode N370CH16, the MCC312-16IO1 is a drop-in mechanical and electrical substitute in most 16 A / 1600 V controlled-rectifier positions. Send us the surrounding schematic and we will cross-check the gate-trigger and thermal envelope before quoting. Need a second opinion on the substitution? Open the AI Diagnostic Tool for a 24/7 cross-reference check.

Integration & Wiring Notes

The MCC 312 footprint is one of the most-cloned outlines in industrial power electronics, so wiring practice is well documented:

• Power terminals — use M5 ring lugs torqued to roughly 2.5–3.0 N·m. The dual-SCR layout puts one thyristor per side of the module; verify your schematic against the printed diagram on the case before energising.
• Gate leads — the IO1 configuration exposes a gate and cathode terminal per SCR. Twist the gate-cathode pair, keep the run short (< 0.5 m), and add a 10 Ω gate resistor plus a reverse-biased TVS across G–K to suppress dv/dt false triggering.
• Trigger coupling — optocoupler-isolated firing pulses (MOC3021 / MOC3052 class) are the standard interface from a Siemens SIMATIC or Omron SYSMAC output card. Never share the SCR cathode return with the logic ground.
• Snubber network — for 480 V line service, fit an RC snubber (typically 0.1–0.47 μF + 10–47 Ω) across each thyristor to control commutation dv/dt and limit peak reverse recovery stress.
• Freewheeling path — when used in a DC-bus configuration, parallel a fast-recovery diode module (an IXYS DSEI2×31 or MCC26-series equivalent) across the load. The MCC312-16IO1 itself does not include the freewheel device.
• Heatsink interface — apply a thin, even layer of silicone-free thermal compound (e.g., Dow Corning 340) or a thermal pad rated for the full isolation voltage. The baseplate is already electrically isolated, so no additional mica or kapton insulator is required.

Coordination with upstream protective devices matters: pair each thyristor with fast-acting semiconductor fuses sized at roughly 1.6× the RMS load current. For multi-module panels, you can review the gate-firing timing on the PLC Error Code Database when an Allen-Bradley ControlLogix reports a drive or SCR-bridge fault — the symptom and the MCC312-16IO1’s gate impedance are linked.

Installation & Commissioning Tips

1. Pre-power checks. With the cabinet locked out, measure forward and reverse resistance between each anode and cathode with a hand multimeter — both readings should read high-impedance. A shorted cell or a dead short to the baseplate is a reject.
2. Verify isolation. Apply a 2500 V megohmmeter between any power terminal and the metal baseplate for roughly five seconds. The reading should hold above 100 MΩ. If you do not own a megohmmeter, ask our team — bench checks at Moritta@KOEED.COM can be arranged on a per-lot basis.
3. First-fire at reduced mains. Bring the input up through a variac to ~30 % line and confirm gate pulses are arriving at the right phase angle. Check the heatsink for thermal stability before ramping to full voltage.
4. Thermal baseline. Record baseplate temperature after 30 minutes at full load. A well-sunk MCC312-16IO1 runs at roughly 70–85 °C in continuous service; anything above 95 °C usually points to insufficient heatsink or degraded thermal compound.
5. Log commissioning data. Capture line voltage, firing angle, DC-bus voltage, and baseplate temperature to a maintenance record. This baseline lets you spot silicon aging years before the next unplanned shutdown.
6. Spare-module policy. For lines where a single module failure stops a high-value cell, keep at least two spare MCC312-16IO1s in the on-site cabinet. KOEED can stage a dedicated buffer for plants running continuous shifts; ask Moritta@KOEED.COM for a kit quotation.

Procurement, Warranty & Lead Time

KOEED supplies the MCC312-16IO1 as a factory-sealed, new-in-box part from our China sourcing network, with on-hand inventory ready for international dispatch. Typical lead time is 1–3 business days for in-stock units, with worldwide shipping via DHL / FedEx / UPS arranged from our Shenzhen / Hong Kong logistics base. Larger orders (50+ pieces) are scheduled against confirmed purchase orders, not allocated from a live buffer.

• Warranty. 12 months against manufacturing defects, with a swap-or-refund policy on verified DOA units. Warranty terms mirror our return policy.
• Authenticity. Modules ship in original IXYS / Littelfuse packaging with date-code and lot traceability. We do not relabel, refurbish, or remark parts.
• RFQ / BOM. Send the full instruments list — including any related IXYS MCC, MCD, MCO, or MDD modules, the upstream PLC (a Mitsubishi Q02HCPU, an Allen-Bradley 1756-L73, etc.), and the firing-card part numbers — to Moritta@KOEED.COM and you will receive a single-line quote within 24 business hours.
• Cross-reference service. If the MCC312-16IO1 is itself obsolete in your line, our team will suggest current-generation IXYS / Littelfuse equivalents, plus alternatives from compatible third-party module lines (Semikron, Vishay, Fuji) where they exist.
• Channel. Orders may be raised via the structured Create a Quote form, by email to Moritta@KOEED.COM, or through the Contact Us page. You can also review recent transactions on our real-time sales list to confirm our supply cadence on similar IXYS power parts.
