Description
Technical specifications for CM600HA-12H
| Key | Value |
|---|---|
| model | CM600HA-12H |
| type | IGBT Module |
| max continuous collector current (Ic) | 600 A |
| max pulse collector current (Icp) | 1200 A |
| power dissipation (Pd) | 300 W |
| collector-emitter voltage (Vce) | 1200 V |
| maximum operating temperature (Tj) | 150 °C |
| package type | D2PAK |
| dimensions | 130 mm x 85 mm x 29 mm |
| weight | 2.5 kg |
Description

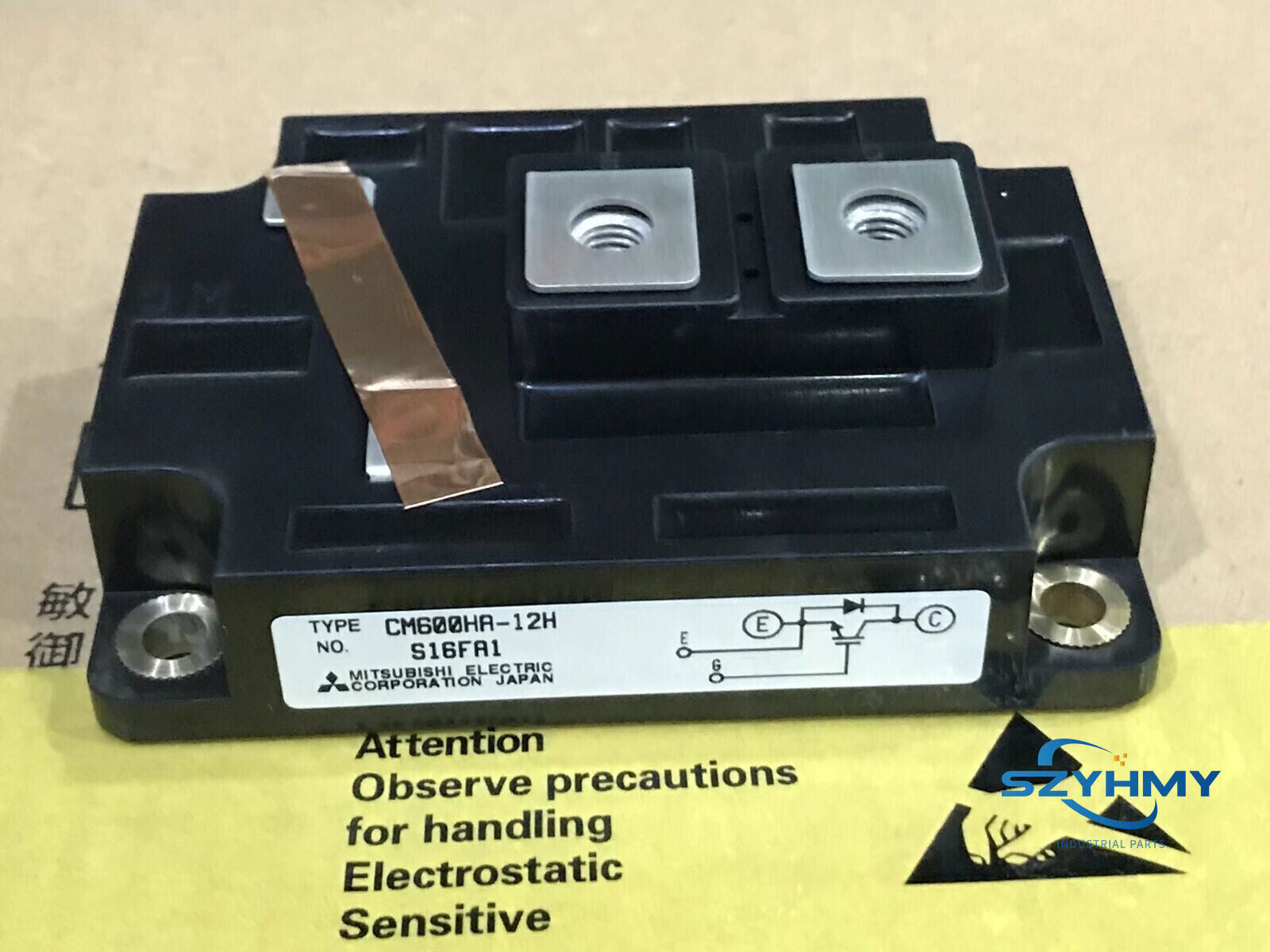

The Mitsubishi CM600HA-12H is a high-performance IGBT module designed for various industrial applications. With exceptional thermal stability and reliability, the CM600HA-12H is perfect for applications demanding high power and efficiency. The CM600HA-12H module features a collector-emitter voltage rating of 1200 V and can support continuous collector currents of up to 600 A. This means that the CM600HA-12H can handle even the most demanding operational conditions while ensuring longevity. Additionally, the CM600HA-12H is designed with a maximum operating temperature of 150 °C, making it suitable for a wide range of environments. When you need a robust solution, the Mitsubishi CM600HA-12H is the optimal choice for power conversion needs.
Alternative names
- CM600H12
- CM600HA-12
- CM600HA12
- CM600H-A12H
- CM600HA-12H1
