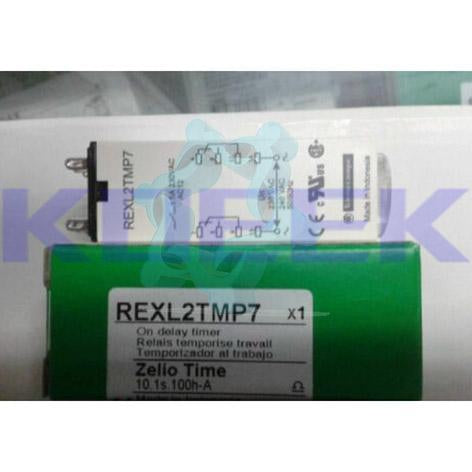

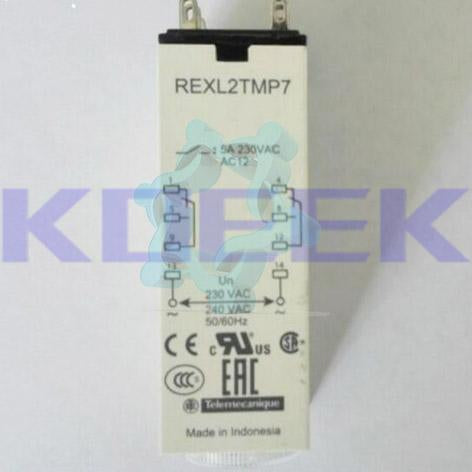

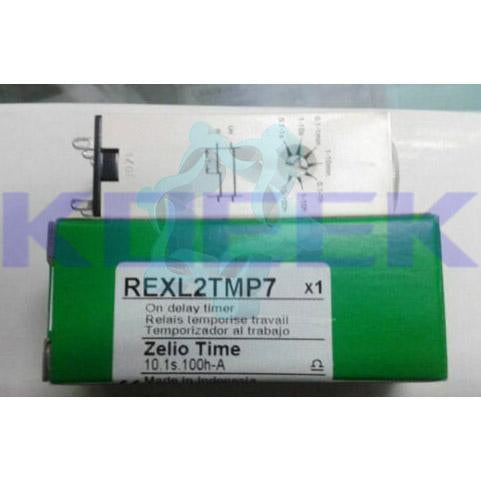

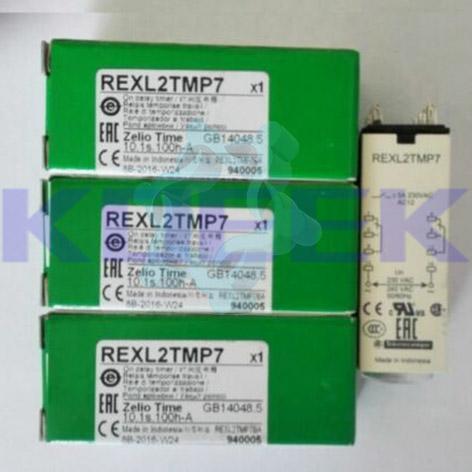

REXL2TMP7


Price:
Sale price$41.37 USD

Due to the constant fluctuations in product information, we kindly ask you to contact us before making a purchase to confirm the latest price before placing an order.

  • Business Days Only (Monday through Saturday)
Contact us By email Chat on WhatsApp
safe
Main
range of product
Zelio Time

product or component type
Miniature timing relay

fixing mode
Plug-in socket

discrete output type
Relay

contacts type and composition
2 C/O

component name
REXL

time delay type
A

time delay range
0.1...1 s
1...10 h
1...10 min
1...10 s
10...100 h
6...60 min
6...60 s

Complementary
contacts material
Cadmium free

[Us] rated supply voltage
230 V AC at 50/60 Hz

voltage range
0.85...1.15 Us

[In] rated current
5 A AC

repeat accuracy
+/- 0.5 %

setting accuracy of time delay
10 % at full scaleat 25 °C conforming to EN/IEC 61812-1

temperature drift
0.05 %/°C

maximum reset time
250 ms after time delay, on de-energisation
50 ms during time delay, on de-energisation

voltage drift
+/- 0.2 %/V

maximum switching capacity
4 x 5 A

maximum temporary permissible current
10 Afor < 10 s

minimum switching current
100 mA

electrical durability
100000 cyclesat 250 V AC resistive

mechanical durability
10000000 cycles

maximum power consumption
3 VA

[Ui] rated insulation voltage
250 V conforming to IEC 255 Group C
250 V conforming to VDE 0010

output overvoltage protection
2 J

surge withstand
2 kV conforming to EN/IEC 61000-4-5 level 3

creepage distance
4 kV/3 conforming to IEC 60664-1

local signalling
1 LED red output in operation
1 LED yellow power ON

product weight
0.11 lb(US) (0.05 kg)

Environment
immunity to microbreaks
<= 5 ms

dielectric strength
2 kV 1 mA/1 minute 50 Hz conforming to EN/IEC 60601-1
2 kV 1 mA/1 minute 50 Hz conforming to EN/IEC 61812-1

standards
73/23/EEC
89/336/EEC
93/68/EEC
EN 50081-2
EN 61000-6-2
EN/IEC 60601-1
EN/IEC 60601-2
EN/IEC 61812-1

product certifications
CUL
UL

ambient air temperature for operation
-4...140 °F (-20...60 °C)

ambient air temperature for storage
-40...158 °F (-40...70 °C)

IP degree of protection
IP50 conforming to IEC 60529

vibration resistance
0.35 mm (f = 10...55 Hz) conforming to IEC 60068-2-6

relative humidity
95 % without condensation conforming to IEC 60068-2-6

resistance to electrostatic discharge
6 kV (in contact) conforming to EN/IEC 61000-4-2 level 3
8 kV (in air) conforming to EN/IEC 61000-4-2 level 3

resistance to electromagnetic fields
9.14 V/yd (10 V/m) conforming to EN/IEC 61000-4-3 level 3

resistance to fast transients
2 kV conforming to EN/IEC 61000-4-4 level 3

immunity to radioelectric fields
10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 level 3

immunity to voltage dips
>= 95 % / 1 s conforming to EN/IEC 61000-4-11
30 % / 10 ms conforming to EN/IEC 61000-4-11
60 % / 100 ms conforming to EN/IEC 61000-4-11

disturbance radiated/conducted
Class B conforming to EN 55022 (EN 55011 group 1)
