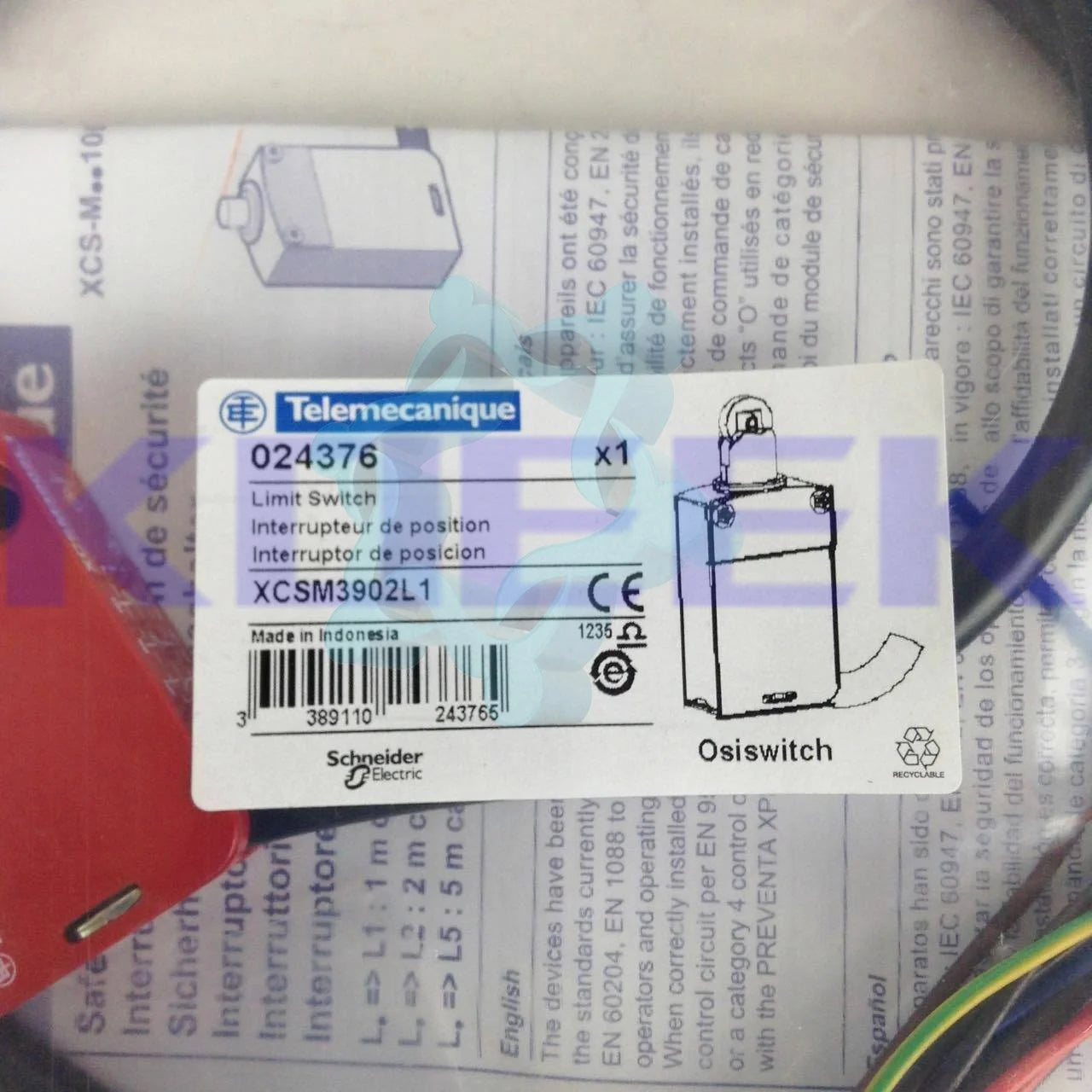

XCSM3902L1


Price:
Sale price$154.99 USD

Dear Customer,

We value your shopping experience on our ecommerce platform greatly. To ensure you get the best service and products, feel free to reach out to us directly at any time. Our customer service team is here to assist you, answer your questions, provide personalized advice, and help you make informed purchase decisions.

Whether you need product recommendations, custom orders, or have any inquiries, please do not hesitate to contact us. We look forward to providing you with exceptional service and ensuring you have a pleasant shopping experience!

Thank you for choosing us!

Warm regards,

The Team at KOEED

safe
Main
range of product
Preventa Safety detection

product or component type
Safety limit switch

component name
XCSM

design
Miniature

material
Metal

head type
Plunger head

protection technology
Plastic protective cover, secured by 5-lobe socket head safety screw

type of approach
Lateral approach

type of operator
Roller plunger

contacts type and composition
1 NC + 1 NC + 1 NO

contact operation
Snap action

Complementary
electrical connection
Pre-cabled

cable length
3.28 ft (1 m)

cable composition
7 x 0.5 mm²

switch actuation
By 30° cam

fixing mode
By the body

number of poles
3

positive opening
With NC contact

mechanical durability
10000000 cycles

minimum force for tripping
7 N

positive opening minimum force
35 N

minimum actuation speed
0.01 m/min

maximum actuation speed
1.64 ft/s (0.5 m/s)

contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN 60947-5-1
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN 60947-5-1
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage
300 V conforming to CSA C22.2 No 14
400 V (degree of pollution: 3) conforming to IEC 60947-5-1
300 V conforming to UL 508

[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664
4 kV conforming to IEC 60947-1

resistance across terminals
<= 25 MOhm conforming to IEC 60255-7 category 3

short-circuit protection
6 A cartridge fuse type gG (gl)

repeat accuracy
0.05 mm on the tripping points

body material
Zamak

head material
Zamak

depth
0.63 in (16 mm)

height
2.76 in (70 mm)

width
1.18 in (30 mm)

product weight
0.37 lb(US) (0.17 kg)

Environment
standards
EN 1088
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14

product certifications
CSA
UL

safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

safety reliability data
B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)

protective treatment
TC

ambient air temperature for operation
-13...158 °F (-25...70 °C)

ambient air temperature for storage
-40...158 °F (-40...70 °C)

vibration resistance
5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6

shock resistance
25 gn 18 ms conforming to IEC 60068-2-27

electrical shock protection class
Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030

IP degree of protection
IP68 conforming to IEC 60529
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

IK degree of protection
IK06 conforming to EN 50102
