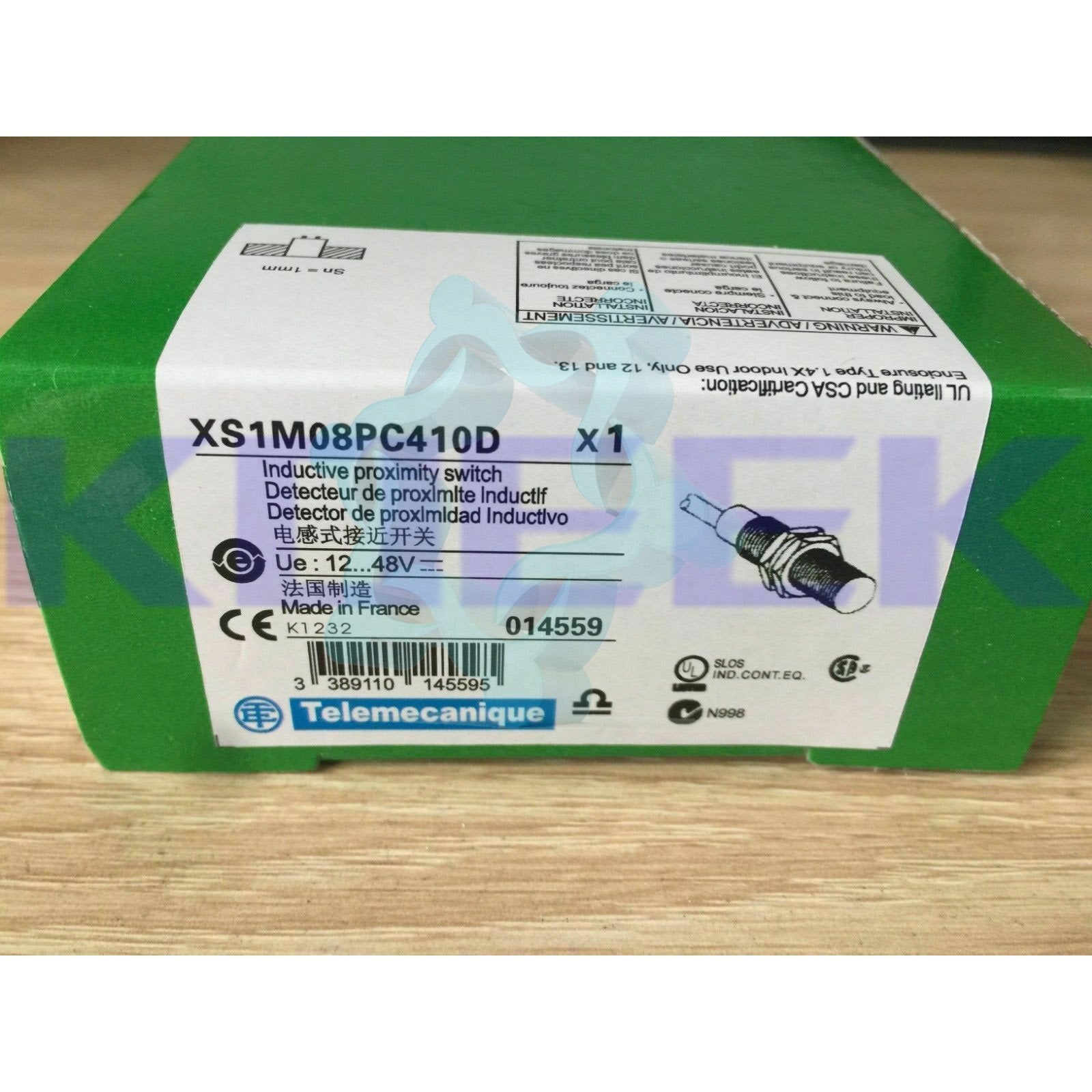

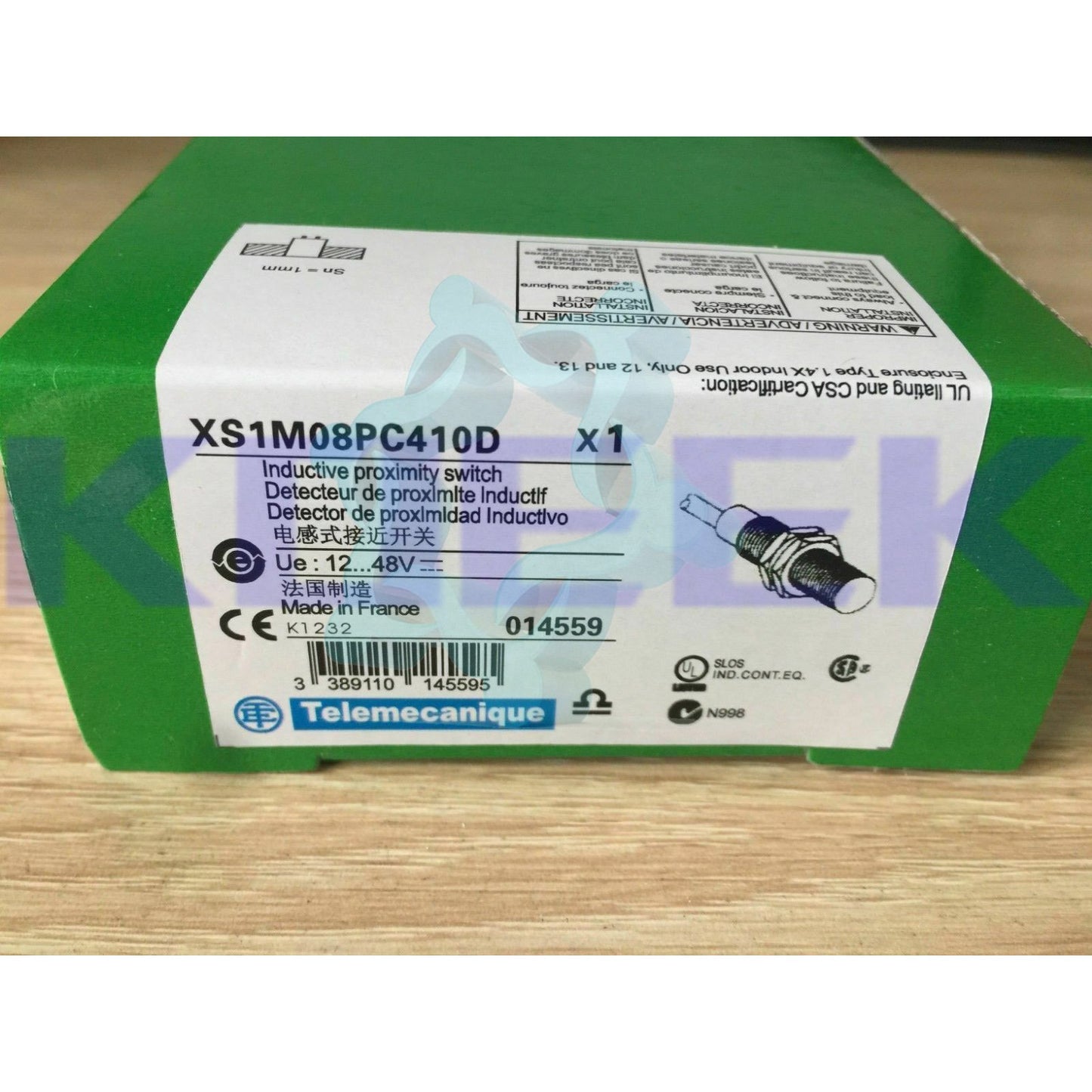

XS1M08PC410D

Save 13%

Price:
Sale price$33.00 USD Regular price$38.00 USD

Dear Customer,

We value your shopping experience on our ecommerce platform greatly. To ensure you get the best service and products, feel free to reach out to us directly at any time. Our customer service team is here to assist you, answer your questions, provide personalized advice, and help you make informed purchase decisions.

Whether you need product recommendations, custom orders, or have any inquiries, please do not hesitate to contact us. We look forward to providing you with exceptional service and ensuring you have a pleasant shopping experience!

Thank you for choosing us!

Warm regards,

The Team at KOEED

safe
Main
range of product
OsiSense XS

series name
General purpose

sensor type
Inductive proximity sensor

device application
-

sensor name
XS1

sensor design
Cylindrical M8

size
61 mm

body type
Fixed

detector flush mounting acceptance
Flush mountable

material
Stainless steel

type of output signal
Discrete

wiring technique
4-wire

[Sn] nominal sensing distance
0.06 in (1.5 mm)

discrete output function
1 NO + 1 NC

output circuit type
DC

discrete output type
PNP

electrical connection
4 pins M12 male connector

[Us] rated supply voltage
12...24 V DC with reverse polarity protection

switching capacity in mA
<= 200 mA with overload and short-circuit protection

IP degree of protection
IP67 conforming to IEC 60529

Complementary
thread type
M8 x 1

detection face
Frontal

front material
PPS

enclosure material
Stainless steel 303

operating zone
0...0.05 in (0...1.2 mm)

differential travel
1...15% of Sr

status LED
1 LED yellow output state

supply voltage limits
10...36 V DC

switching frequency
<= 5000 Hz

voltage drop
<= 2 V at closed state

current consumption
0...10 mA at no-load

delay first up
<= 5 ms

delay response
<= 0.1 ms

delay recovery
<= 0.1 ms

marking
CE

threaded length
1.65 in (42 mm)

height
0.71 in (18 mm)

length
2.4 in (61 mm)

product weight
0.06 lb(US) (0.025 kg)

Environment
product certifications
CSA
UL

ambient air temperature for operation
-13...158 °F (-25...70 °C)

ambient air temperature for storage
-40...185 °F (-40...85 °C)

vibration resistance
25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6

shock resistance
50 gn 11 ms conforming to IEC 60068-2-27
