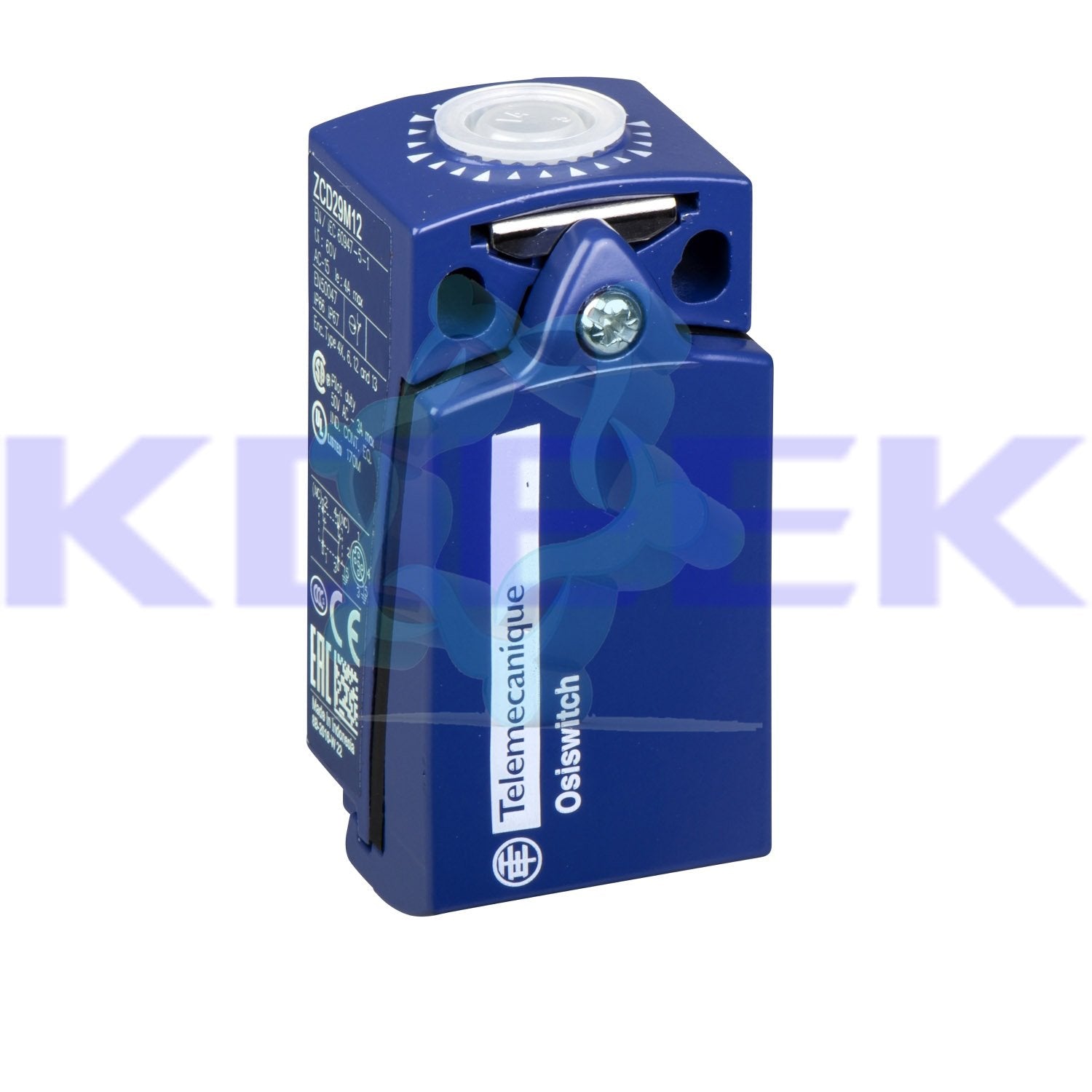

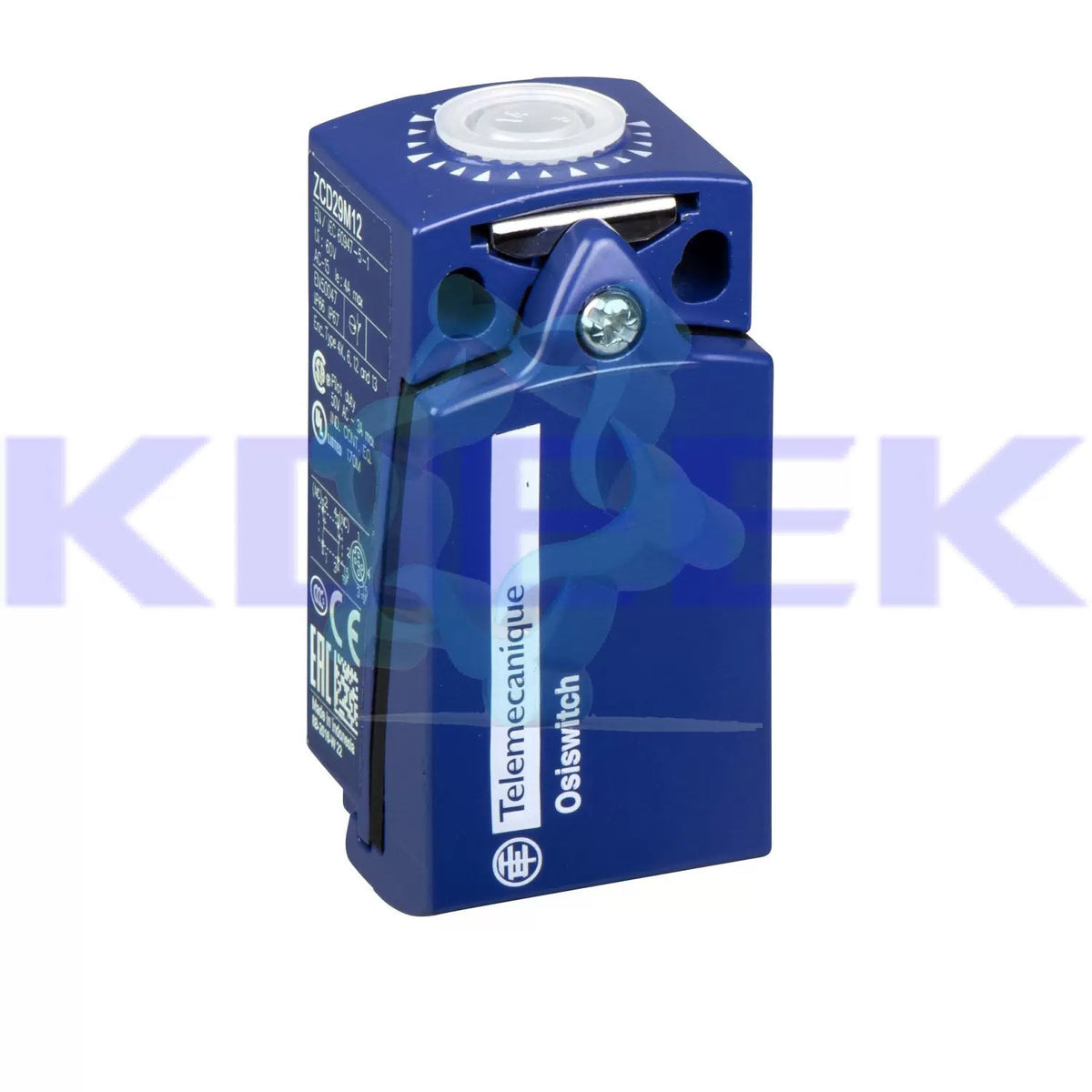

ZCD-21M12


Price:
Sale price$33.97 USD

Due to the constant fluctuations in product information, we kindly ask you to contact us before making a purchase to confirm the latest price before placing an order.

  • Business Days Only (Monday through Saturday)
Contact us By email Chat on WhatsApp
safe
Main
range of product
OsiSense XC

series name
Standard compact

product or component type
Limit switch body

device short name
ZCD

design
Compact

body type
Fixed

associated head
ZCE01
ZCE02
ZCE05
ZCE06
ZCE07
ZCE08
ZCE09
ZCE10
ZCE11
ZCE13
ZCE14
ZCE21
ZCE24
ZCE27
ZCE28
ZCE29
ZCE62
ZCE63
ZCE64
ZCE65
ZCE66
ZCE67
ZCEH0
ZCEH2

body material
Zamak

number of poles
2

contacts type and composition
1 NC + 1 NO

contact operation
Snap action

Complementary
electrical connection
Male connector M12 5 pins

contacts insulation form
Zb

contacts material
Silver plated contacts

positive opening
With

minimum actuation speed
0.03 ft/s (0.01 m/s)

contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage
300 V conforming to CSA C22.2 No 14
500 V degree of pollution 3 conforming to IEC 60947-1
300 V conforming to UL 508

resistance across terminals
< 25 mOhm conforming to IEC 60255-7 category 3

[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

short-circuit protection
10 A by gG cartridge fuse

[Ie] rated operational current
3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current
4 A

electrical durability
5000000 cycles, DC-13 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

width
1.22 in (31 mm)

height
2.56 in (65 mm)

depth
1.18 in (30 mm)

Environment
product compatibility
XCKD

ambient air temperature for operation
-13...158 °F (-25...70 °C)

ambient air temperature for storage
-40...158 °F (-40...70 °C)
