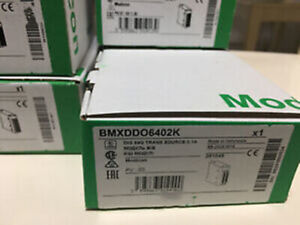

Schneider BMXDDO6402K — Modicon M340 64-Channel Digital Output Module

Schneider Electric · Modicon M340 / BMX · Transistor DO 24VDC 0.5A · In stock

The BMXDDO6402K is a 64-point solid-state (transistor, source) digital output module for the Schneider Electric Modicon M340 PLC platform. It sits on the BMX backplane alongside a BMXP34 processor and a BMXCPS power supply, and switches 24VDC loads up to 0.5 A per point — typically solenoid valves, contactors, indicator stacks and small motor starters in factory automation cells. KOEED keeps new-surplus and legacy M340 modules alongside equivalent Allen-Bradley, Siemens, Mitsubishi, Omron, Fanuc, Yaskawa, Panasonic and KEYENCE spare parts, so a single RFQ can cover a full machine bill of materials.

1. Key Technical Specifications & Overview

The BMXDDO6402K is built on the standard BMX form factor (a single slot on the M340 rack) and is wired through a 40-pin front connector using a removable terminal block (BMXFTB2020 or BMXFTB4020). All 64 channels are 24 VDC transistor outputs, source-switching (positive switching), grouped into four commons of 16 points each — this is the same architecture you see on the BMXDDO1602 16-point version, just at four times the density per slot.

2. Application Scenarios — Where the BMXDDO6402K Fits

The BMXDDO6402K is the workhorse output card of an M340 cell. Anywhere a Modicon M340 is asked to switch dozens of 24 VDC loads, this module is the right density: high enough to keep a single PLC rack compact, standard enough that every plant electrician has a spare in the cabinet.

• Discrete machine control: solenoid valves on packaging, filling and labeling machines — the 64-channel density removes the need to daisy-chain remote I/O for moderate-cell builds.
• Material handling: diverters, conveyor motor starters, stack-light towers and zone-release signals on conveyor lines in distribution centers.
• Automotive body-in-white and assembly: clamps, fixtures and indicator lamps on robotic cells where the M340 sits as a cell controller alongside Fanuc robots and Yaskawa servo amplifiers.
• Process auxiliaries: pump start/stop, valve actuation, heater stages and alarm beacons in water-treatment and chemical skids where the PLC is the local controller and a BMXP342020 CPU is the brain.
• Vision inspection cells: trigger and reject signals for KEYENCE vision systems on inspection stations.
• Building automation & infrastructure: lighting contactors, damper actuators and indicator panels in HVAC and water pumping stations.

If the project mixes brands — e.g. an M340 cell that talks to Allen-Bradley PanelView HMIs, a Siemens SINAMICS drive on a remote segment, and a Mitsubishi GOT on a sister line — KOEED can supply every module on the BOM from one RFQ.

3. Integration & Wiring Notes

M340 is one of the easier mid-range PLCs to wire, but the 64-point density of the BMXDDO6402K concentrates a lot of conductors in one connector. Plan the cabinet layout and the field-side routing before you start terminating.

For projects that combine Modicon M340 with Omron CP/CJ remote I/O, or with Panasonic FP-series islands, KOEED can also pre-stage the Modbus/TCP and EtherNet/IP gateway modules so the cabinet lands ready to bolt in.

4. Installation & Commissioning Tips

Field experience with the BMXDDO6402K consistently comes down to four habits: a clean install, a forced test, a proper firmware alignment, and a documented handover. These are the same habits that keep Allen-Bradley ControlLogix, Siemens ET 200 and Mitsubishi MELSEC-iQ-R cells running for twenty years.

• Pre-stage the project offline. Build the Unity Pro / EcoStruxure Control Expert project against the exact rack (BMXBPE0400 / 0600 / 0800 / 1200) and CPU firmware revision, export to the SD card on the BMXP34, then upload after first power-up. This catches rack & firmware mismatches before they waste a commissioning day.
• Forced I/O test before powering the field. Use the animation table to force each of the 64 outputs in sequence and verify the load side with a meter. A 64-point module is the last place you want to discover that pins 33–40 are reversed after the panel is dressed.
• Hot-swap discipline. The BMXDDO6402K supports hot-swap with a BMXCPS supply, but Schneider's own guidance is to lock the rack configuration before removing the module in a live process. Disable outputs, wait for the field contactors to drop out, then swap.
• Watch the group current. 0.5 A per point and 4 A per group are hard limits. If a group trips, the channel LED blinks and the diagnostics bit sets in Unity Pro — check the PLC error code on the PLC Error Code Database to localize the channel.
• Spare terminal block and label strip. Field techs will lose at least one BMXFTB2020 every project. Carry one spare terminal block and a printed label strip per DO module.
• Document the wiring book. Number every conductor on both ends. The 64-channel density is impossible to re-trace by hand once the wires are bundled into the duct.
• Use the AI Diagnostic Tool for fast triage. When commissioning a line that mixes M340 with Fanuc CNC and Yaskawa Sigma-7, the KOEED AI Diagnostic Tool accepts a photo of a nameplate and surfaces the most likely cross-references — useful when an M340 module sits next to legacy Omron SYSMAC and Panasonic FP parts.

5. Procurement, Warranty & Lead Time

KOEED holds the BMXDDO6402K in stock for fast international shipment, with quotes typically returned within 24 hours on business days. As a multi-brand China sourcing partner, we keep new-surplus and tested-refurbished options side by side — useful when the line is down and the OEM lead time is twenty weeks.

Need to pull a complete cabinet: BMXDDO6402K, BMXP342020 CPU, BMXCPS2000 supply, BMXFTB2020 terminal blocks, plus the BMXDDO1602 or BMXDDI1602 companion modules? Send the BOM to Moritta@KOEED.COM and we will return a single, line-itemized quotation. Engineers can also use the contact form or the AI Diagnostic Tool for 24/7 triage.
