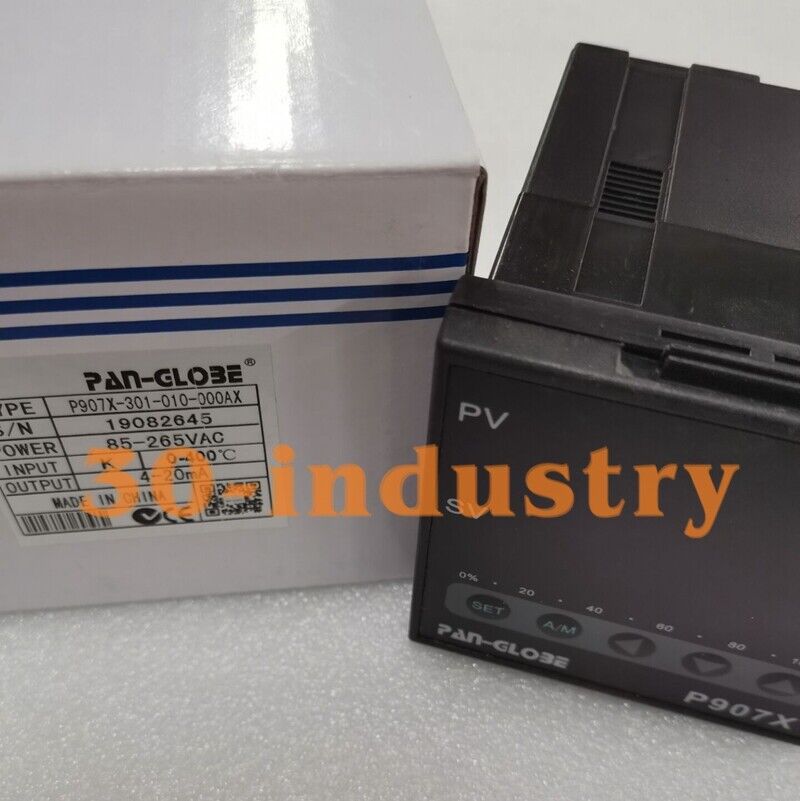

PAN-GLOBE P907X-301-010-000AX Temperature Controller - New 1PCS

Engineer's Quick Brief

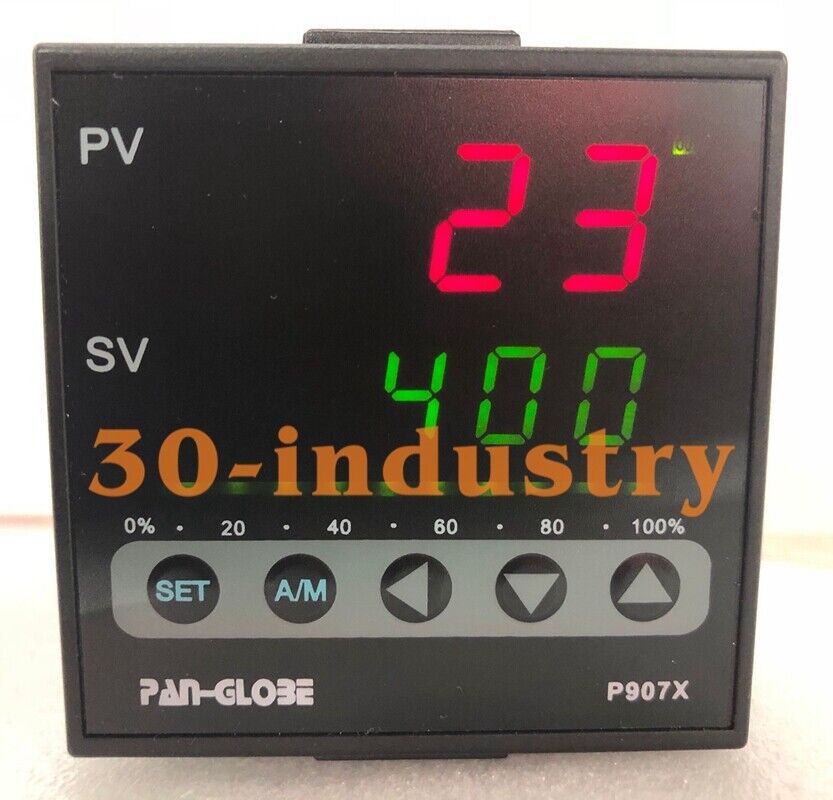

The PAN-GLOBE P907X-301-010-000AX is a high-precision, intelligent industrial temperature controller purpose-built for closed-loop thermal regulation across high-demand manufacturing networks. Operating seamlessly under wide alternating current inputs from **100V to 240V AC**, this microcomputer-based **digital thermostat panel** features dual high-visibility LED displays for simultaneous real-time Process Value (PV) and Set Value (SV) observations. Engineered by PAN-GLOBE, this high-performance instrument handles multiple input calibrations, including standard K, J, E, and Pt100 sensors, rendering it an optimized standard hub for plastic injection molding machinery, packaging heat sealers, and industrial industrial kilns.

Technical Specifications

Application Matrix

Koeed B2B Tool: Sensor Metric Converter & Time-Proportional Cycle Estimator

Automation field engineers must verify raw analog sensor metrics and coordinate VFD/SSR time-proportional cycles to achieve stable thermal loop balancing. Use this configuration utility to calculate expected physical benchmarks.

Troubleshooting & Field Diagnostics FAQ

Q1: What root variables cause the digital front panel to display an "Eurr" or "oFL" error tracking string?

An "Eurr" (Sensor Error) or "oFL" (Overflow/Open) display profile indicates an absolute physical connection line break or a polarity assignment swap within the input analog sensor loop. When a thermocouple burns open inside a running heating cylinder, the controller activates its integrated open-sensor breakdown protection, forcing the control loop output current down to zero percent to save the plant from continuous heating thermal runaways. Verify terminal block screw torque and cross-examine extension wire shielding paths for earth ground leaks.

Q2: How do technicians eradicate severe temperature hunting overshoots during initial startup parameters?

Severe temperature hunting or continuous short-cycling around target sets indicates that the internal PID tuning constants do not match the physical mass thermal inertia coefficients of the heating block, or the device is set to standard On/Off manual hysteresis code. Isolate machine mechanical loads first, then initialize the on-board **Auto-Tuning (AT)** command cycle via the keypad array. Allow the microprocessor to cycle the heater across three operational balance steps to calculate and save optimized proportional, integral, and derivative terms automatically.

Q3: Why does a newly integrated external Solid State Relay fail to switch off, causing unmitigated heating?

A continuous, unmitigated heating loop where the SSR locks wide open points to a hardware output option mismatch or high leakage current shorting out the drive gate array. If the P907X variant model configuration is structured for a low-voltage pulse output (12VDC SSR drive logic rail), never attempt to wire a high-capacity inductive AC contactor coil directly to those control pins. Back-EMF spikes from inductive loads draw heavy transient currents that permanently short out the driving internal output transistors, leaving the terminal channel continuously conducting.

Cross-Reference Guide

When recording factory asset spreadsheets, modernizing legacy instrumentation panel enclosures, or organizing component inventory records, note the following comparative guidelines:

• Direct Spatial Footprint Matching: Fits standard 72mm × 72mm industrial panel-mount cutouts, matching identical DIN standard square frame dimension matrix configurations.
• Universal Controller Interoperability: Direct physical functional replacement alternate for entry-level digital temperature controllers from global automation brands (such as Omron E5CC/E5EC series, RKC Rex-C700 profiles, and Fuji PXF series modules), provided main control output styles (Relay vs SSR pulse output voltage) are verified in the control schematic drawing blueprints.
