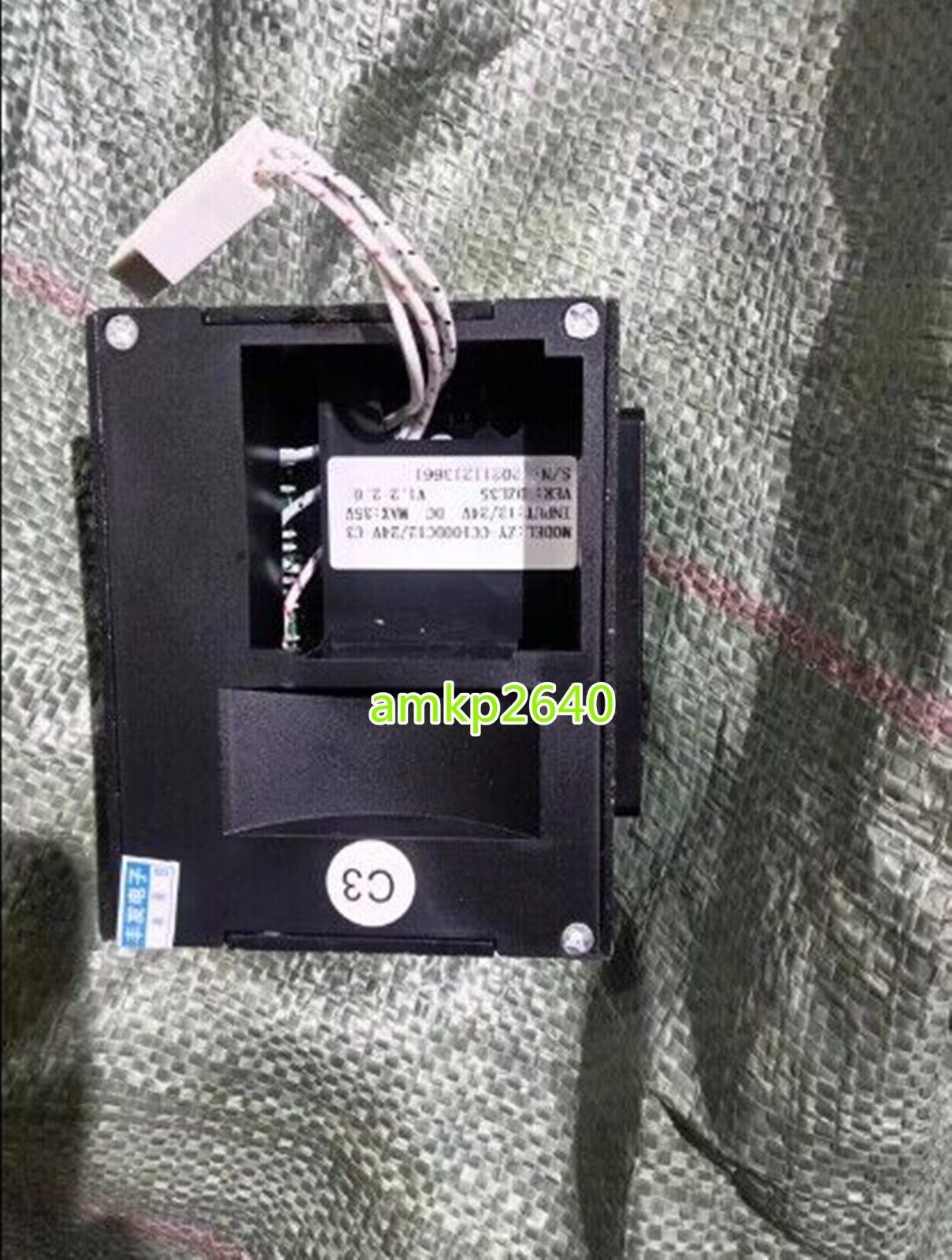

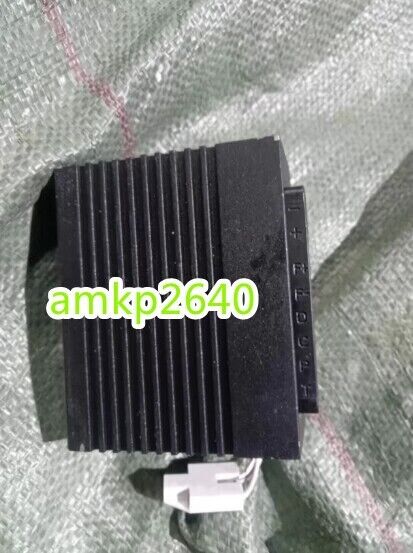

Used ZY-CC100DC12/24V-C3/C2 DZL35 Variable Frequency Compressor Drive Module

Used ZY-CC100DC12/24V-C3/C2 DZL35 Variable Frequency Compressor Drive Module

$340.87 USD
$340.87 USD $340.87 USD
Promoção Esgotado
Frete calculado no checkout.
Condition used
MPN Unbranded
Model Number C3/C2 DZL35
Product Type Compressor Drive Module
Voltage Range 12V/24V
Technology Variable Frequency
Application Industrial Use
Chat on WhatsApp
Ver informações completas

  • step 1: Quote Or Shop Now

    You can place an order directly or contact us via email and whatsapp for a quote

  • step 2: Confirmation and delivery

    After placing an order, we will contact you by email or WhatsApp within three days to provide photos and videos of the product for confirmation and then ship it.

Customers are saying

4.99 ★ (1084)
Verified

Description


Used ZY-CC100DC12/24V-C3/C2 DZL35 Variable Frequency Compressor Drive Module

This used ZY-CC100DC12/24V-C3/C2 DZL35 variable frequency compressor drive module offers reliable performance in industrial settings with its efficient energy management and flexible voltage operation.

This used compressor drive module is designed for variable frequency operation and is compatible with 12V and 24V power systems. It is ideal for industrial applications where flexible and efficient energy management is crucial. The module is built to handle high performance while maintaining energy efficiency.

Engineer's Quick Brief

  • Dual Voltage Input: Automatically detects and operates on either 12V or 24V DC power supplies, ideal for off-grid and battery-based systems.
  • Variable Frequency Control: Drives standard BLDC (Brushless DC) micro-compressors with adjustable speeds to optimize cooling efficiency and power consumption.
  • Cost-Effective Replacement: This used/refurbished module serves as an economical drop-in replacement for damaged controllers in mobile refrigeration units, rigorously tested for functionality.

Product Overview

The ZY-CC100DC12/24V-C3/C2 DZL35 Variable Frequency Compressor Drive Module is a specialized inverter board designed to run small direct current hermetic compressors. Commonly utilized in RV refrigerators, marine coolers, and solar-powered cold storage, this controller converts incoming DC battery power into the 3-phase AC required by BLDC compressors. As a used/tested component, it offers technicians and DIY builders a reliable way to resurrect dead portable fridges without the high cost of a brand-new OEM controller.

Technical Specifications

Specification Parameter Details
Part/Model Number ZY-CC100DC12/24V-C3/C2 (DZL35)
Condition Used / Refurbished / Fully Tested
Input Voltage (Auto-Sensing) 12V DC / 24V DC
Output Driver Type 3-Phase Variable Frequency (for BLDC Compressors)
Standard Pinout Layout +, - (Power Input) | F+, F- (Fan Output) | D, + (LED Diagnostic) | C, P, T (Thermostat & Speed Resistor)
Low Voltage Battery Protection Integrated (Adjustable via external resistor across C and P/T pins)
Cooling Fan Output Matches input voltage (12V input = 12V fan max 0.5A typically)

Application Matrix

  • Recreational Vehicles (RVs) & Marine: Direct replacement for controllers in standard 12/24V cabinet fridges and chest freezers.
  • Solar Refrigeration: Highly efficient drive module capable of running directly off solar-charged battery banks.
  • Truck Cabin Coolers: Restores functionality to heavy-duty truck sleeper cab refrigerators.

Koeed B2B Tool: DC Compressor LED Diagnostic Analyzer

These controllers feature built-in self-diagnostics. If the compressor fails to start, connect a standard 10mA LED across the diagnostic pins (+ and D). Count the number of flashes (every 4 seconds) and use our tool below to determine the fault.

Select the Number of LED Flashes
Awaiting selection...
Click a button above matching the LED flash pattern to view the diagnostic result and recommended repair action.

Troubleshooting & FAQ

Q: How do I test if this used drive module is functioning correctly?
A: Supply steady 12V or 24V DC to the + and - terminals. Jumper the thermostat terminals (usually C and T). If you do not have a compressor connected, the board should trigger a 3-flash LED error (Motor Start Error) indicating the internal logic is working but cannot detect the motor phases.
Q: The compressor tries to start, twitches, and then stops. Is the module bad?
A: Not necessarily. This is classic behavior for a voltage drop. Even if your battery reads 12.5V at rest, the high starting current of the compressor can cause thin, long, or corroded wires to drop the voltage below the controller's cut-out threshold at the very moment it tries to start. Always test voltage directly at the module pins under load.
Q: How do I adjust the compressor speed on the ZY-CC100 module?
A: Compressor speed is regulated by placing a specific resistor in series with the thermostat circuit (typically between the C terminal and the thermostat). A 0 Ohm resistor (direct wire) usually sets it to the lowest speed (e.g., 2000 RPM), while adding resistance (e.g., 1523 Ohms) increases the speed to maximum capacity (e.g., 3500 RPM). Consult standard BD35F resistance tables for exact RPM values.

Cross-Reference Guide

This ZY-CC100 / DZL35 variable frequency drive module utilizes industry-standard communication and power logic. It can often serve as a direct functional replacement or alternative for:

  • Danfoss / Secop Controllers: Part numbers 101N0210, 101N0220, 101N0212 (Used on BD35F and BD50F compressors).
  • Generic Chinese Controllers: Compatible with QDZH35G, QDZH50G, and similar 12/24V micro-compressors found in Alpicool, Dometic, and ARB portable fridges.

Note: Always verify the physical mounting footprint and pin orientation before finalizing your installation.
