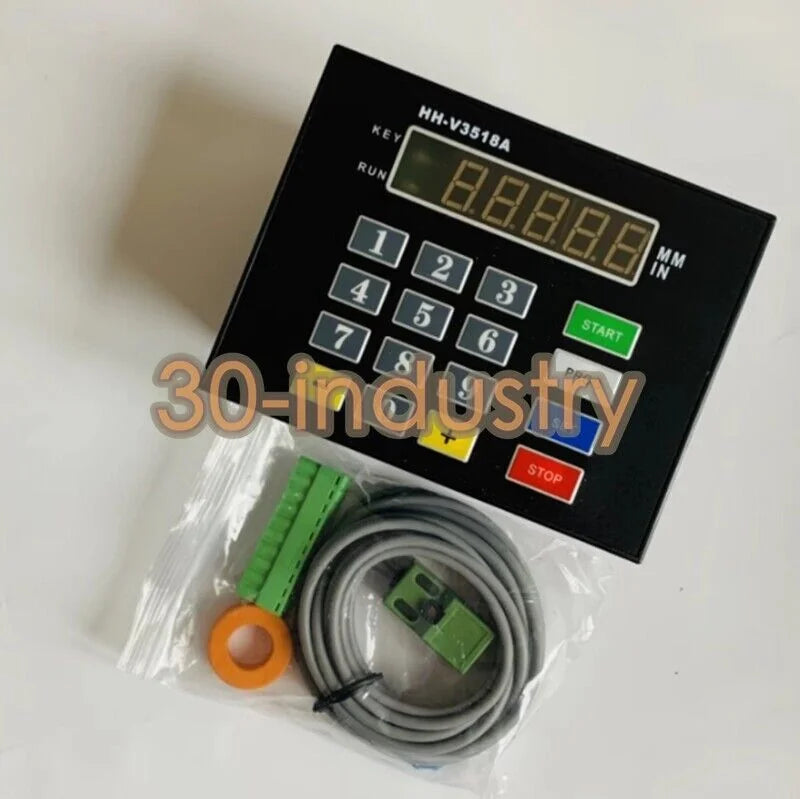

Digital Sanding Machine Thickness Gauge Meter HH-V3518A Controller

Digital Sanding Machine Thickness Gauge Meter HH-V3518A Controller

$331.24 USD
$331.24 USD $331.24 USD
Sale Sold out
Shipping calculated at checkout.
MPN HH-V3518A
display_type Digital
power_supply Battery operated
measuring_range 0-20mm
weight 300g
features Automatic shutoff, backlit display
unit_of_measurement Metric and Imperial
model HH-V3518A
accuracy ±0.01mm
dimensions 150 x 70 x 30 mm
View full details

  • step 1: Quote Or Shop Now

    You can place an order directly or contact us via email and whatsapp for a quote

  • step 2: Confirmation and delivery

    After placing an order, we will contact you by email or WhatsApp within three days to provide photos and videos of the product for confirmation and then ship it.

Customers are saying

4.99 ★ (1084)
Verified

Description


Digital Sanding Machine Thickness Gauge Meter HH-V3518A Controller

The HH-V3518A is a high-precision digital sanding machine thickness gauge designed for easy measurement and display of wood, plastic, and metal thickness. With its advanced technology, the HH-V3518A offers a reliable measurement range of 0-20mm with an accuracy of ±0.01mm. Ideal for professionals, the HH-V3518A's user-friendly digital display ensures ease of use. This product is lightweight at just 300g and features compact dimensions of 150 x 70 x 30 mm, making it highly portable. The HH-V3518A also includes an automatic shutoff feature to save battery life, along with a backlit display for visibility in low-light conditions. Perfect for ensuring precision in sanding tasks, the HH-V3518A is an essential tool for craftsmen and DIY enthusiasts alike.

Engineer's Quick Brief

  • High-Precision Grating Scale Integration: Purpose-built for industrial wide-belt sanding machines to deliver micro-level thickness monitoring down to a 0.01mm resolution boundary.
  • Dynamic Belt Wear Compensation: Supports automatic offset calibration parameter sets, completely neutralizing mechanical tolerances induced by structural sanding belt abrasion or continuous thermal expansions.
  • Dual Matrix Relay Interlock Control: Outfitted with independent upper and lower boundary limit relay circuits, preventing physical collision accidents between the grinding head and the heavy feed conveyor bed.

HH-V3518A Digital Sanding Machine Thickness Controller

The HH-V3518A is an industrial-grade high-precision sanding machine thickness gauge and automatic alignment controller engineered specifically for heavy-duty woodworking sanders, metal grinding equipment, and wide-belt calibrating machineries. Utilizing a premium digital microprocessor matrix, this thickness controller meter accepts dual parallel signal paths from displacement transducers or linear grating scales to compute exact physical board profiles in real time. Operating over a stabilized internal noise-isolated circuit framework, the HH-V3518A eliminates operator alignment discrepancies by running micro-step pulse tracking parameters, driving lift motors seamlessly to secure repeating geometric accuracy across variable wood, polymer, and composite industrial panel processing batches.

Technical Specifications

Engineering Hardware Parameter Technical Specification Value
Product Model Designation HH-V3518A Series
Controller Instrument Category Digital Sanding Machine Thickness Controller Meter
Display Architecture High-Visibility 7-Segment Dual LED Windows (Target vs Actual)
Input Power Supply Requirements 220V AC (±15% Tolerance, 50Hz / 60Hz Operation)
Measurement Measurement Range 0.00 mm to 999.99 mm
Resolution Capabilities 0.01 mm / 0.001 Inches
Input Interface Compatibility A/B Phase Quadrature Encoders / Push-Pull Linear Scales
Discrete Relay Switch Ratings 3A at 250V AC (Independent Upper, Lower, and Fast/Slow Speed Cutoffs)
Panel Mounting Envelope Dimensions 96 mm x 96 mm Square Enclosure
Enclosure Protection Class IP54 Splash-Proof Dust-Sealed Front Membrane Keypad

Application Matrix & Automation Scenarios

Deployment Target Machinery Thickness Meter Alignment Task System Level Operational Payoff
Woodworking Wide Belt Sanders Automates lifting motor cycles to set the distance gap between the sanding roller and the raw wood block. Ensures absolute sizing uniformity across entire MDF or solid veneer kitchen cabinet door production runs.
Metal Sheet Calibrating Machines Monitors heavy abrasive grinding loads over thick steel or aluminum panels under significant vibrational stress. The hardware electronic filter completely stops readout flickering caused by violent surface vibration.
Plywood Edge Planing Equipment Tracks multi-point core veneer thickness limits via high-durability contact rollers. Reduces manual caliper measurement frequency, mitigating raw material waste profiles.

Quick Insights: Sanding Machine Pulse Equivalent & Calibration Optimizer

For Field Commissioning Engineers: Input your mechanical transmission parameters to calculate the precise Pulse Equivalent (mm/pulse) value and verify required wear compensation settings for the HH-V3518A terminal register.

Commissioning & Calibration Maintenance FAQ

Q1: What are the exact steps to calibrate the zero-point mechanical datum reference on the HH-V3518A panel?

A1: Place a master reference gauge block or a freshly planed board with a pre-measured thickness (e.g., exactly 20.00mm via an external digital caliper) under the sanding head. Crank the conveyor bed until the sanding belt lightly kisses the reference piece. Press and hold the **SET button** on the HH-V3518A front interface panel for 3 seconds to access the offset register mode, input the value `20.00` via the arrow keys, and press **SET again** to lock the current electronic scale location to the master reference datum.

Q2: Why does the actual sanded panel thickness read thinner than the controller display target after continuous plant operation?

A2: This dimensional skew typically indicates **sanding belt thickness loss** or mechanical tracking slippage along the encoder coupler linkage. As the abrasive surface wears away from high-feed pressure, the physical sander radius shrinks, causing the head to cut deeper than the structural home scale indicates. To fix this, log the thickness variance and input the fractional offset millimeter correction into the **Belt Abrasion Compensation Parameter (typically register code P05)**.

Q3: How do I resolve a rapid, continuous flashing error or erratic readout hunting on the LED indicator block?

A3: Erratic readout behavior confirms signal terminal loss or severe high-frequency EMI cross-talk interrupting the A/B encoder logic lines. Isolate power networks and verify the integrity of the encoder shield link. The terminal drain shield must be connected to a single clean factory earth node on the electrical enclosure wall. Never route input signal cabling lines parallel to high-current AC motor phase lines inside the same layout ducts without grounded physical conduit partitioning.

Cross-Reference Guide

The HH-V3518A Thickness Meter matches the standard 96mm x 96mm DIN panel form factor widely implemented by industrial sanding machine builders. When reviewing procurement logistics or planning field retrofits, check these interchangeable and alternative platform options:

Equivalent Series Formats Interchange Configuration Status Critical Mechanical & Wiring Verifications
HH-V3518 / HH-V3518B Alignment Series Direct Core Family Variant Replacement Utilizes the same panel envelope and terminal definitions. Check the specific suffix code to verify if your current configuration demands a 24V DC input line instead of the standard 220V AC mains connection.
Autonics S9696 Series Panel Counters Functional Portfolio Matching Fits matching 96x96 cutout geometry. However, generic counters lack built-in dedicated sander wear compensation macro parameter maps; custom PLC or scale offset scripting logic will be required to replicate original system behavior.
