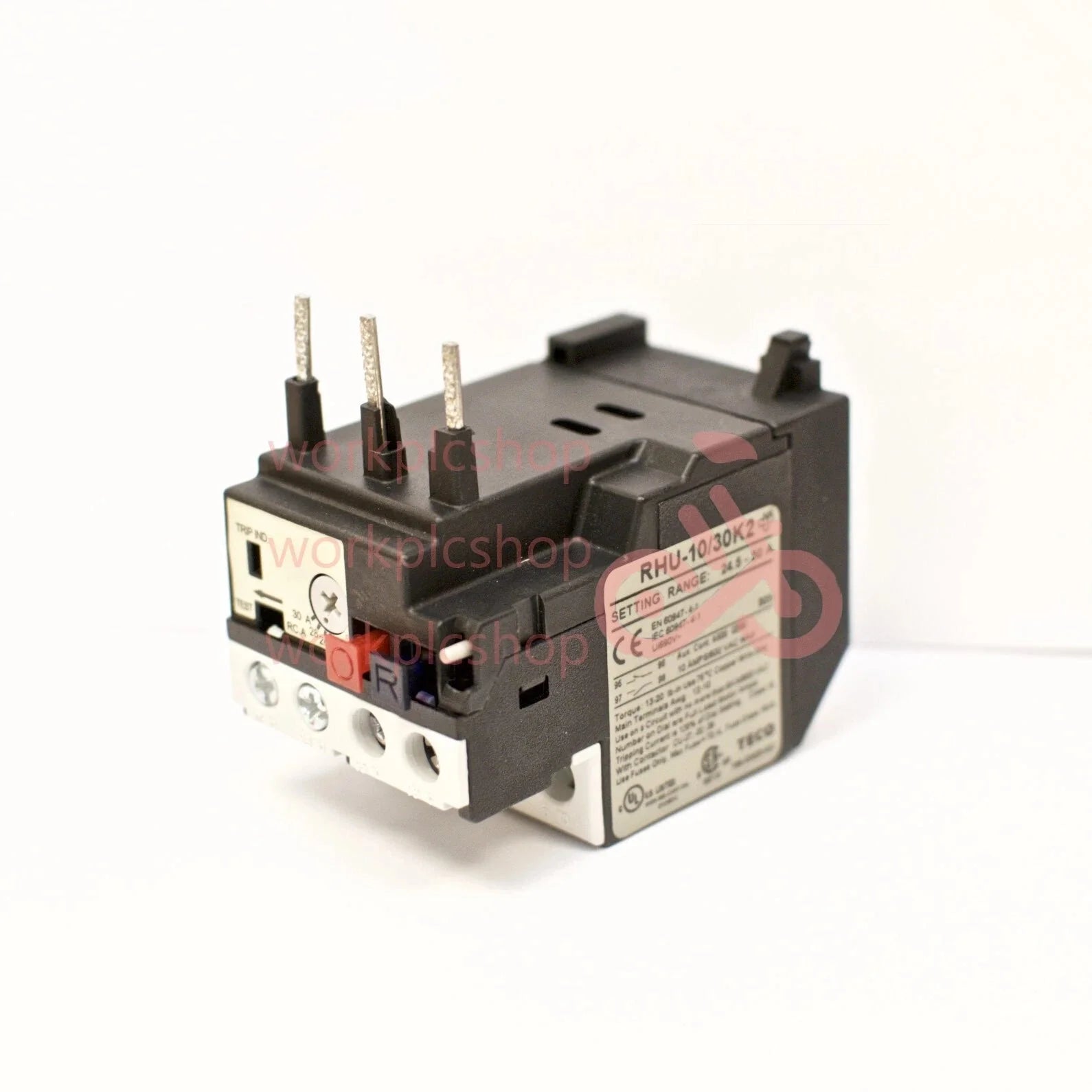

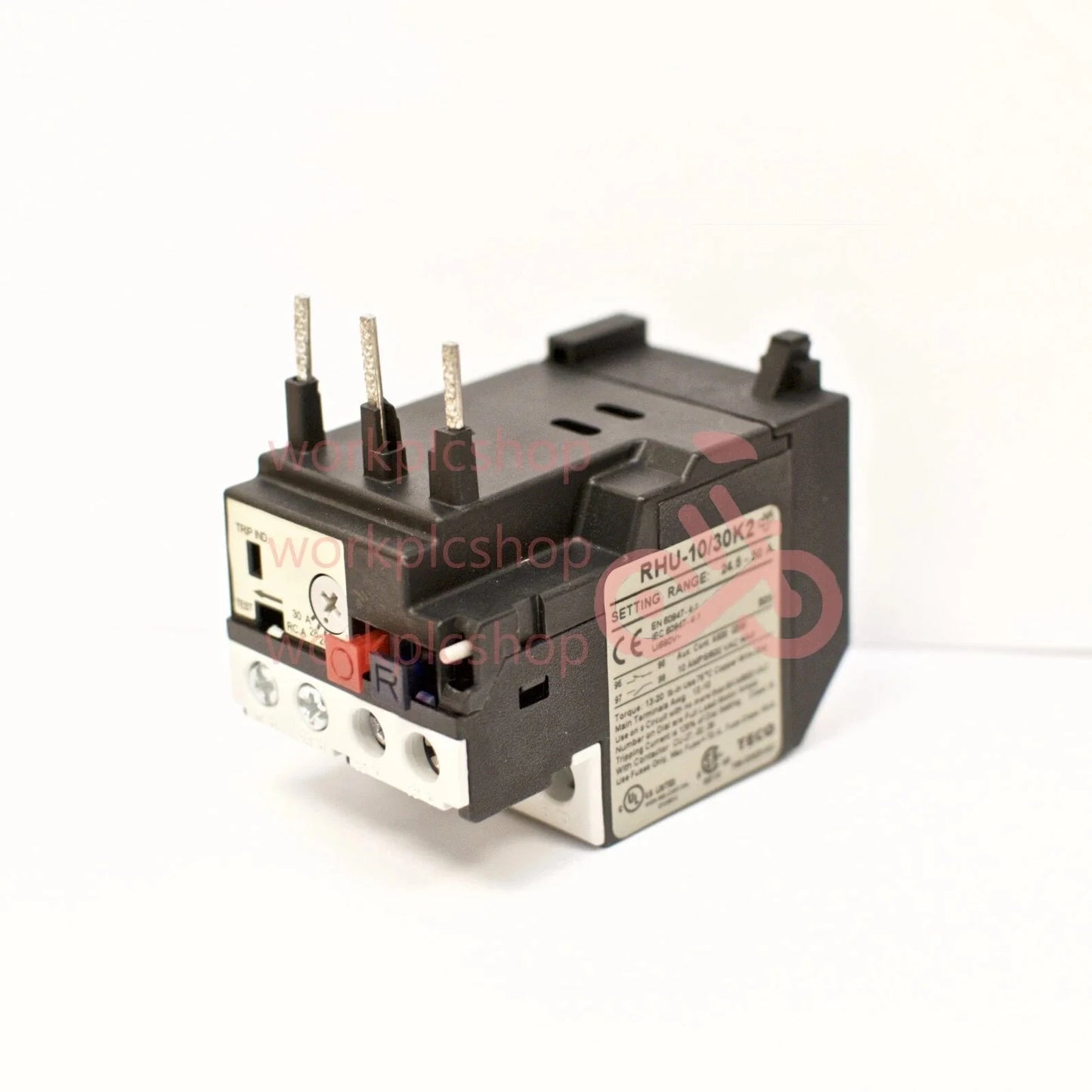

TECO RHU-10/30K2 thermal overload relay, Amp range: 24.5 ~ 30A

TECO RHU-10/30K2 thermal overload relay, Amp range: 24.5 ~ 30A

$49.63 USD
$49.63 USD $49.63 USD
Sale Sold out
Shipping calculated at checkout.
Condition new
MPN TECO RHU-10/30K2 24.5 ~ 30A
View full details

  • step 1: Quote Or Shop Now

    You can place an order directly or contact us via email and whatsapp for a quote

  • step 2: Confirmation and delivery

    After placing an order, we will contact you by email or WhatsApp within three days to provide photos and videos of the product for confirmation and then ship it.

Customers are saying

4.99 ★ (1084)
Verified

TECO RHU-10/30K2 Thermal Overload Relay (24.5 ~ 30A)

The TECO RHU-10/30K2 is a robust and reliable thermal overload relay (TOR) designed for the protection of AC induction motors against sustained overcurrents and phase failure conditions. Featuring an adjustable current dial range of 24.5A to 30A, this bimetallic relay seamlessly integrates into industrial motor control centers, ensuring your valuable rotating equipment is safeguarded from thermal damage.

At Koeed, we provide genuine industrial control components to maintain the safety and uptime of your automated processes. Keywords: TECO RHU-10, Thermal Overload Relay, 24.5-30A Relay, Motor Protection, TECO OLR, Bimetallic Overload.

Technical Specifications & Features

Critical FAE Note: The specifications below outline the standard capabilities of the TECO RHU-10 series. Always ensure that the physical pin arrangement aligns with your specific TECO magnetic contactor before mounting.

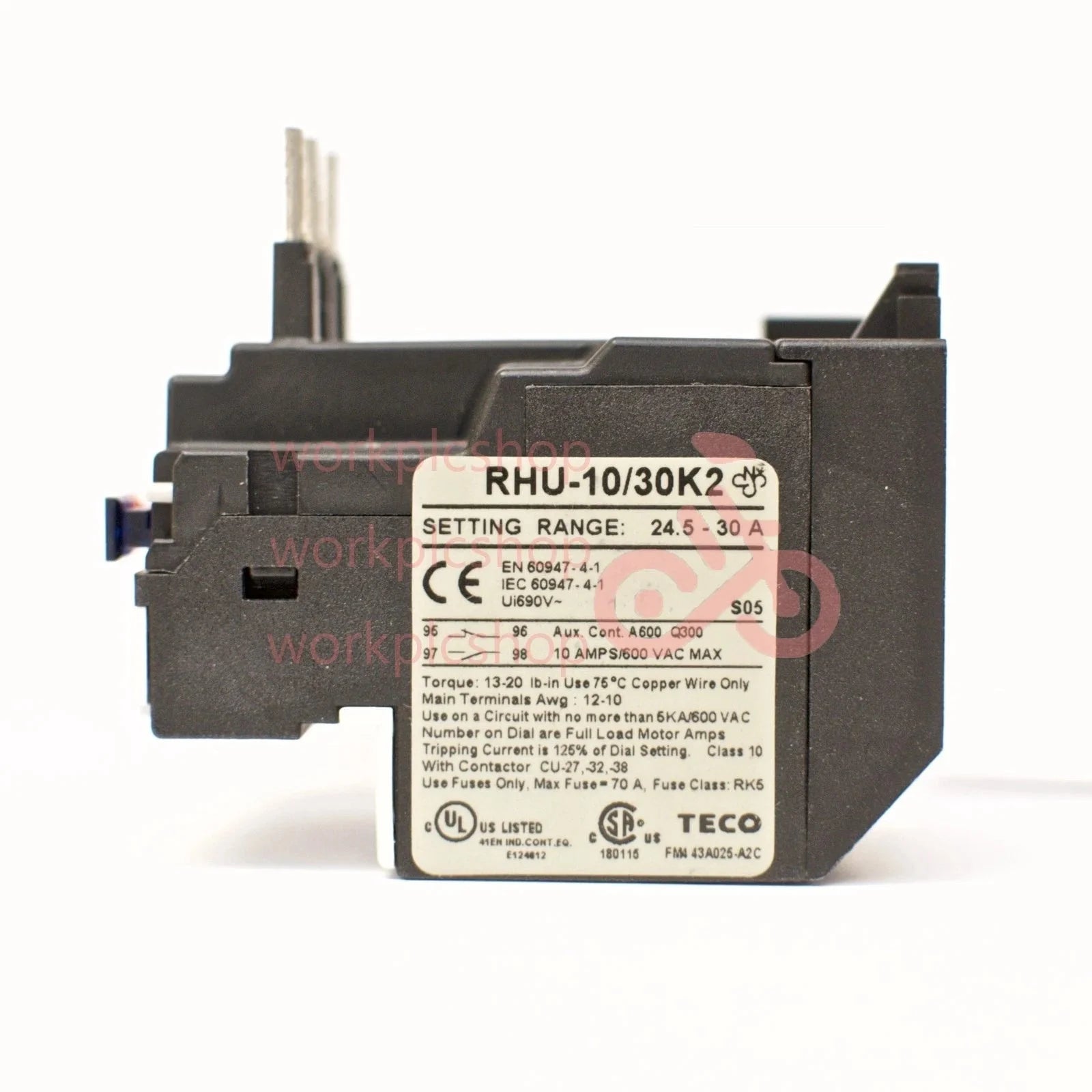

Specification Category Detail / Parameter
Manufacturer TECO (TECO Electric & Machinery Co., Ltd.)
Model Series RHU-10
Specific Part Number RHU-10/30K2
Adjustable Current Range 24.5 A ~ 30 A
Protection Mechanism Bimetallic thermal elements with phase loss sensitivity
Trip Class Typically Class 10 (Trips within 10 seconds at 600% of setting)

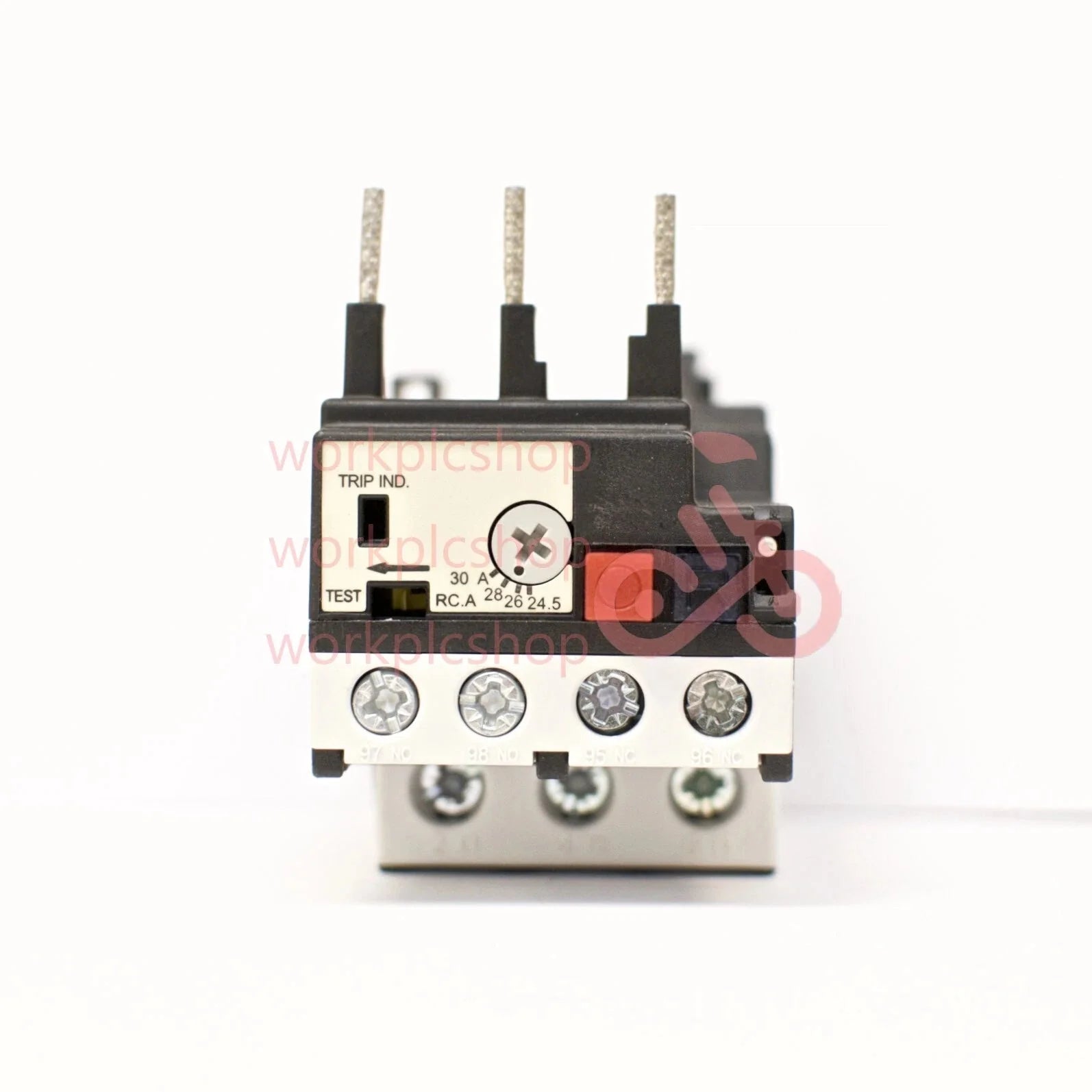

Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed)
Reset Function Selectable Manual (Hand) or Automatic reset modes
Ambient Temperature Compensation Built-in (Maintains accuracy across standard industrial temperature ranges)

Industrial Application & Motor Protection

The RHU-10/30K2 acts as the thermal "fuse" of your motor control circuit. When a motor draws excessive current due to a mechanical jam, bearing failure, or phase imbalance, the internal bimetallic strips heat up and bend. This mechanical deflection eventually trips the auxiliary contacts, dropping out the magnetic contactor's coil and stopping the motor before its insulation melts. Properly setting the adjustment dial based on your motor's nameplate Full Load Amps (FLA) is crucial to balancing nuisance-free operation and stringent protection.

🛠️ Koeed Engineer's Tool: Motor Overload Dial Setting Calculator

A frequent question during commissioning is: "Where do I point the overload dial?" Use our frontend calculator to determine the recommended dial setting and the maximum allowable setting according to standard motor protection guidelines (e.g., NEC 430.32), based on your motor's Nameplate FLA and Service Factor (SF).

Troubleshooting FAQ for Thermal Overload Relays

Q: How should I wire the auxiliary contacts (95/96 and 97/98)?

A: The Normally Closed (NC) contacts, typically terminals 95 and 96, must be wired in series with your magnetic contactor's coil circuit. When an overload occurs, these contacts open, dropping the power to the coil and stopping the motor. The Normally Open (NO) contacts, terminals 97 and 98, close during an overload and are used to send a fault signal to a PLC or illuminate a red warning light on your control panel.

Q: The motor tripped on overload, but pressing the reset button does nothing. Why?

A: A thermal overload relay operates on physical heat. The internal bimetallic strips must be given several minutes to cool down and return to their original shape before the mechanical latch can be reset. Wait 3 to 5 minutes, then press the reset button firmly. If it is set to "Auto-Reset," it will reset itself once cooled, but use this mode with extreme caution to prevent unexpected motor restarts.

Q: Why does the relay trip immediately during motor startup, even though the running current is normal?

A: Standard overload relays are typically "Class 10," meaning they will trip in 10 seconds or less at 600% of their setting. If you are starting a high-inertia load (like a massive industrial fan or centrifuge), the motor draws high starting current (inrush) for longer than 10 seconds. In this scenario, you may need to upgrade to a "Class 20" or "Class 30" overload relay designed for heavy starting duties.
