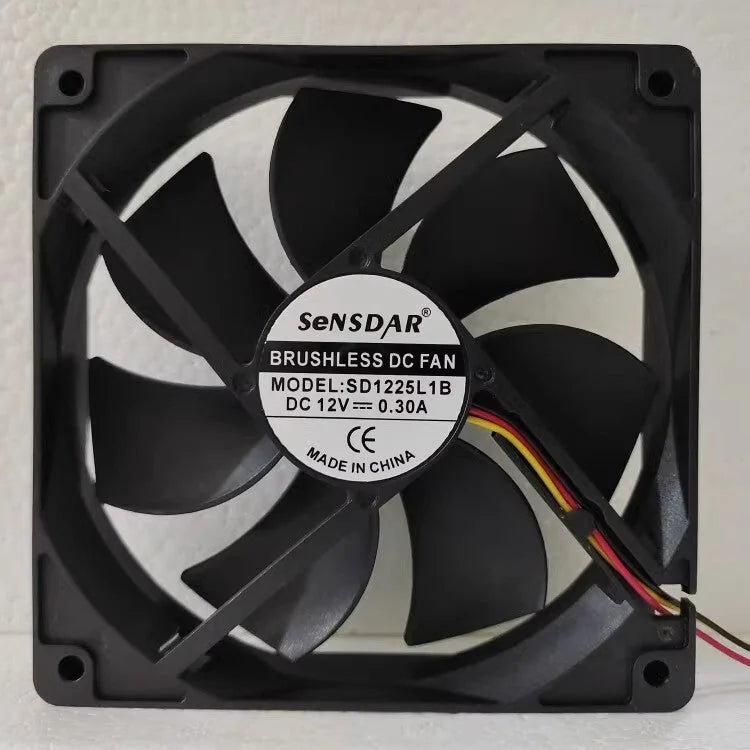

SENSDAR SD1225L1B 12025 DC12V 0.30A 12CM 3-Wire Cooling Fan

Engineer's Quick Brief

• Industrial Dual Ball Configuration: Outfitted with high-precision dual ball bearings, guaranteeing continuous 24/7 rotational longevity and multi-angle installation stability.
• Optimized Electrical Efficiency: Operates on standard 12V DC drawing 0.30A, delivering a balanced 3.6W thermal extraction matrix without taxing auxiliary control power lines.
• Integrated TACH Feedback: Outfitted with a 3-wire interface containing a dedicated speed detection output (Tachometer/FG signal) for real-time PLC or controller hardware monitoring loop integration.

SENSDAR SD1225L1B 12025 DC 12V Cooling Fan Overview

The SENSDAR SD1225L1B is a heavy-duty, industrial-grade 120mm × 120mm × 25mm (12025) DC axial cooling fan designed to deliver consistent volumetric air exchange inside modern electrical enclosures. Engineered to operate on a stable DC 12V power framework, this fan maintains an efficient operational profile with a rated continuous current draw of 0.30A. Encased in a rigid, UL 94V-0 rated PBT composite frame, the SD1225L1B employs premium dual ball bearings to maximize mechanical endurance under harsh ambient temperatures. Featuring a functional 3-wire termination layout, it delivers integrated tachometer feedback crucial for system automation fail-safes across server racks, power supplies, and control cabinets.

Technical Specifications

Industrial Application Matrix

Koeed Field FAE Tool: Cabinet Thermal Load & Airflow Requirement Calculator

When outfitting an industrial control enclosure, engineers must determine the total volumetric airflow required to prevent internal component degradation. Input the cumulative equipment heat load and target delta temperature below to estimate airflow criteria.

Field Commissioning & Installation Maintenance Guide

Q: What are the interface pinout tracking assignments for the 3-wire lead configuration?

The three distinct conductor insulated lead lines on the SD1225L1B follow standardized low-voltage electrical cooling conventions for color distribution mapping:

• Black Conductor (GND): Returns the reference frame negative path to the primary 0V ground terminal supply line.
• Red Conductor (VCC): Connects directly to the positive power rail supply block, accepting a continuous DC 12V source.
• Yellow Conductor (TACH / FG Signal): Frequency generator tachometer speed feedback. This configuration functions via an internal open-collector circuit layout. It triggers two digital pulses per physical revolution, enabling upstream monitoring hardware to log motor speed trends.

Q: The fan power loop is active but the speed monitor tracks zero RPM. How is this corrected?

An accurate voltage feed combined with a zero RPM feedback trace generally points to a signal routing error rather than a physical motor failure. Follow this diagnostic sequence:

1. Verify External Pull-Up Resistor Presence: Because the internal tachometer transistor loop uses an open-collector design, it lacks native voltage drive. Engineers must wire an external pull-up resistor (typically 4.7kΩ to 10kΩ) bridging the Yellow signal node and the control logic power level (VCC) to register alternating digital square waves.
2. Check Control Node Ground Potentials: Ensure that the ground plane (0V) of the fan's 12V supply loop is directly bonded to the ground plane of the recording PLC or microcontroller interface. Mismatched reference potentials clip signal sweeps.
3. Inspect for Micro-Particle Stagnation: Isolate electrical sources and spin the blades manually. Check for dust buildup that can cause mechanical drag and slow the motor down.

Q: Can this 12V fan be modified to operate on a standard 24V automation line?

No. Connecting the SD1225L1B directly to a 24V DC terminal rail will cause serious hardware damage. Over-voltage conditions draw excessive current through the copper windings, causing rapid thermal breakdown of the drive IC and permanent coil failure. Always use a dedicated DC-DC step-down buck converter or step-down regulator to maintain stable 12V DC input conditions.

Cross-Reference Guide

The SENSDAR SD1225L1B configuration shares dimensional attributes and operational ratings with these standard industrial 12025 cooling components:

• Nidec Beta V Alternative: D1225B12B Series (120x120x25mm dual-ball layout; verify tachometer logic outputs before re-routing signal leads).
• Delta Electronics Equivalent: AFB1212LE Series (Standard low-speed 12V DC cooling configuration matching the 3-wire deployment footprint).
• Sunon Wealth Match: MEC0251V3-000U-A99 Series (Equivalently rated 12025 dual ball frame profiles designed for cabinet air extraction applications).
