What is the Dell AC950EF-00?

The AC950EF-00 is Dell's 950 W hot-plug switching power supply, the unit behind service part 0WGCH4: universal 100-240 V AC input, a +12 V main rail rated 79.16 A plus -12 V and +12 VSB standby rails, 950 W total maximum, 80 PLUS Gold efficiency. It slides into a Dell PowerEdge-style power bay on a gold-finger edge connector, locks with the blue catch behind the translucent handle, and feeds from a standard IEC C14 socket. The record covers 2 units, pulled working, sold with a 3-month warranty. All 22 photos and 2 videos below show these exact units.

3 min readContent reviewed

Part details

AC950EF-00, as printed on the Dell nameplate
Field Value
Dell model AC950EF-00
Dell part number DP/N 0WGCH4 (CN-0WGCH4-ABW00)
API P/N / customer ID FSF068 / 240G2
AC input 100-240 V~, 50/60 Hz, 13.0-6.5 A
DC output +12 VDC 79.16 A, -12 VDC 0.5 A, +12VSB 5.0 A
Total power 950 W max
Efficiency 80 PLUS Gold
AC inlet IEC C14, "950W" moulded into the shell
Output connection Gold-finger edge connector, hot-plug bay
Cooling Twin 60 mm fans (Foxconn on one unit, Protechnic on the other)
Manufacturer ACBEL Electronic (Wuhan) Co., Ltd, made in China
Approvals cRUus, IEC 60950-1, IS 13252, CE, CCC, KC, TÜV Rheinland, EAC, BIS R-41035866, RoHS
Quantity 2 units, pulled working, 3-month warranty
Shipping weight 2-2.5 kg
Scroll sideways to see the full table.

All electrical values are read directly from the Dell nameplates in the photo set; each unit carries a factory test box stamped HIPOT OK / GND CONT OK.

Where 0WGCH4 fits and what to check before swapping

The 0WGCH4 part number is Dell's 950 W hot-plug supply from the PowerEdge server line, so the practical compatibility question is whether the target chassis takes the same sled: same edge-connector footprint, same handle cut-out, same fan-side airflow direction. The label answers the electrical half — any chassis expecting a Dell 950 W Gold unit will list 0WGCH4 or one of its cross-references on its own power label. Before pulling the old unit, note which of the two fans faces the intake on your sled; this pair came from different production runs and even carries different fan vendors (Foxconn on one, Protechnic dated 2019 on the other), which is normal for this part and does not change the fit. Hot-swap procedure is the usual: slide the blue catch to release, pull by the translucent handle, and seat the new unit until the latch clicks — the edge connector carries both power and the management-bus signals, so no separate cable work is involved. KOEED's Dell stock also covers storage spares such as the ST900MP0026 900 GB SAS drive.

Photos and video

All images below are original KOEED warehouse photos. Click any photo to view it full size.

Two Dell 950W PSUs nameplate side
The pair together, nameplate side up: both carry the same Dell 950 W label set — AC 100-240 V input, the DC rail table, 80 PLUS Gold and the 0WGCH4 part block.

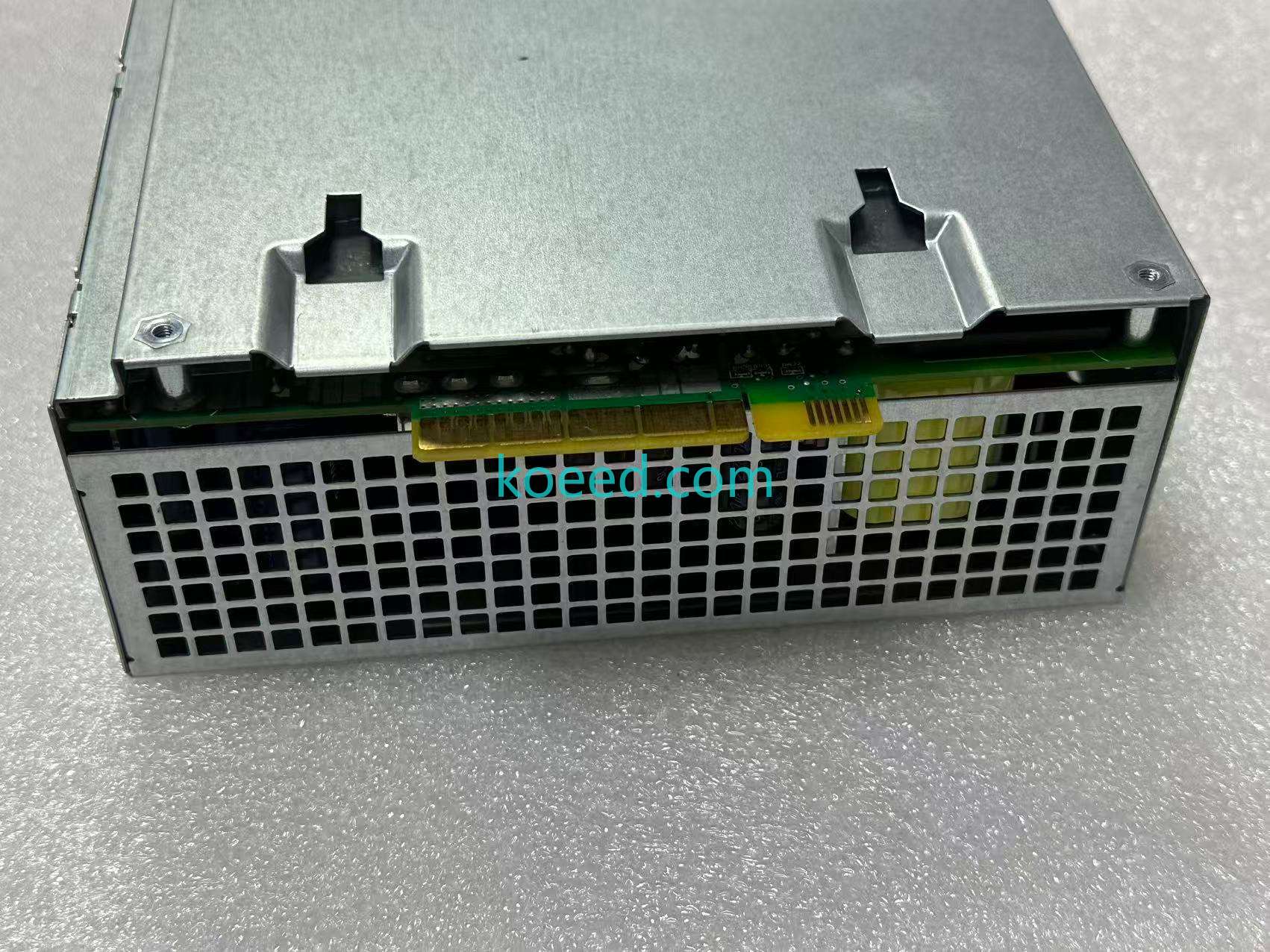

950W output end with edge connector
The output end: gold-finger edge connector and the small management tab that seat into the server's power bay.

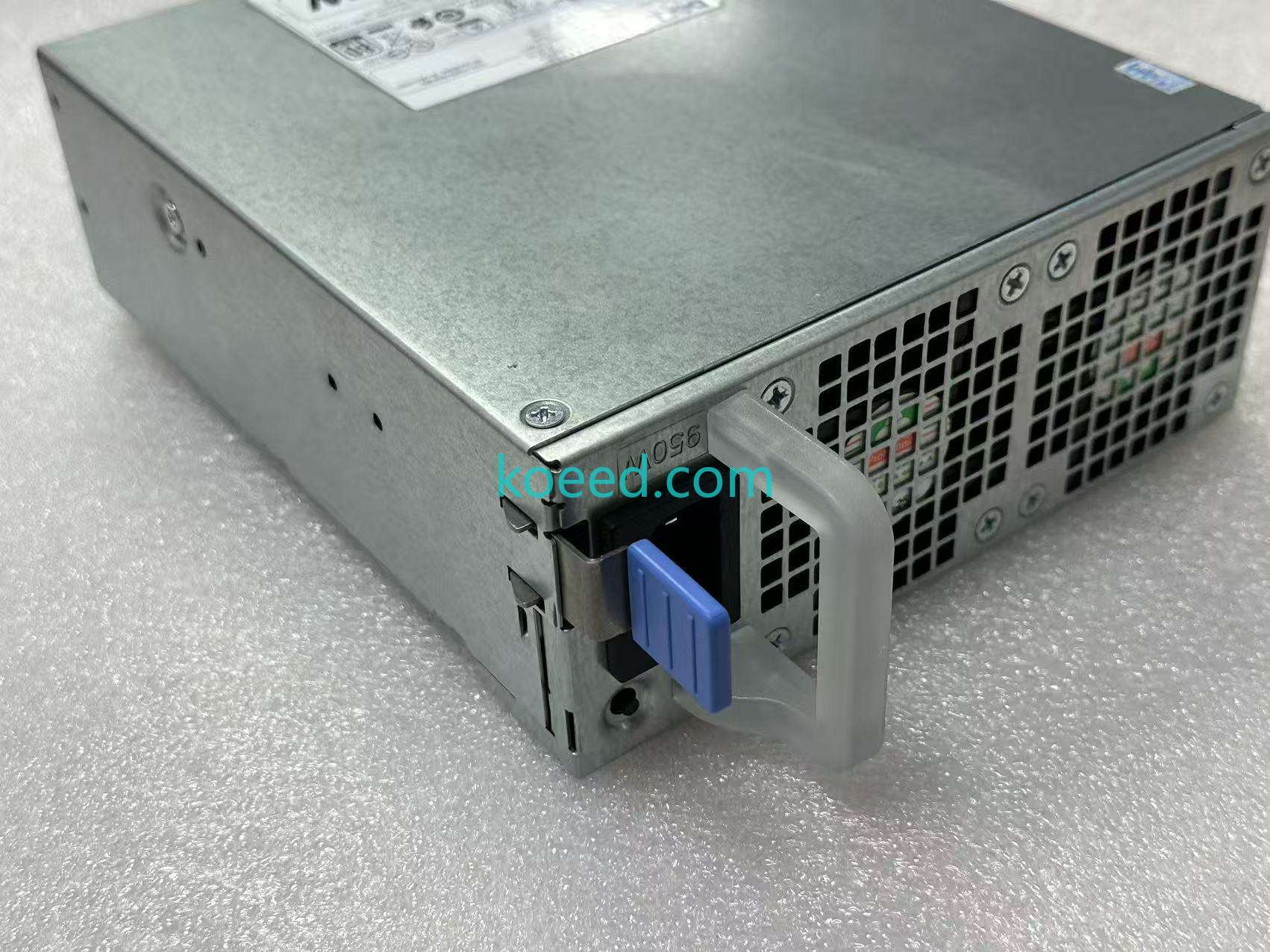

AC950 handle and catch
The translucent release handle and blue catch — the grip that seats the supply and the latch that locks it.

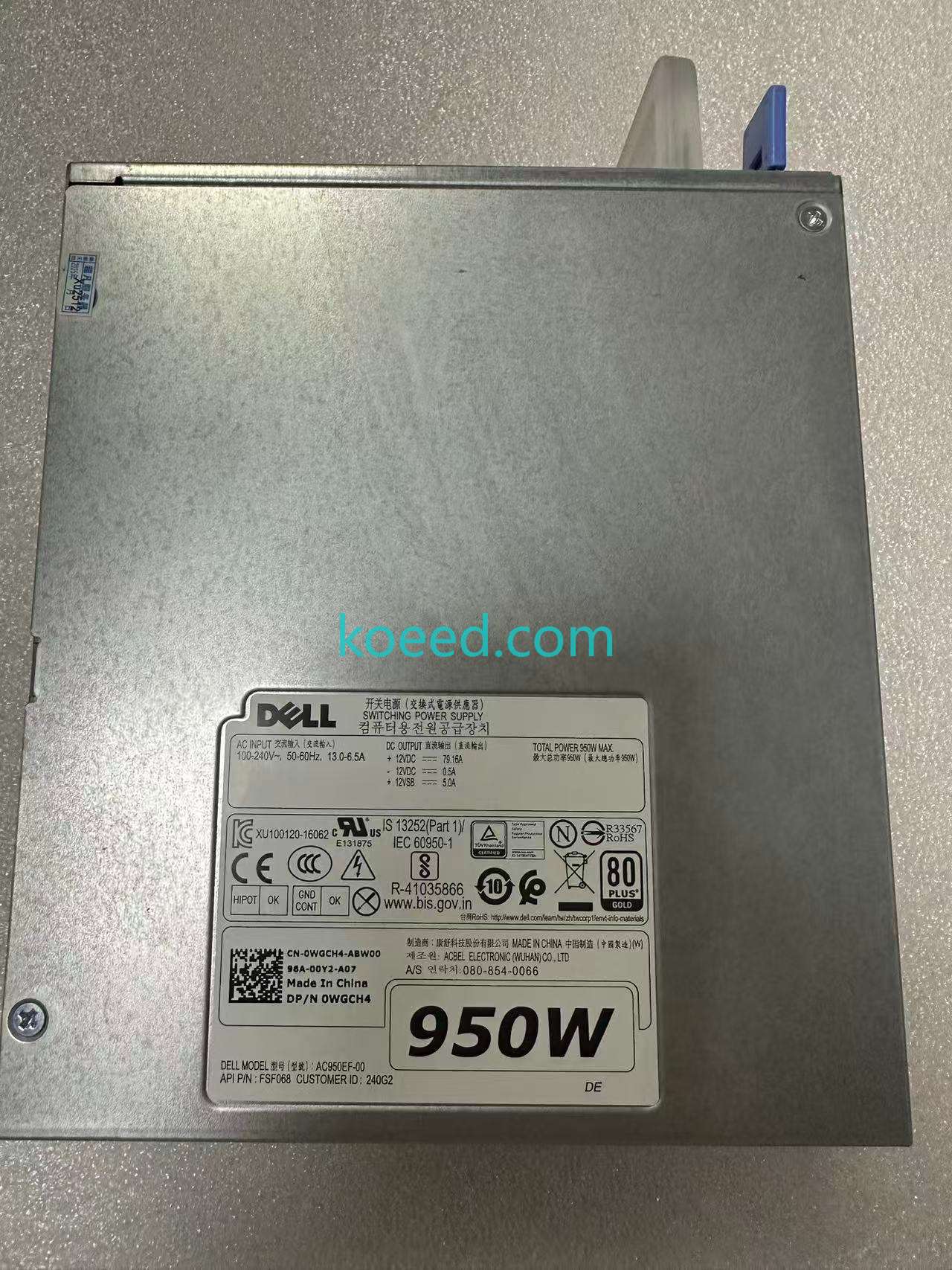

Dell 950W nameplate close-up
The first unit's nameplate at full size: DELL MODEL AC950EF-00, DP/N 0WGCH4, the full rating block and the approval row.

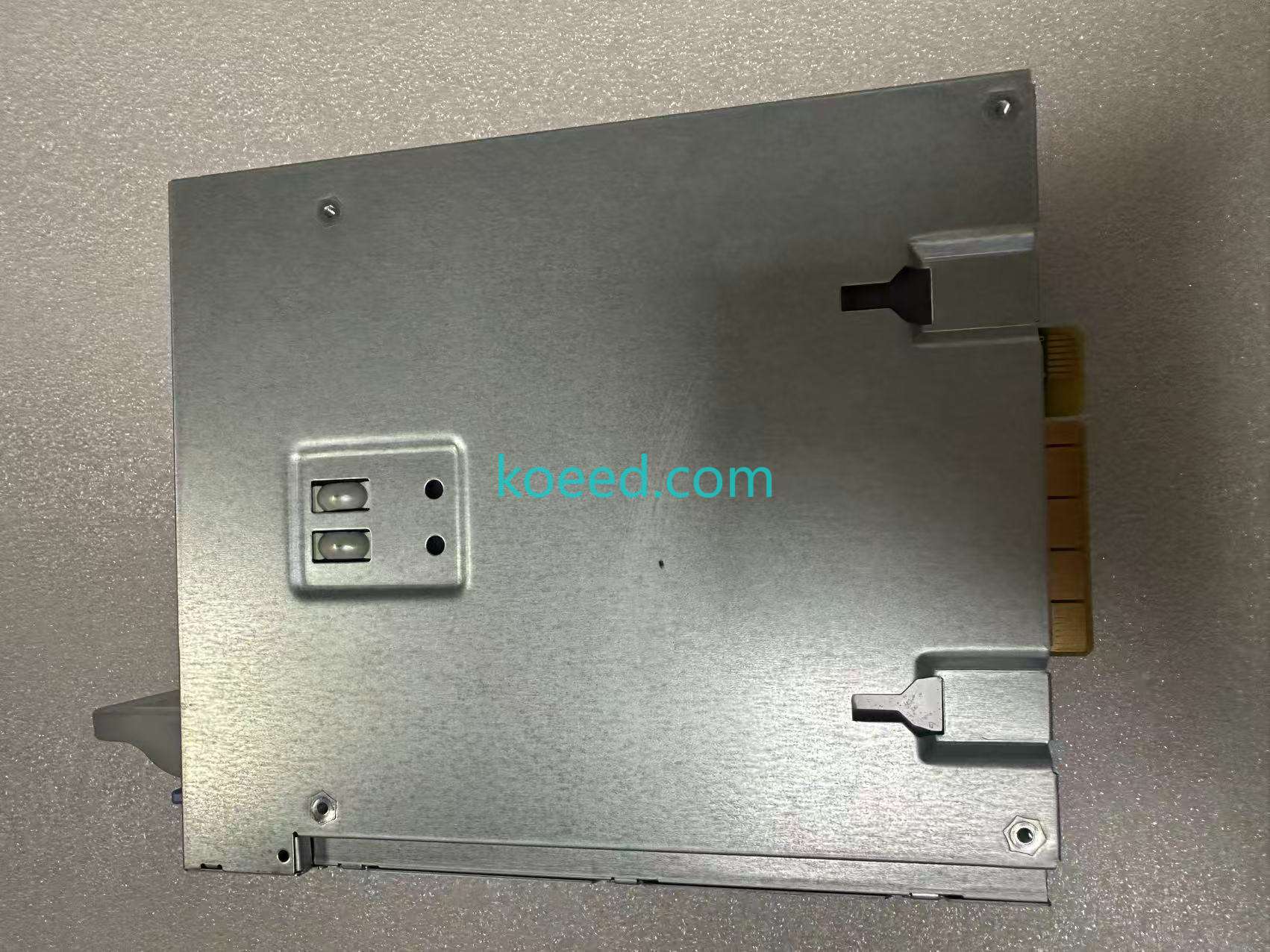

AC inlet cover plate
The opposite face: the IEC inlet cover plate and the edge-connector side of the second unit.
950W AC inlet and handle
The AC end at close range: the C14 inlet under the handle, with "950W" moulded into the shell beside it.
Foxconn fan badge behind grille
Behind the fan grille on the first unit: the Foxconn PVA060G12N badge on the 60 mm blower.
Second unit nameplate ACBEL
The second unit's nameplate in full: same AC950EF-00 model and ratings, manufacturer line reading ACBEL Electronic (Wuhan) Co., Ltd, serial block 96A-00Y2-A07.

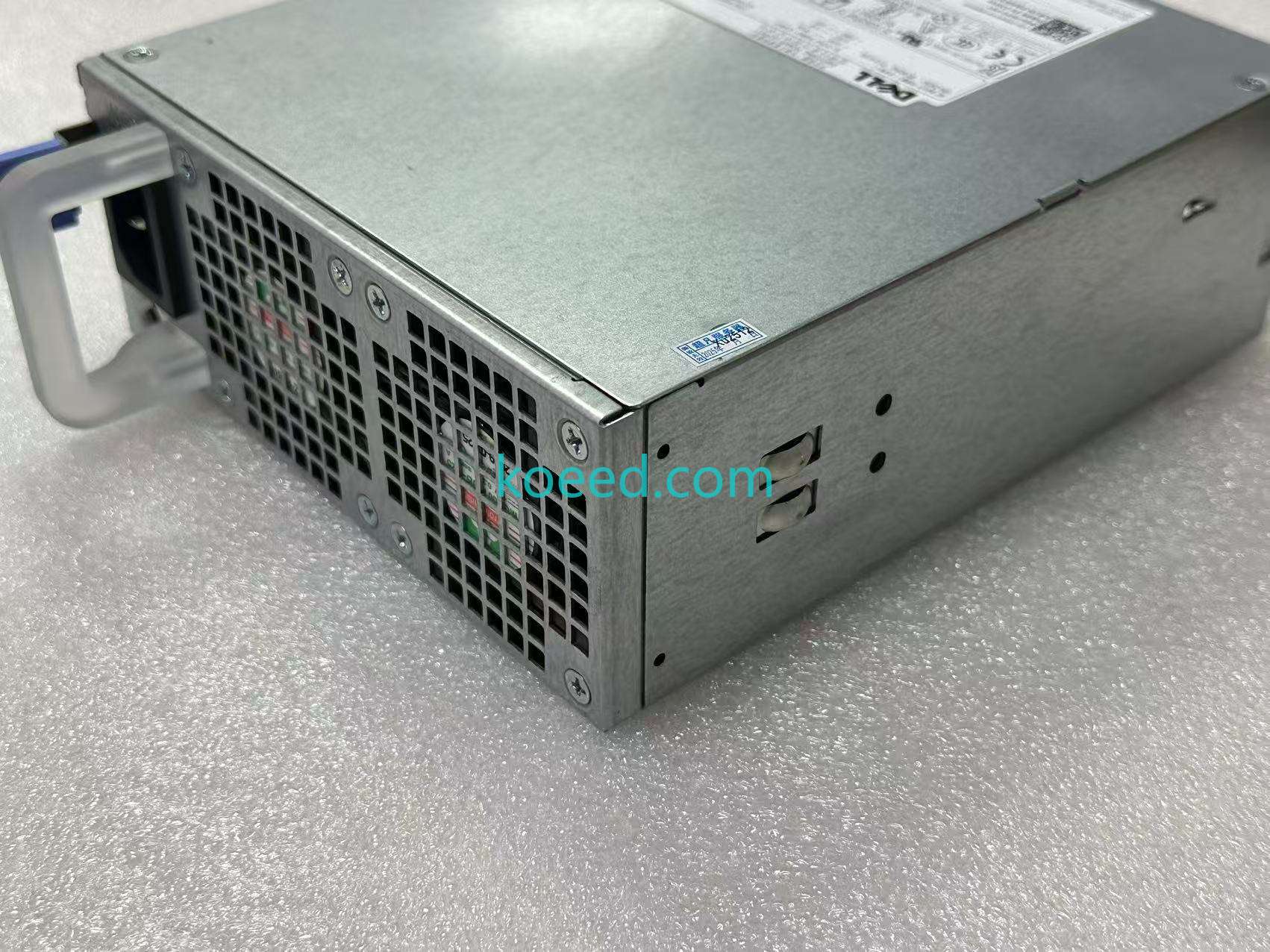

Second PSU angled view
Angled view of the second unit: clean zinc shell, both fan grilles and the handle side intact.
Second unit inlet cover
The second unit's inlet-side cover plate — two pressed studs over the C14 aperture and the connector edge beyond.
Output connector close-up second unit
Output edge of the second unit: gold fingers and the green management board visible in the slot housing.

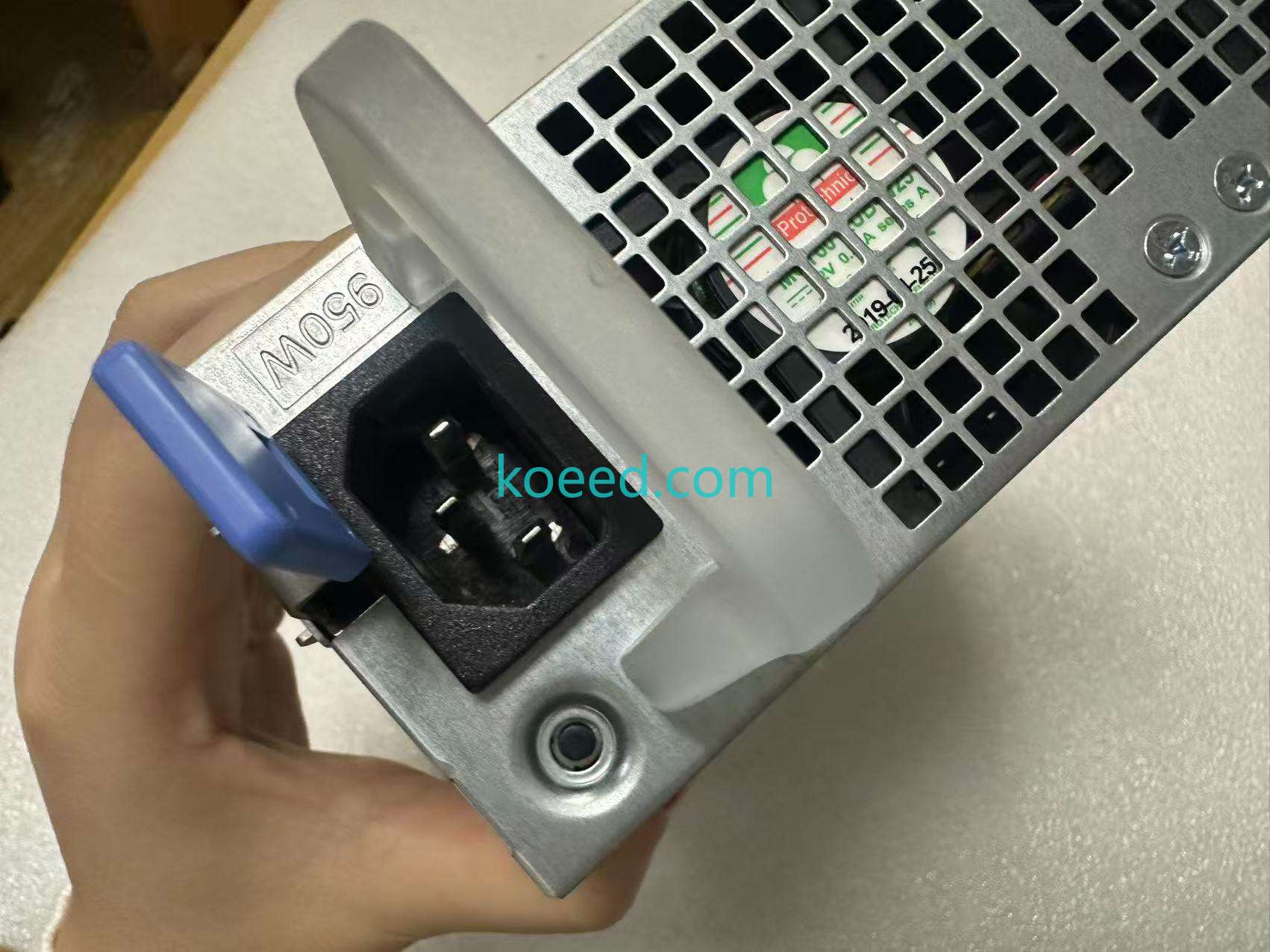

950W inlet and catch held
Hand-held input end of the second unit: C14 inlet, 950W moulding, and the blue catch slid to the release position.

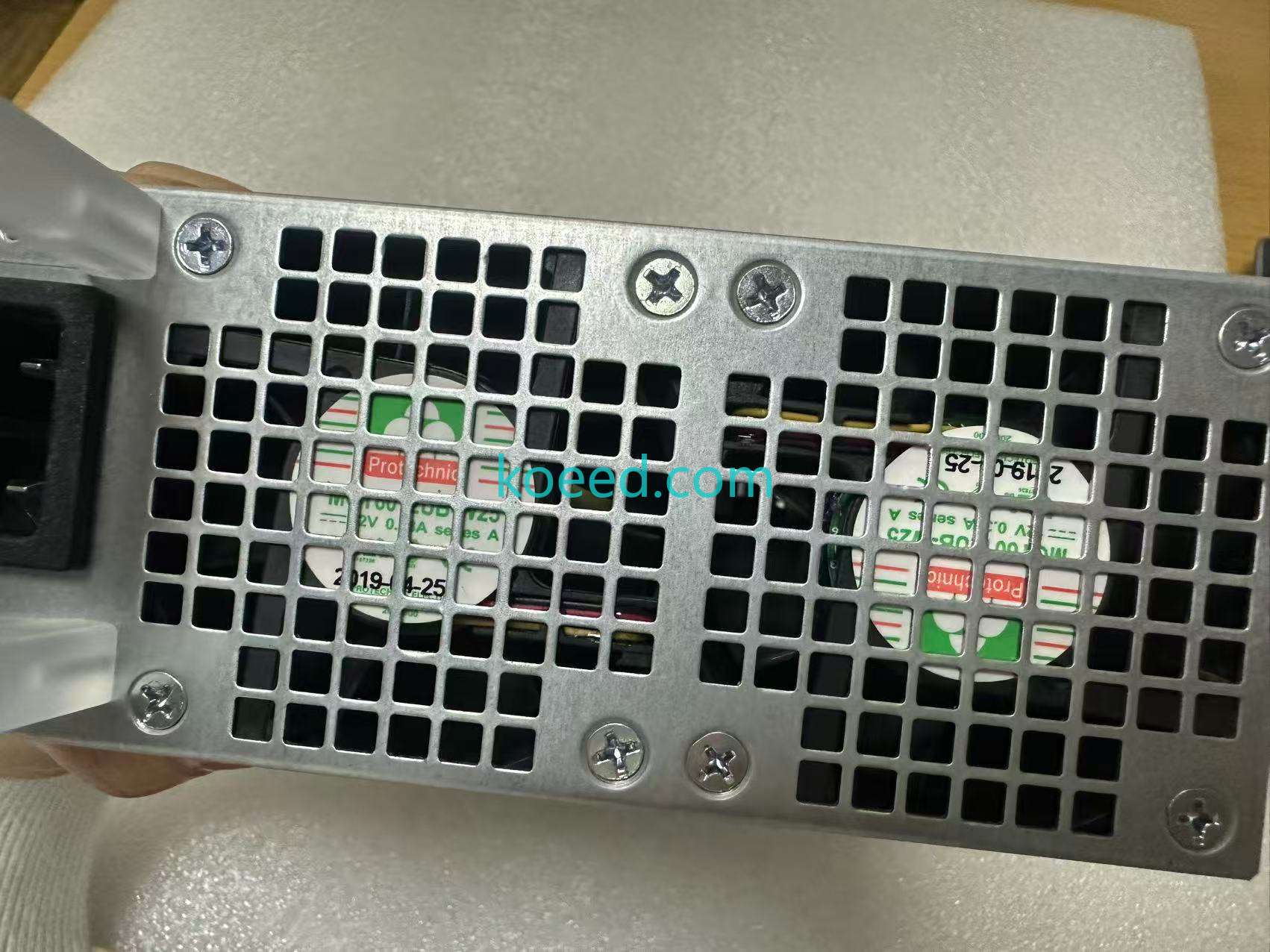

Protechnic fan badges
The second unit's fans: Protechnic badges dated 2019-1-25 behind the twin grilles — the fan-vendor difference noted above.

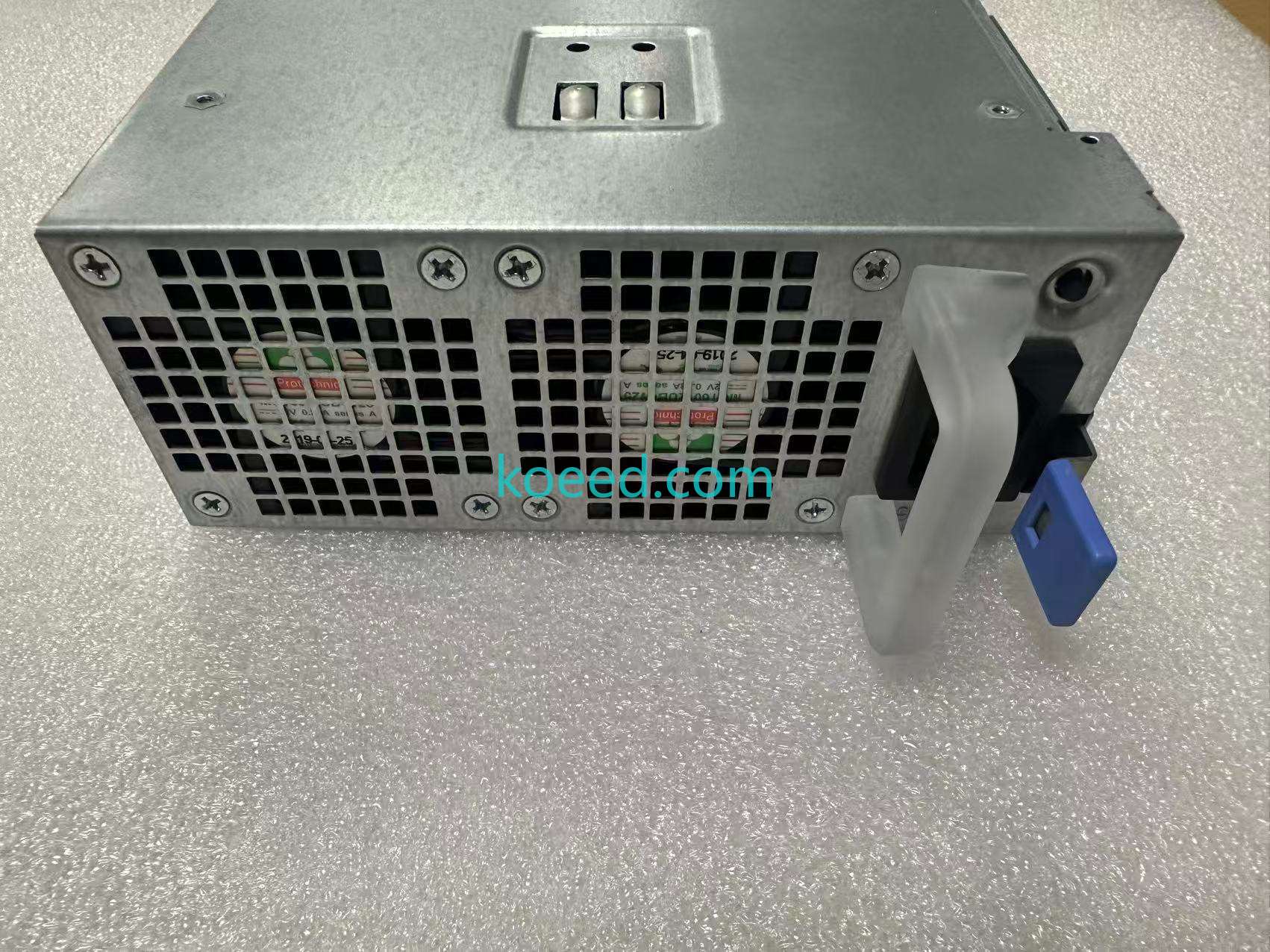

Twin fan grilles full view
Full fan-face view: the twin 60 mm grilles, handle pivot and catch hardware.
Nameplate full frame second unit
The second nameplate in full frame — ratings identical to the first, confirming the matched pair.
Second unit inlet plate angle
The second unit from the inlet corner: cover plate, connector edge and latch slot all clean.
AC inlet held close
The C14 inlet up close with the blue catch and the fan badge behind the grille in one frame.
Protechnic fans close pair
Both Protechnic badges together on the second unit — matching date codes across the pair of blowers.
Second unit full face
Full face of the second unit: grilles, handle, catch and the inlet plate — complete and undamaged.

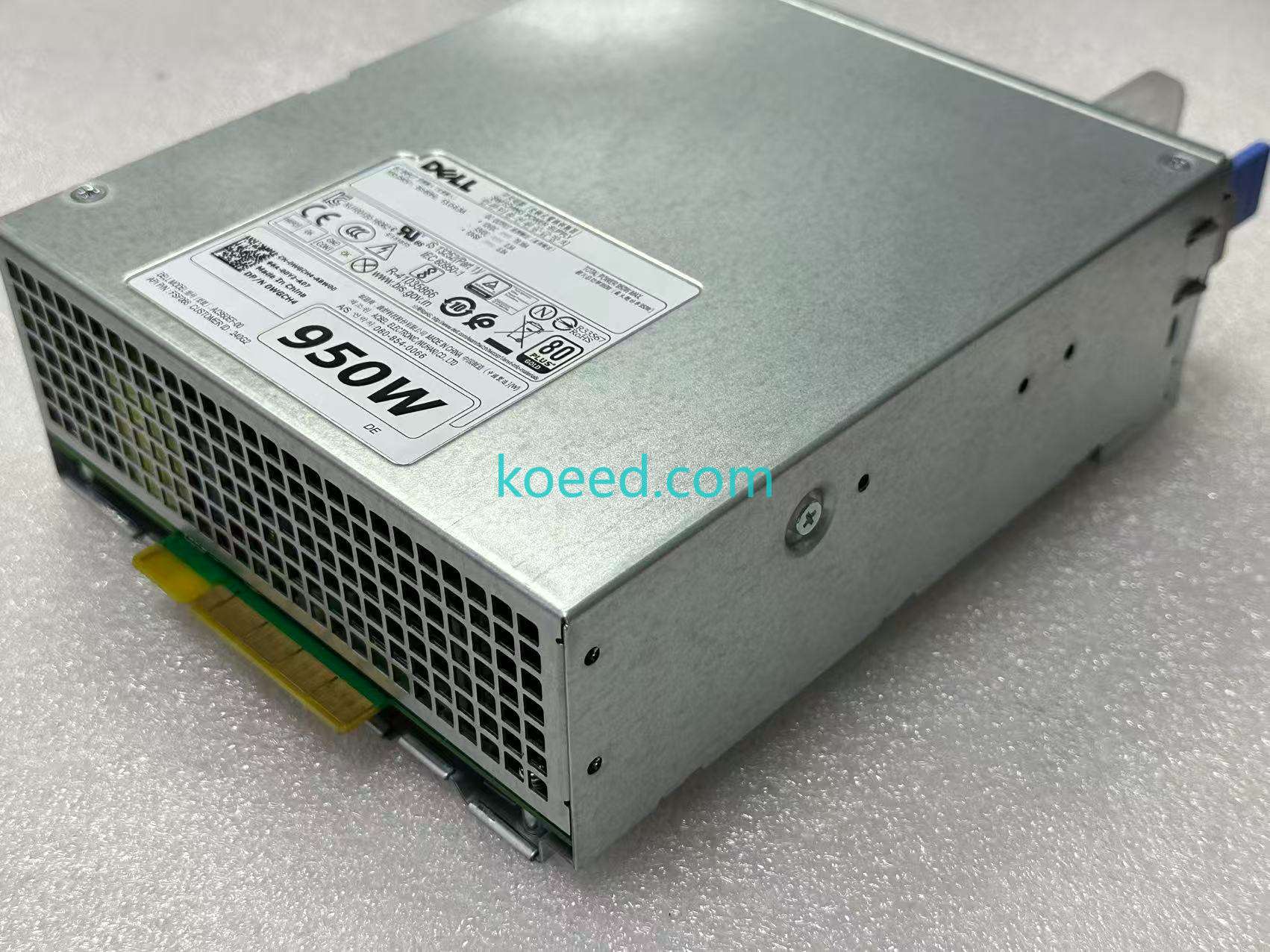

AC950EF-00 950W output side
Output-side view of the first unit with the 950 W label edge visible — the sled orientation as it slides into the bay.
Second unit side profile
Side profile of the second unit: the inlet cover plate and the cleanliness of the pulled shell.
Unit on foam output end
Closing shot: the first unit on foam, output edge forward, nameplate and grilles in one view.
Inspection video 1: the first unit as checked at the KOEED warehouse.
Inspection video 2: the second unit and connector details.
